Climate Control Assembly

Climate Control Assembly









Removal and Installation

1. Remove the floor console. For additional information, refer to Instrument Panel and Console Console - Floor.

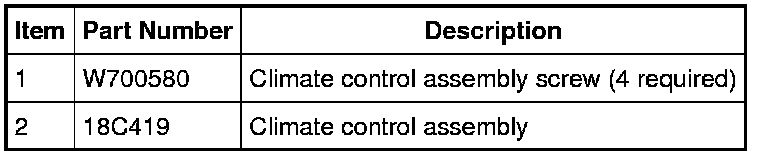

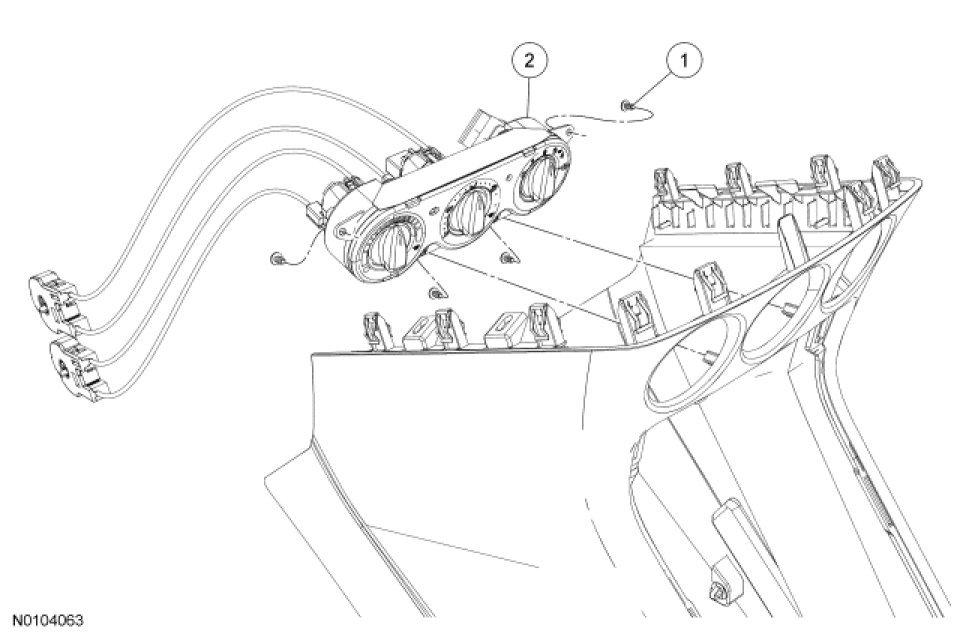

2. Remove the 4 climate control assembly screws.

3. Remove the climate control assembly.

4. To install, reverse the removal procedure.
