Toe Adjustment - Front

Toe Adjustment - Front

1. Using a suitable steering wheel holding device, lock the steering wheel in the straight ahead position.

2. Using alignment equipment and the manufacturer's instructions, measure the toe.

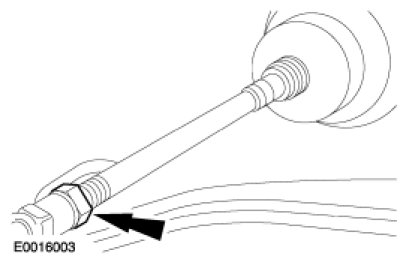

3. Loosen the tie-rod jam nuts.

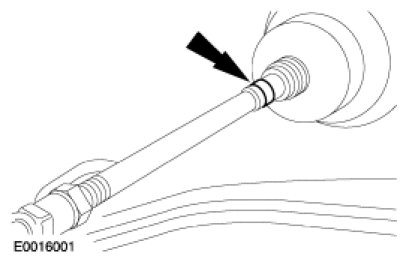

4. Remove the steering gear boot outer clamps.

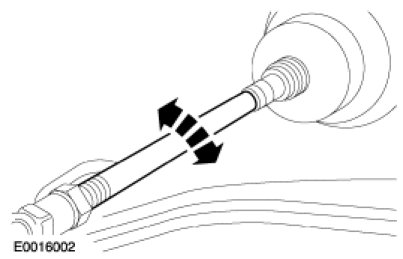

5. Rotate the tie rods as necessary to adjust the toe setting.





6. Tighten the tie-rod jam nuts to 80 Nm (59 lb-ft).





7. Install the steering gear boot outer clamps.





8. Recheck the toe settings, adjust as necessary.

9. If equipped with Advance Track(R) and Roll Stability Control (RSC(R)), calibrate the ABS module.
- Carry out the IVD Initialization sequence for the steering angle sensor. Follow the scan tool directions.
