Camshaft Position Sensor: Service and Repair

Camshaft Position (CMP) Sensor













Removal and Installation

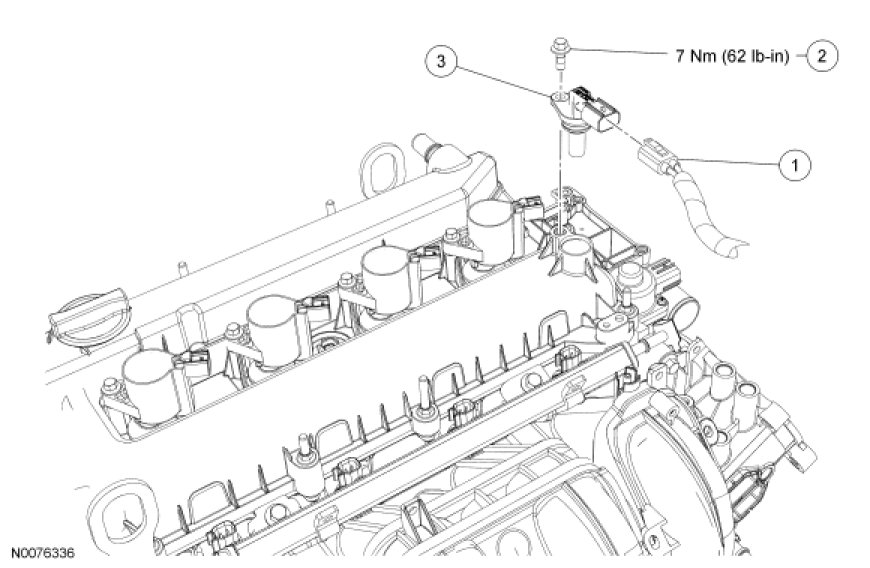

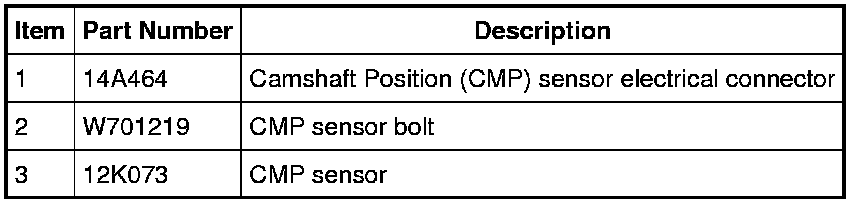

1. Disconnect the Camshaft Position (CMP) sensor electrical connector.

2. Remove the bolt and the CMP sensor.
- To install, tighten to 7 Nm (62 lb-in).

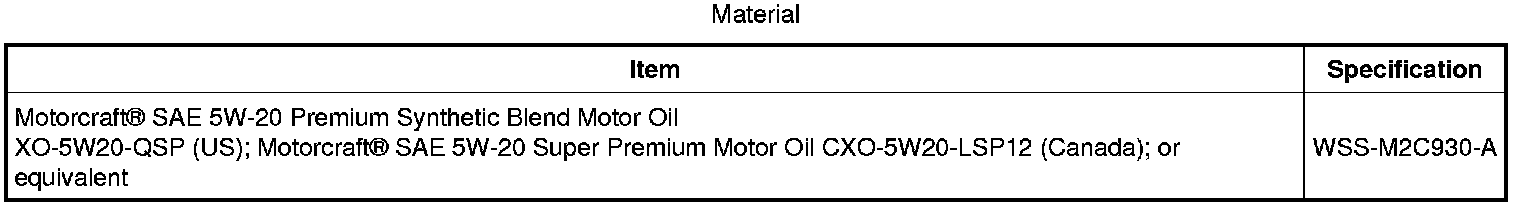

3. NOTE: Lubricate the O-ring with clean engine oil.

To install, reverse the removal procedure.
