Ignition Switch: Service and Repair

Ignition Switch

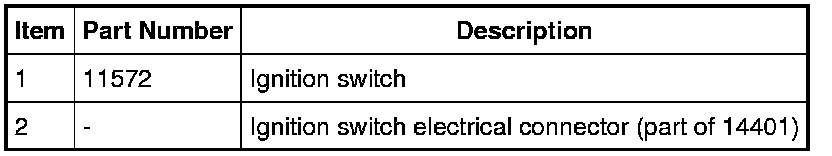

Removal and Installation

1. Remove the steering column opening trim panel. For additional information, refer to the Instrument Panel - Exploded View in Instrument Panel and Console Instrument Panel - Exploded View.

2. Remove the upper and lower steering column shrouds. For additional information, refer to Steering Column Steering Column Shroud.

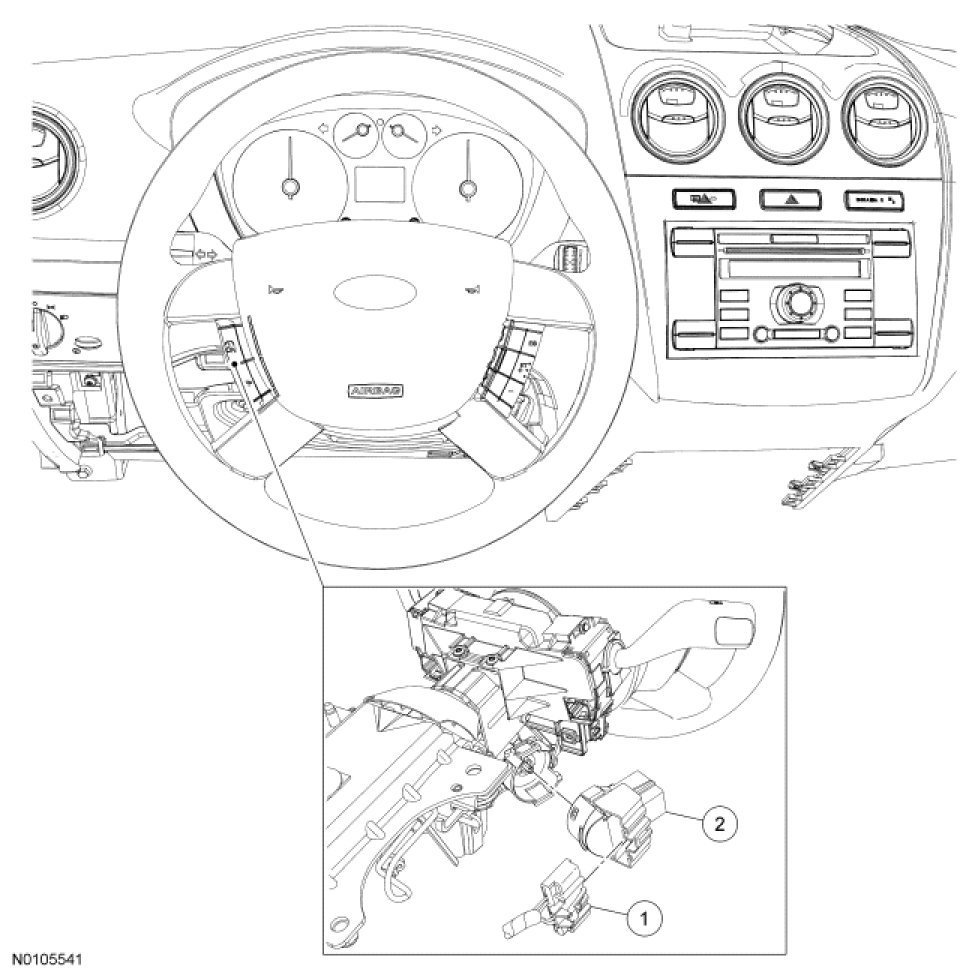

3. Disconnect the ignition switch electrical connector.

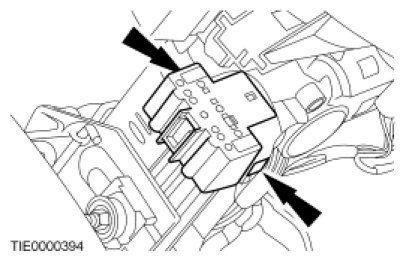

4. Release the 2 locking tabs and remove the ignition switch.





5. To install, reverse the removal procedure.
