Power Window Switch: Service and Repair

Window Control Switch









Removal and Installation

1. Remove the rear section of the floor console. For additional information, refer to Console - Floor in Instrument Panel and Console Console - Floor.

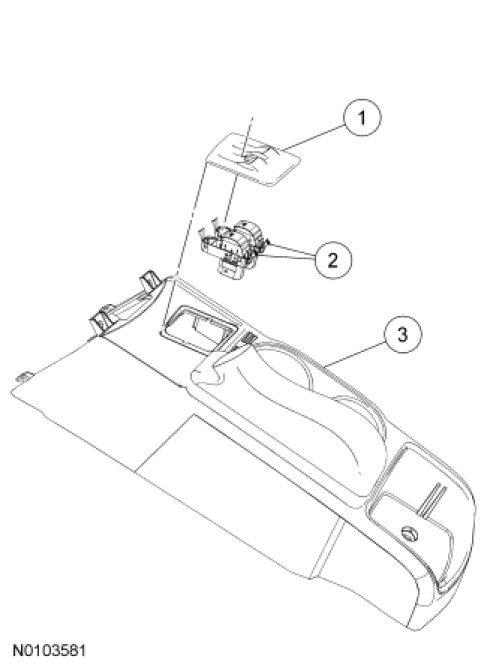

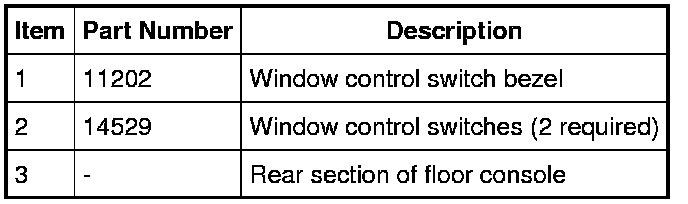

2. The power window control switch(es) are each locked into the switch bezel with 4 small tabs. To remove the switch(es), unlock the tabs and pull the switch toward the inside of the console.

3. To install, reverse the removal procedure.
