Powertrain Control Module (PCM): Notes

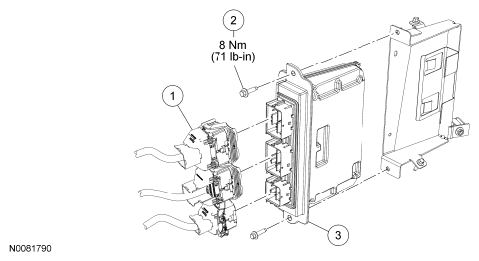

Fig 1: Powertrain Control Module Replacement Components With Torque Specifications
G06292674Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 14A464 PCM electrical connector (3 required)
2 W505423 PCM bolt (2 required)
3 12A650 PCM
