Power Trunk / Liftgate Control Module
>>
C4174A Liftgate/Trunk Module (LTM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

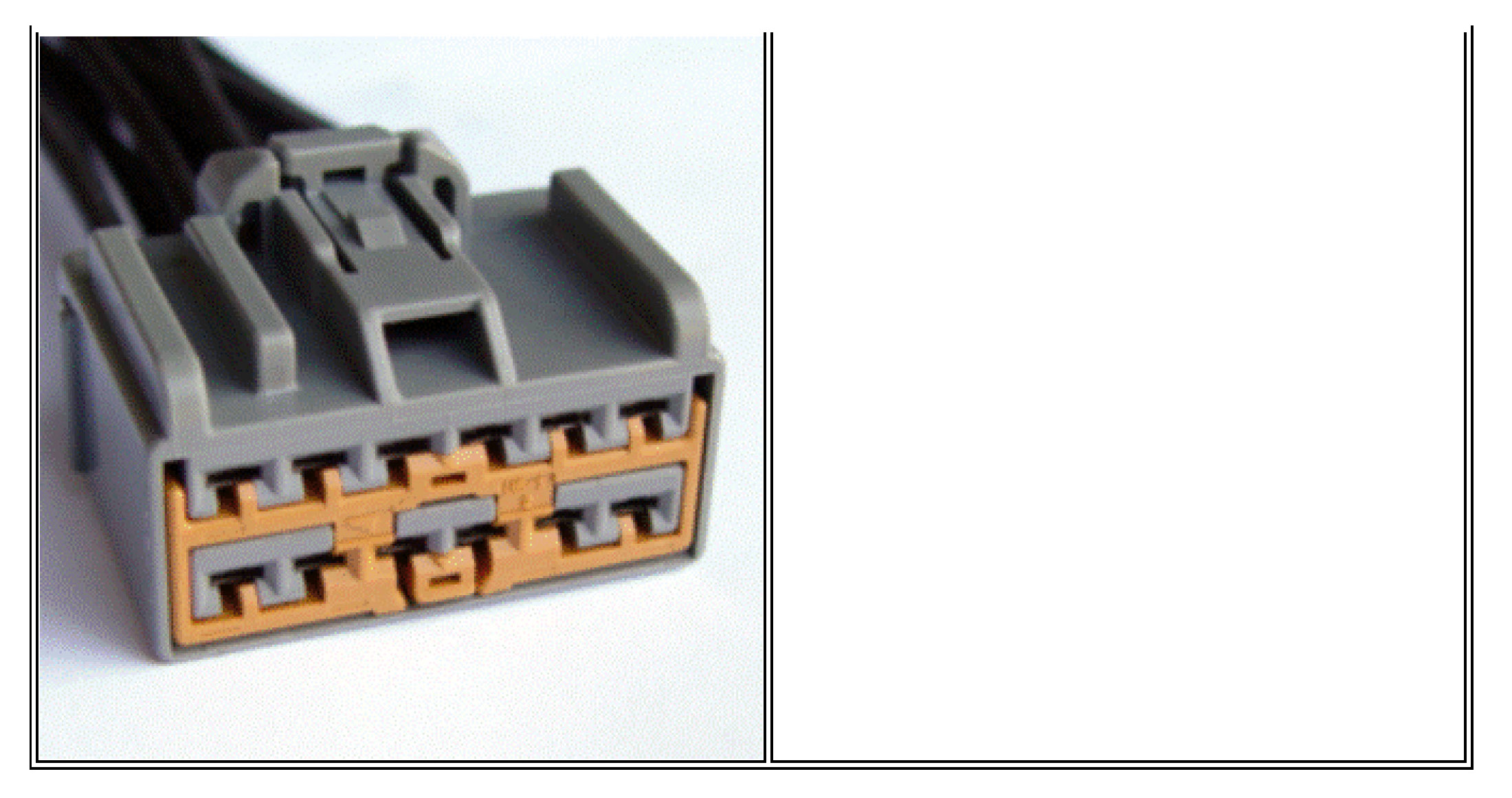

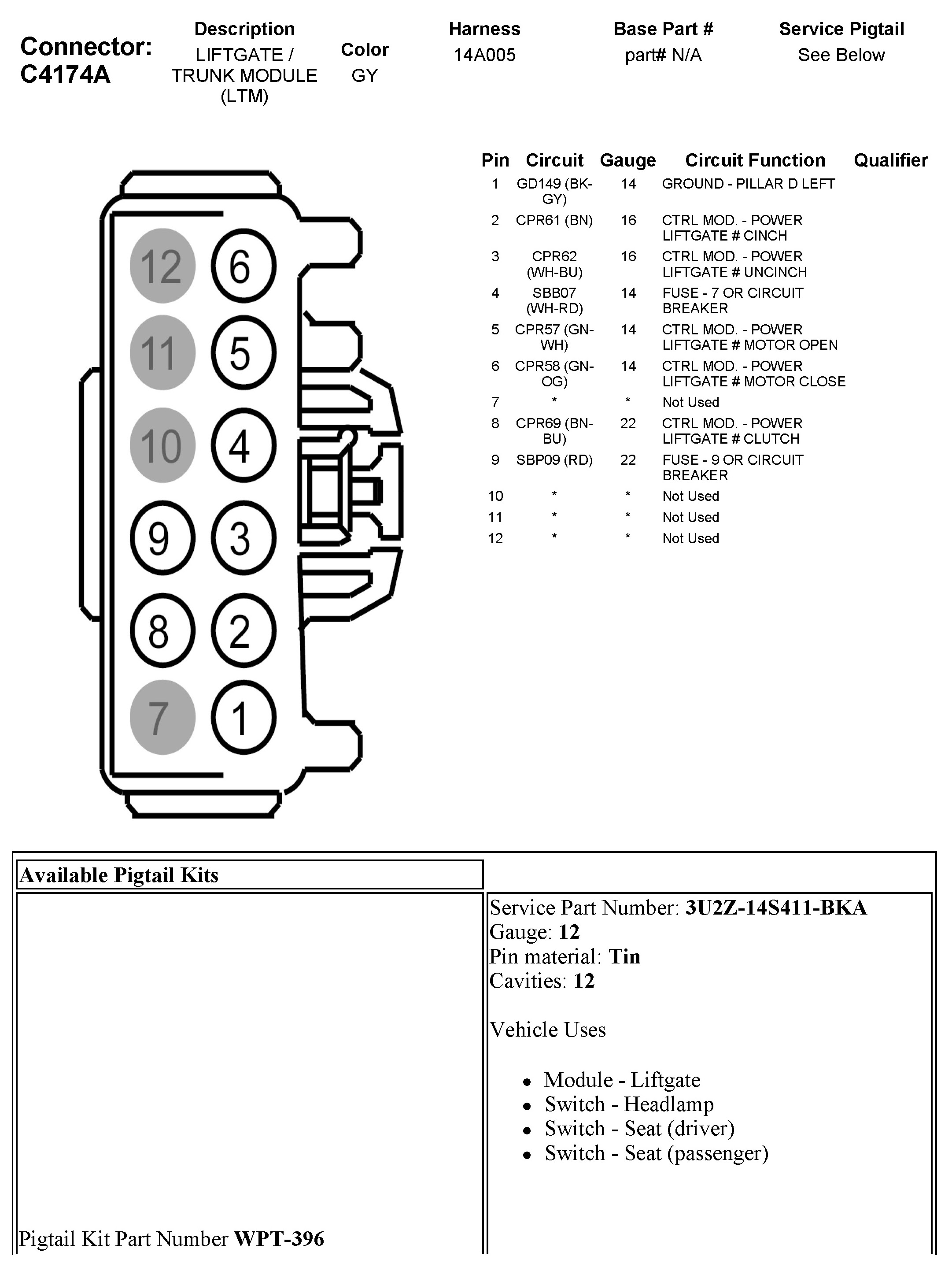

C4174A Liftgate/Trunk Module (LTM)
