Oil Pressure Sensor: Service and Repair

Engine Oil Pressure (EOP) Switch













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

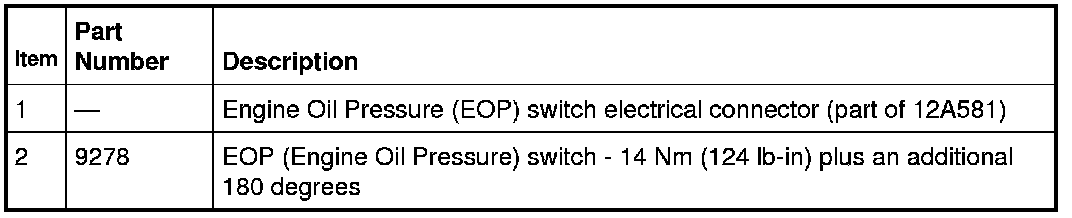

2. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

3. Remove the EOP (Engine Oil Pressure) switch.
- To install, tighten to 14 Nm (124 lb-in) plus an additional 180 degrees.


4. To install, reverse the removal procedure.

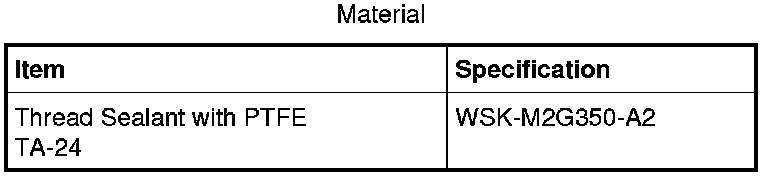

- Apply thread sealant with PTFE to the EOP (Engine Oil Pressure) switch threads prior to installation.
