Test HD: Misfire Detection Monitor

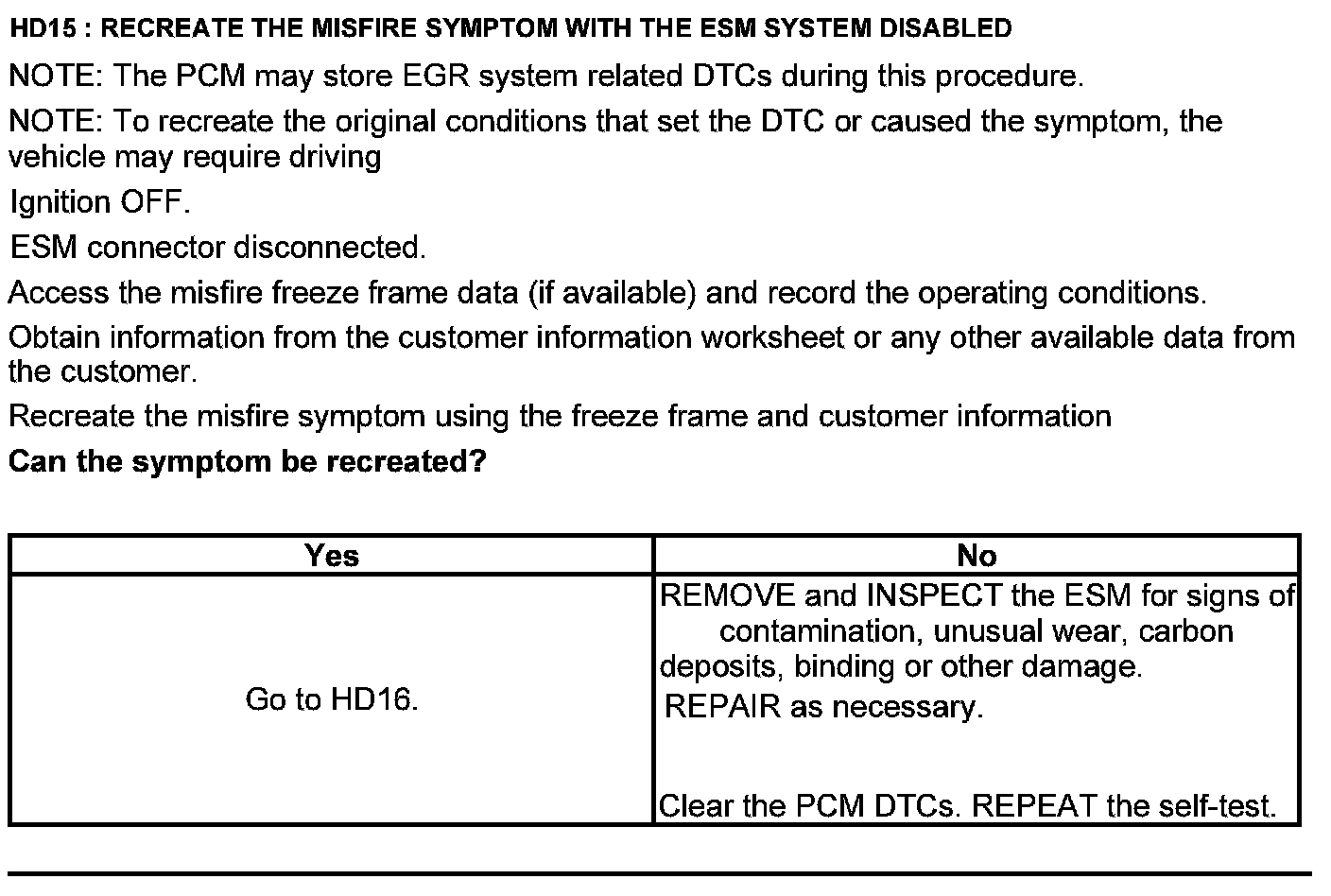

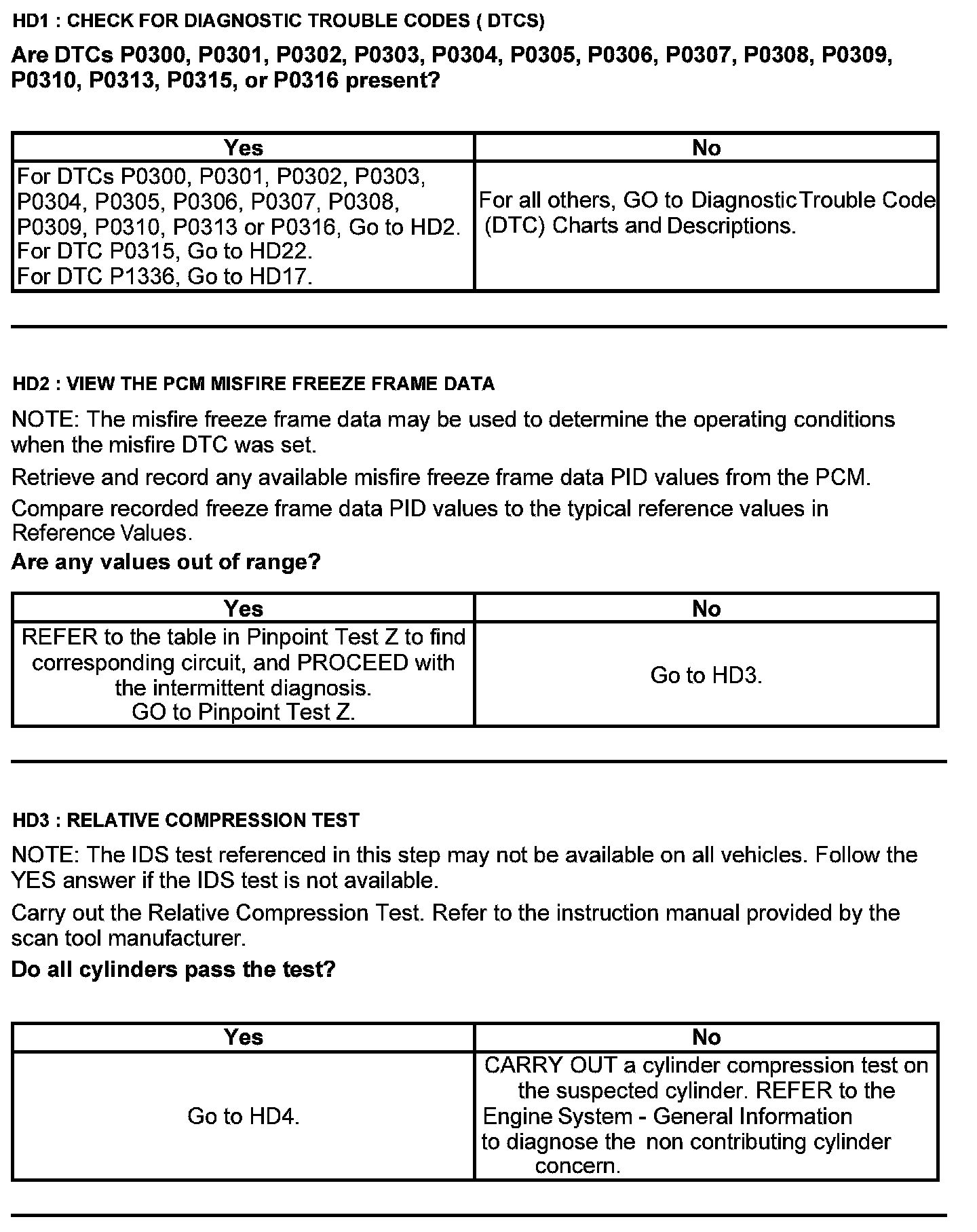

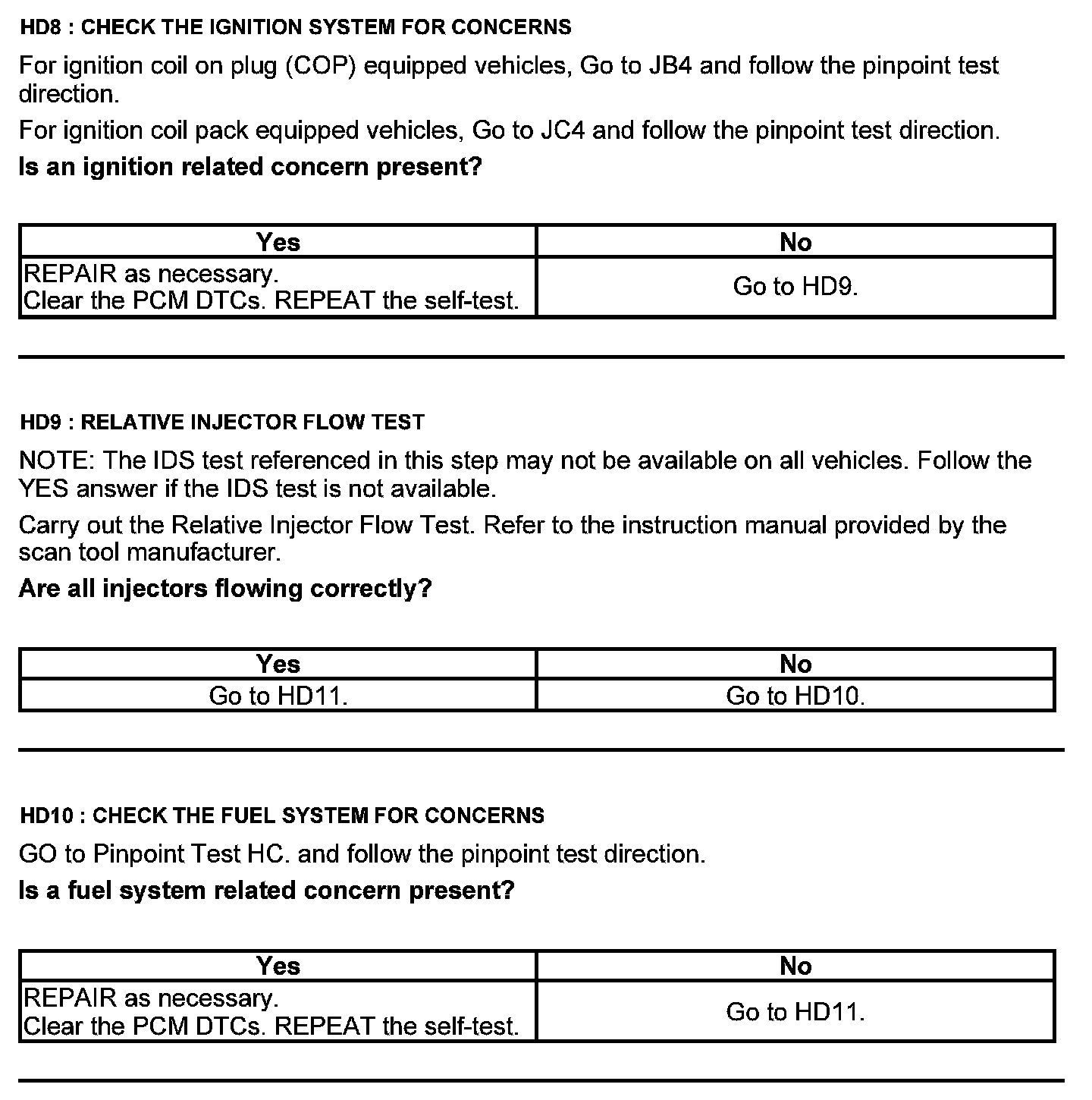

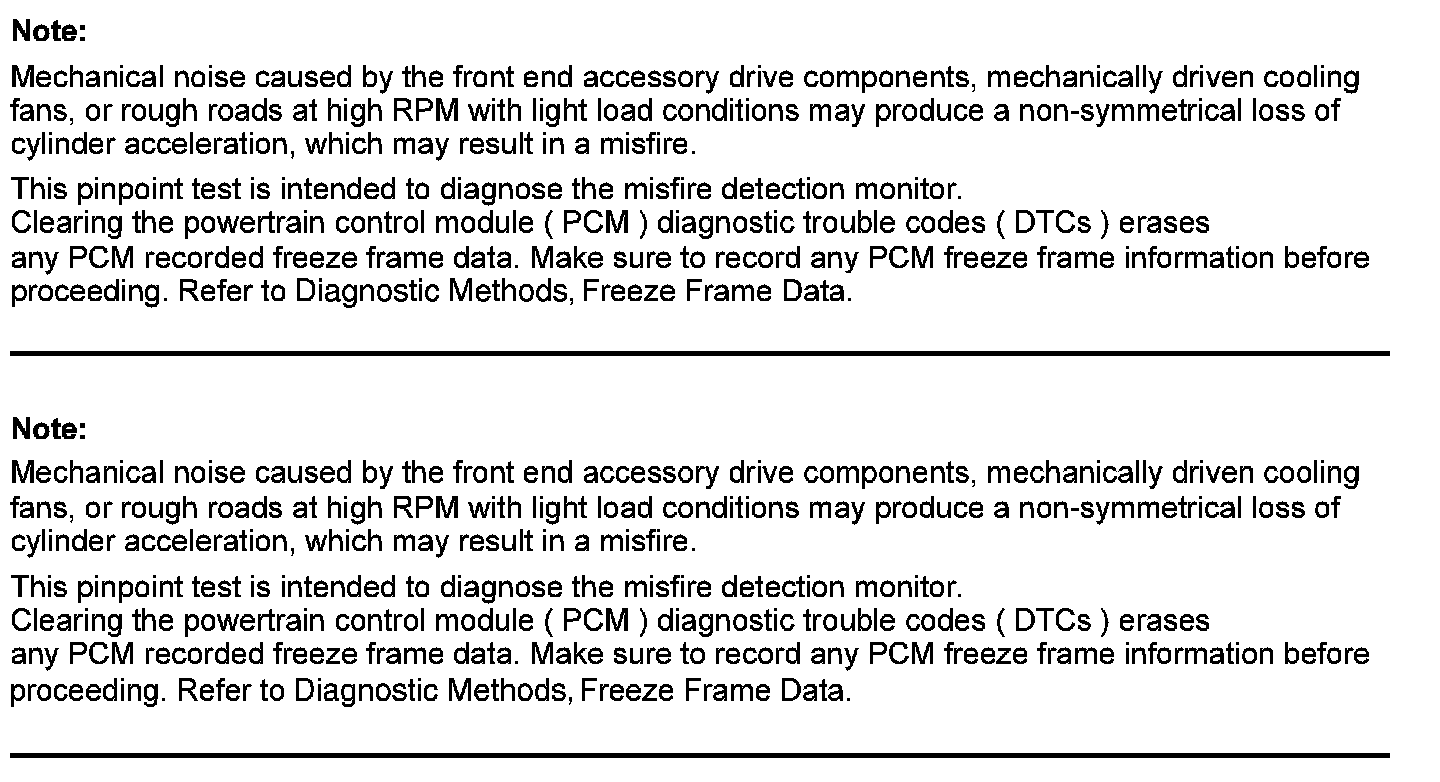

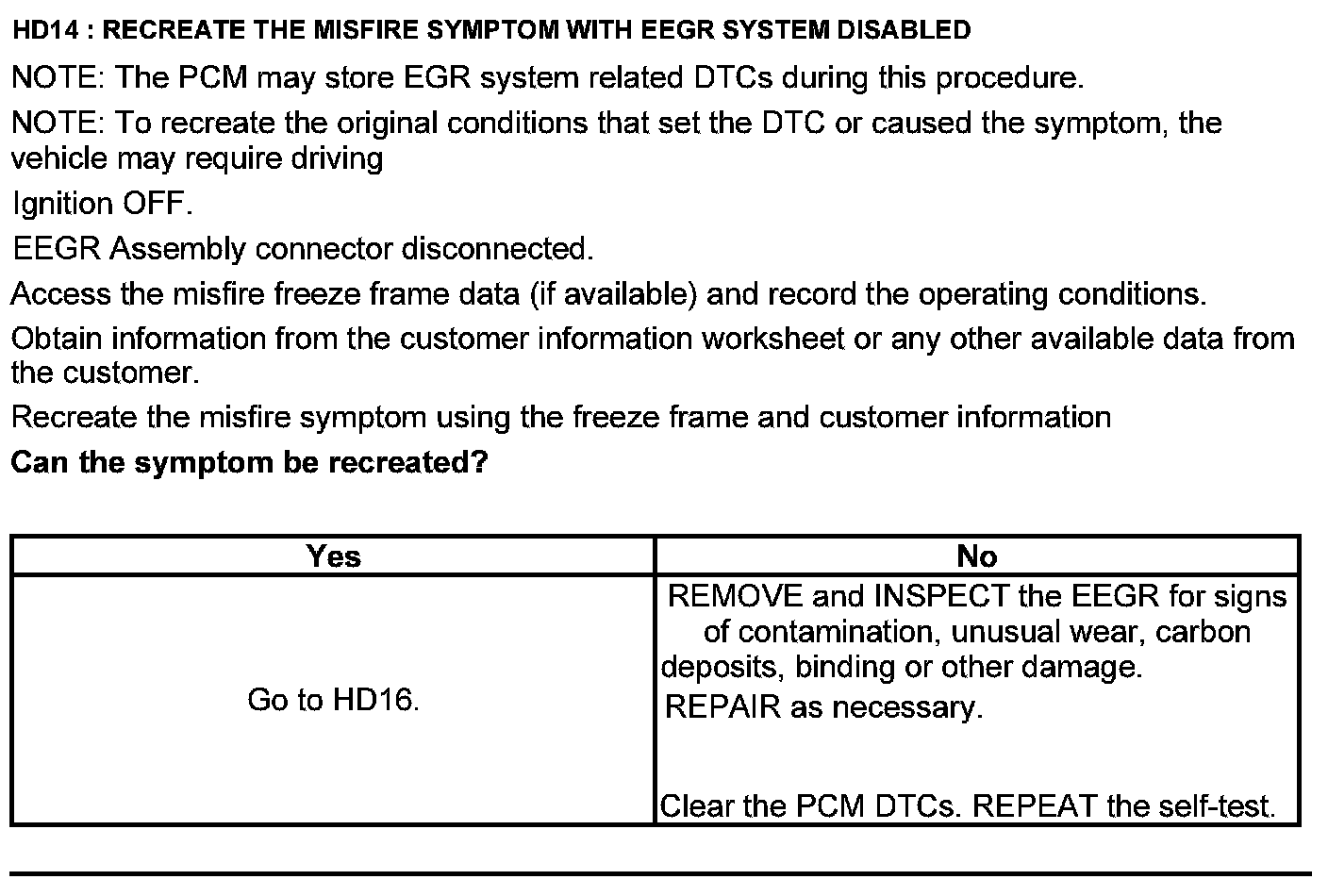

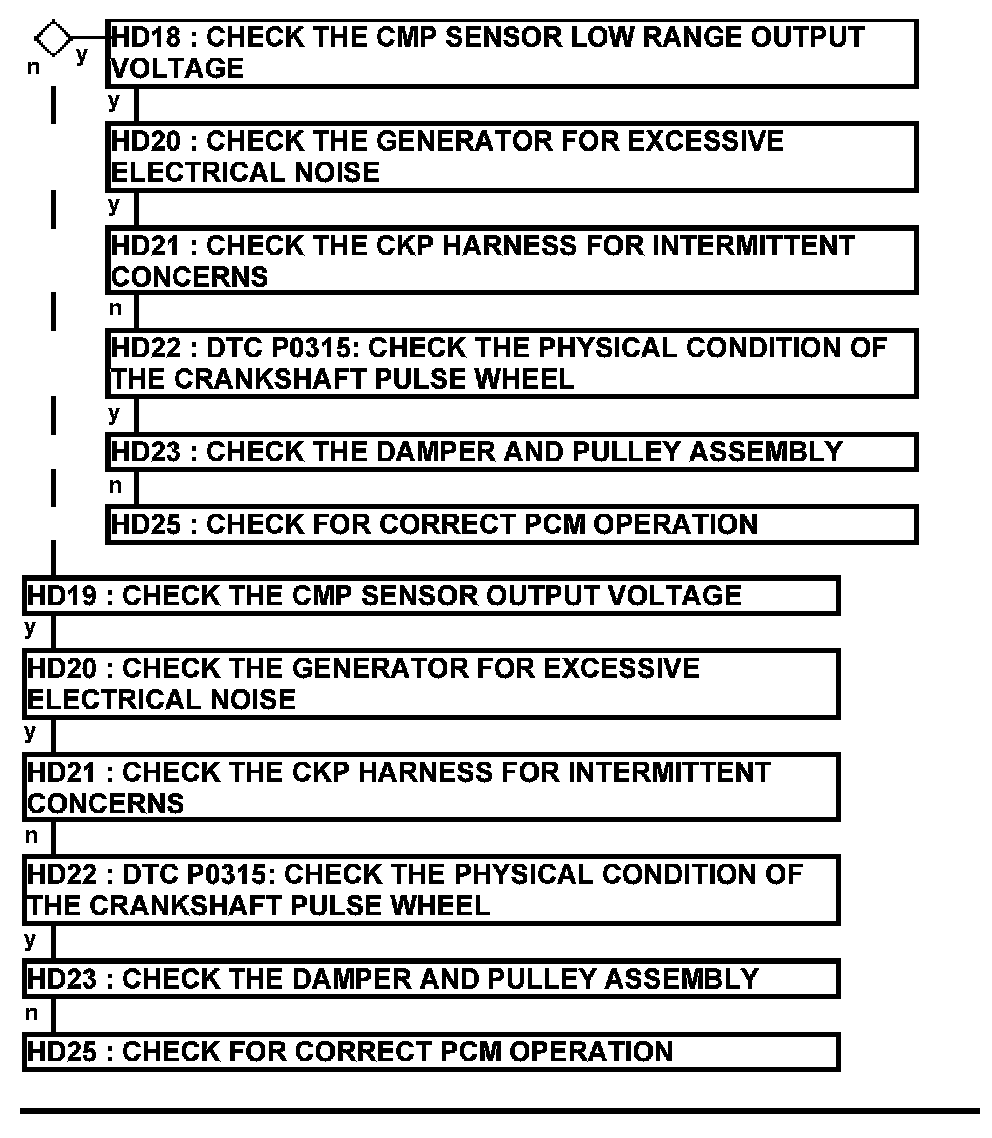

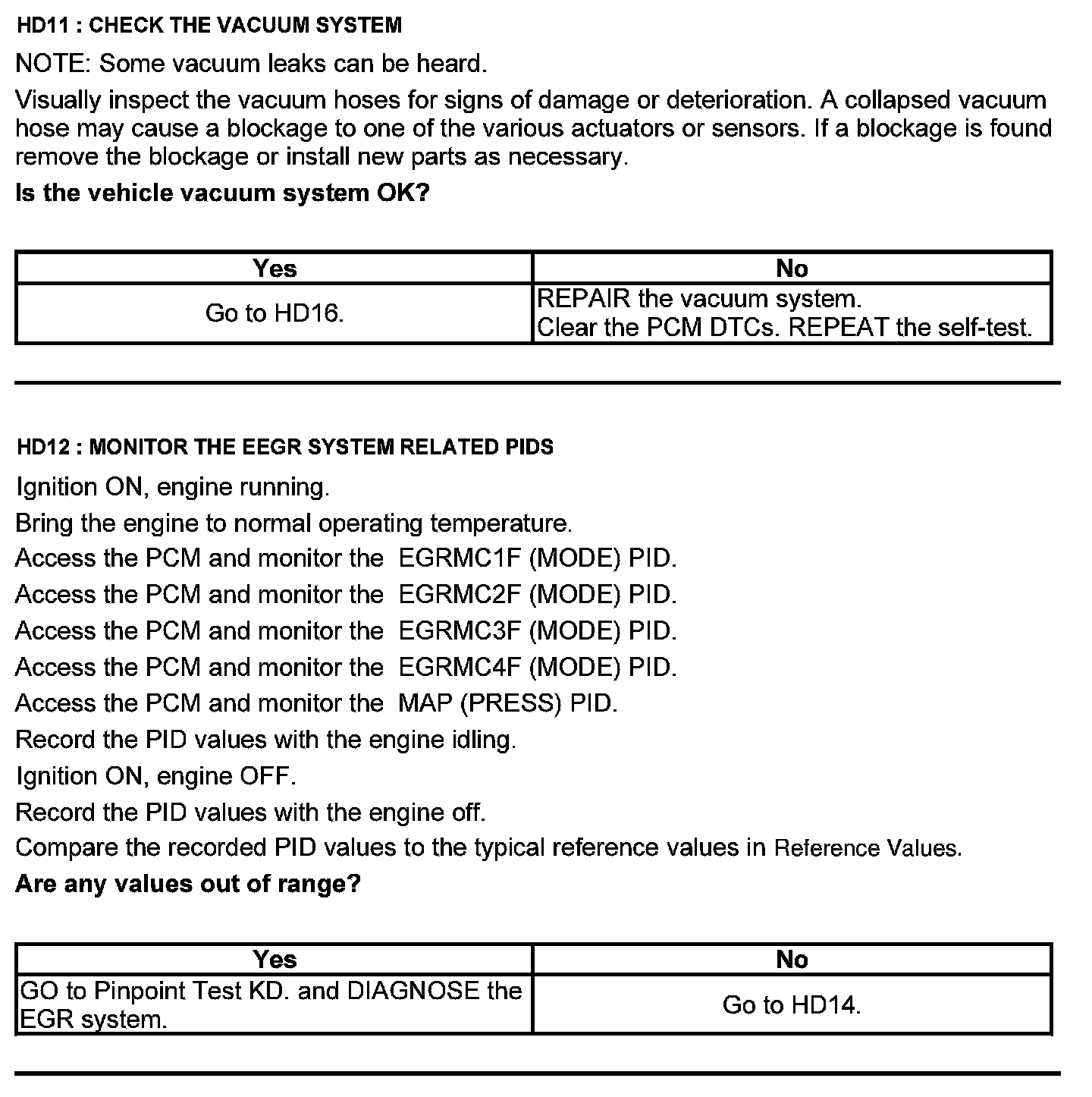

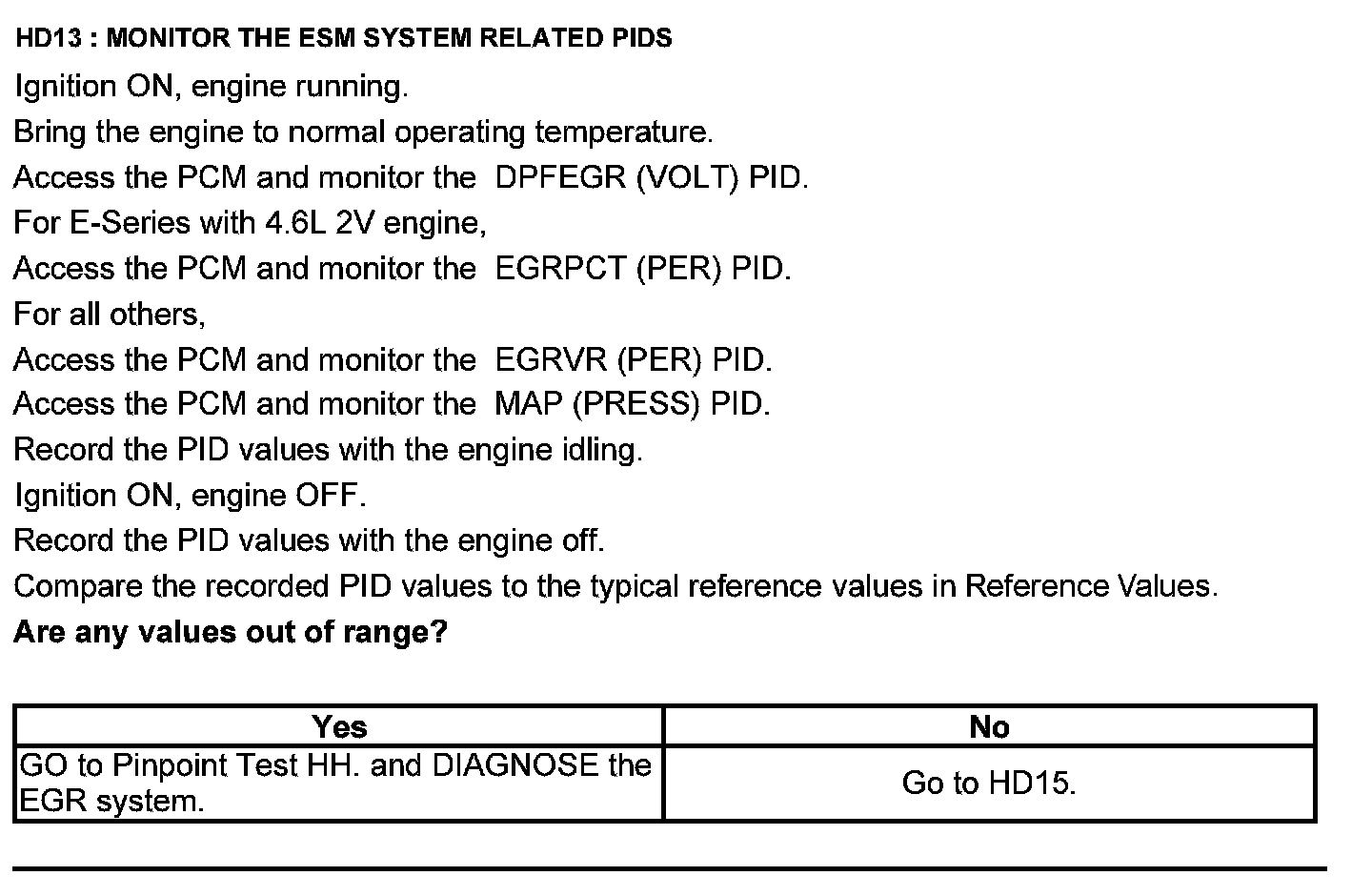

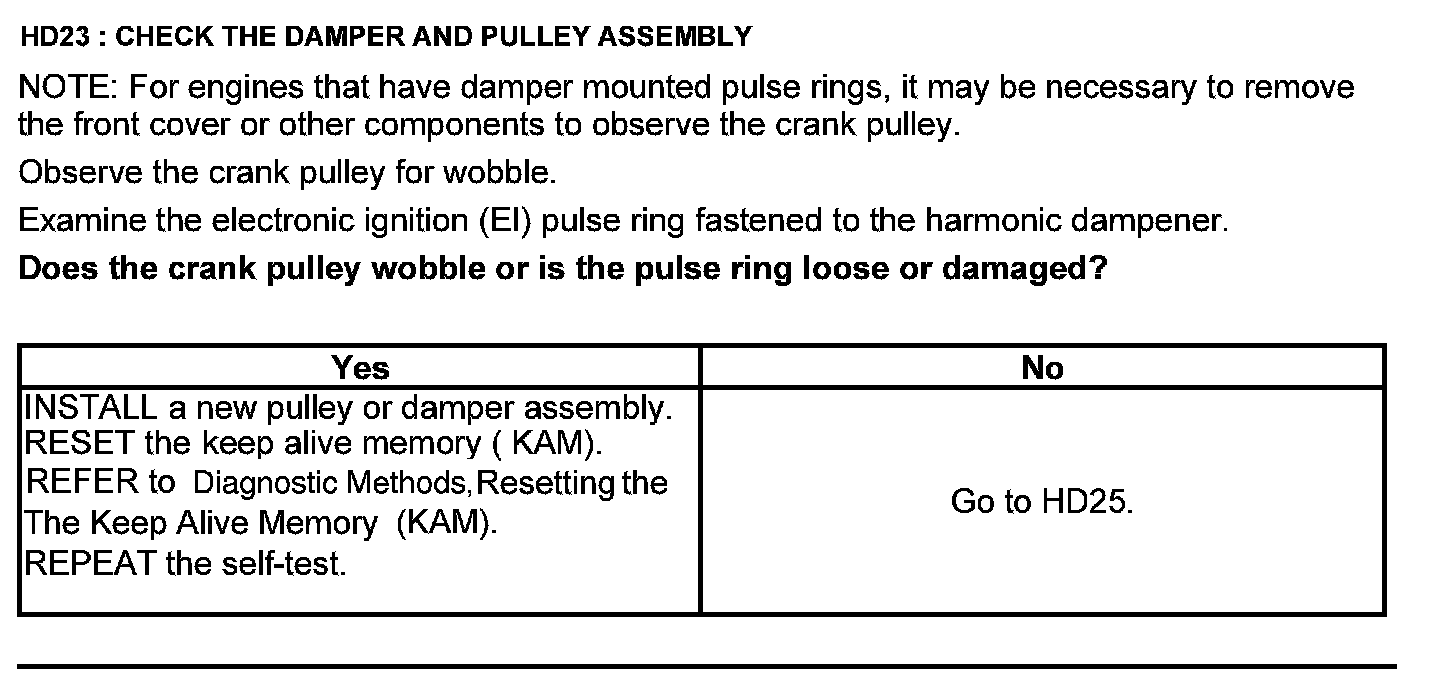

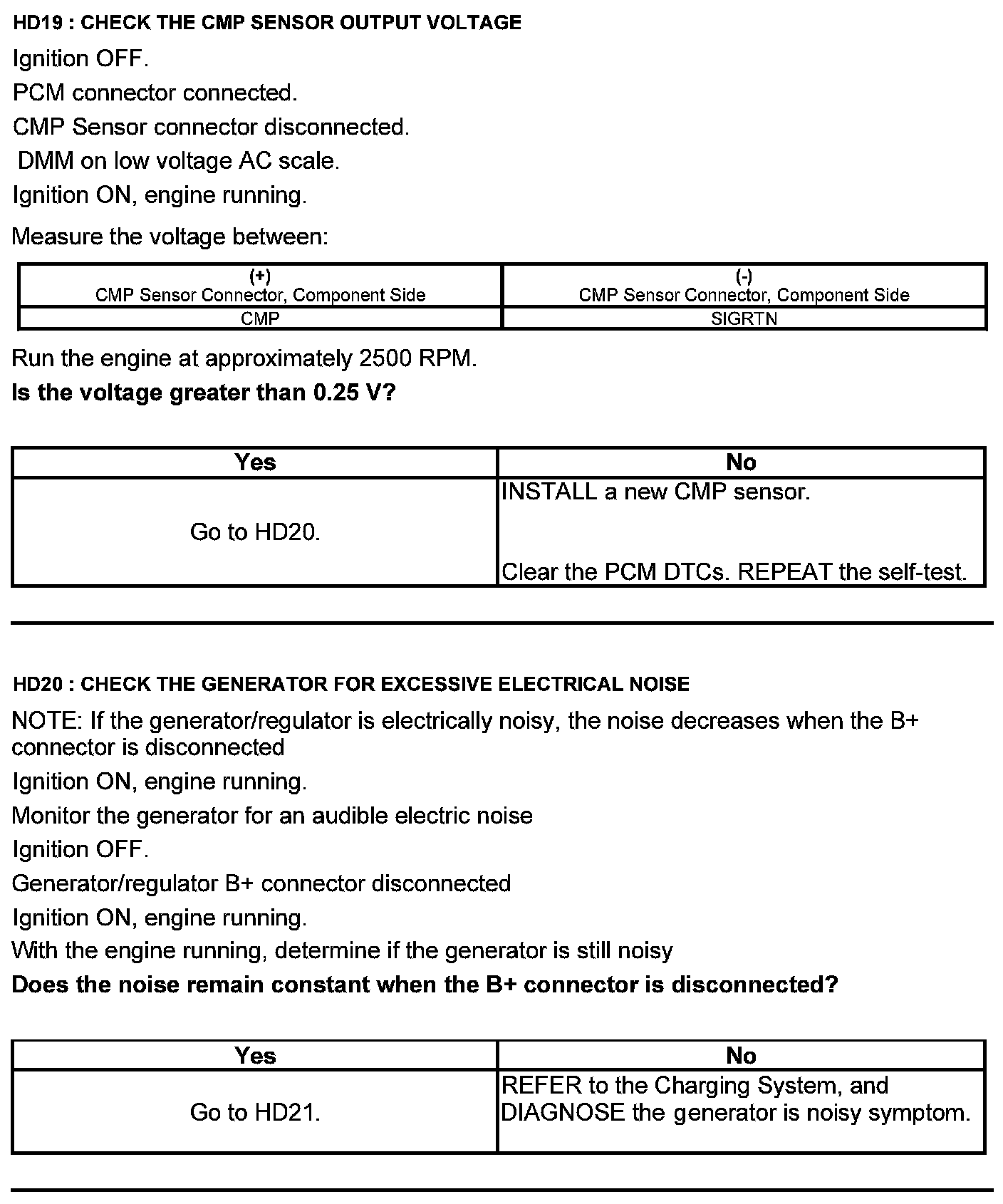

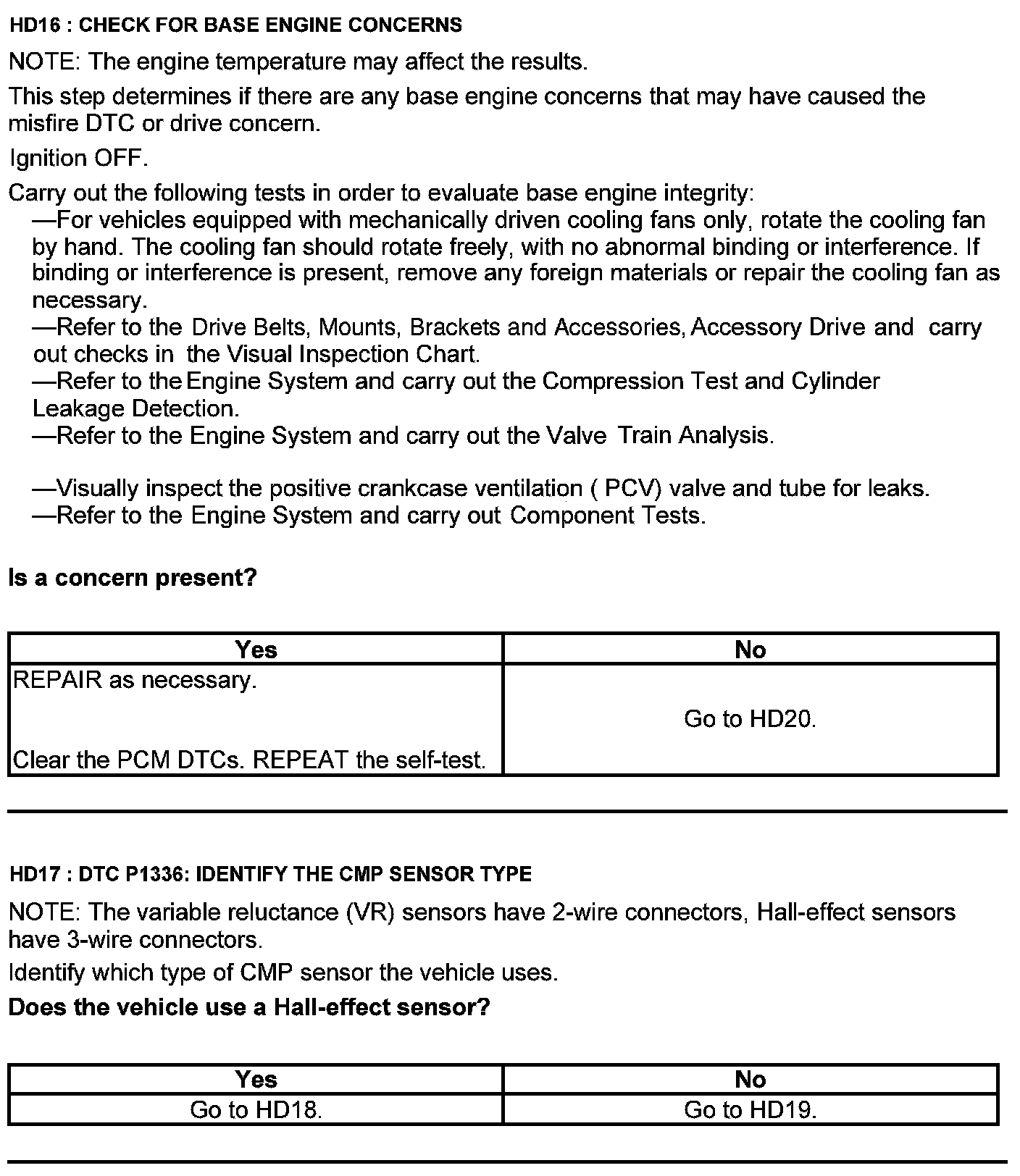

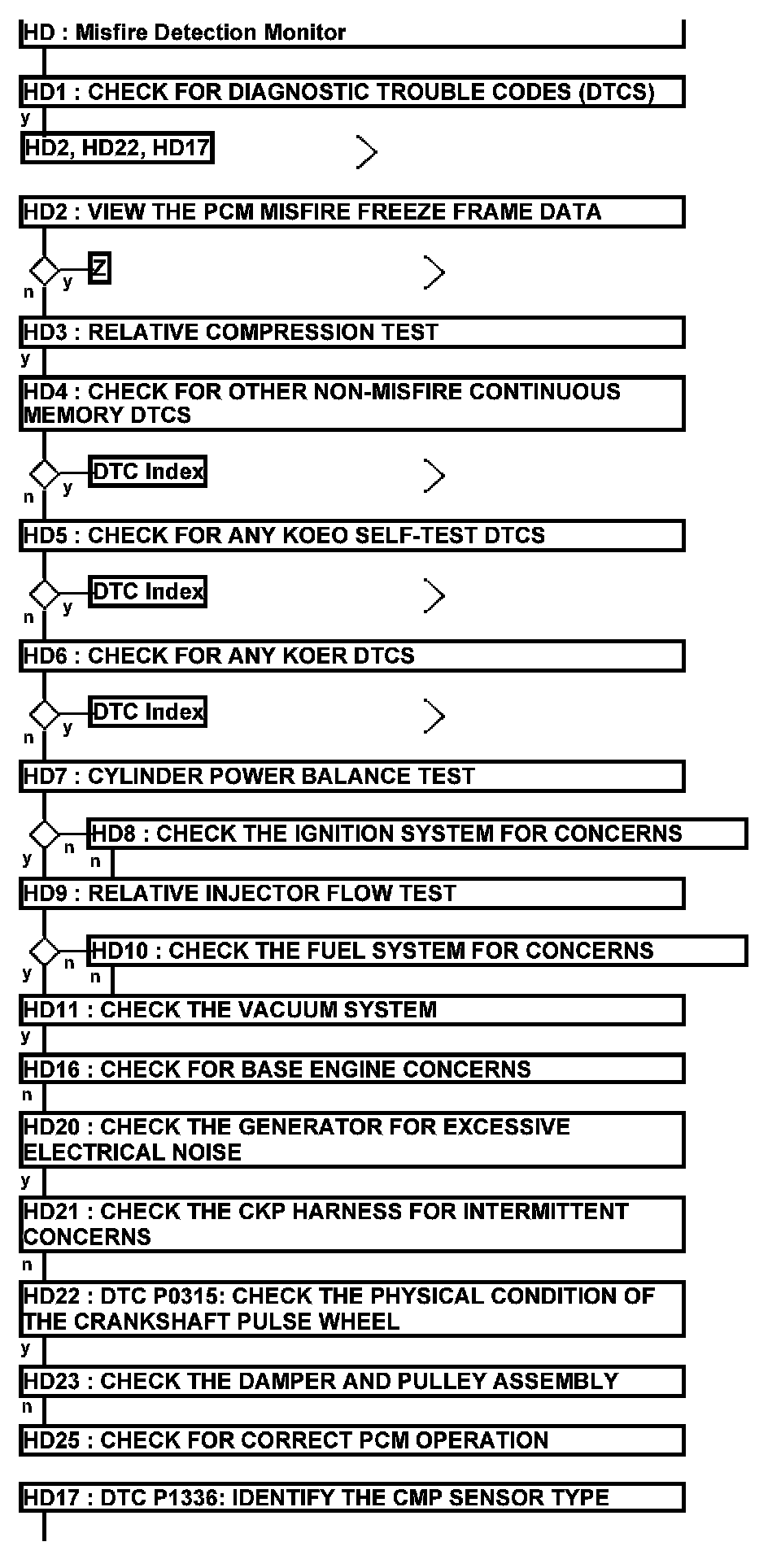

Misfire Detection Monitor

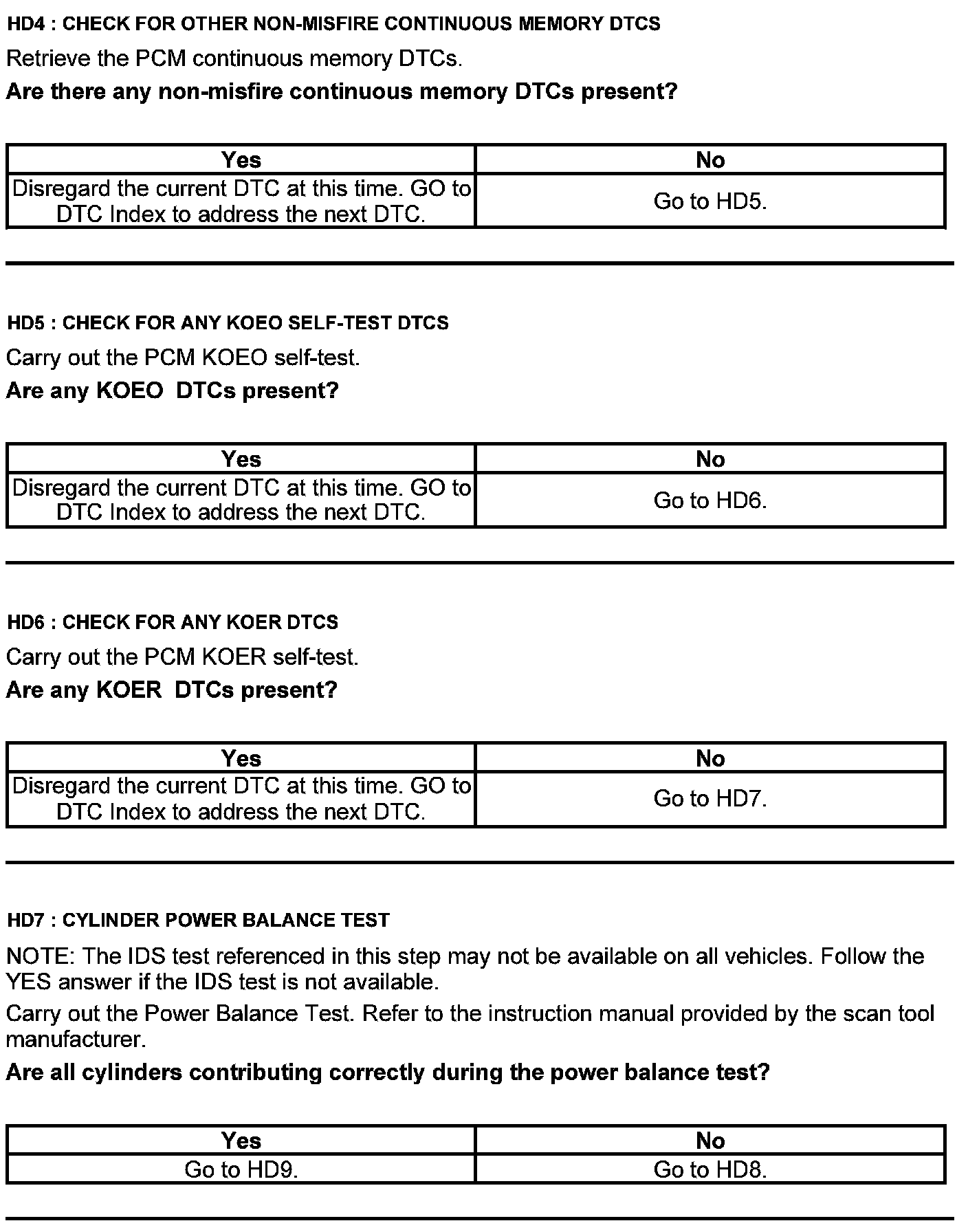

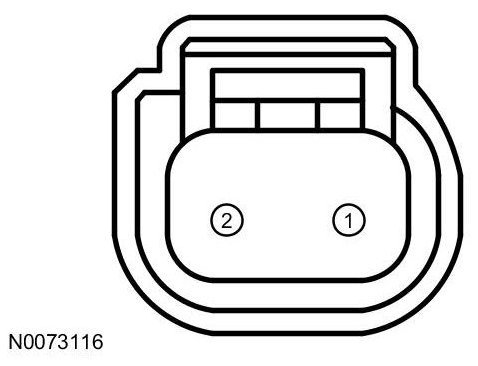

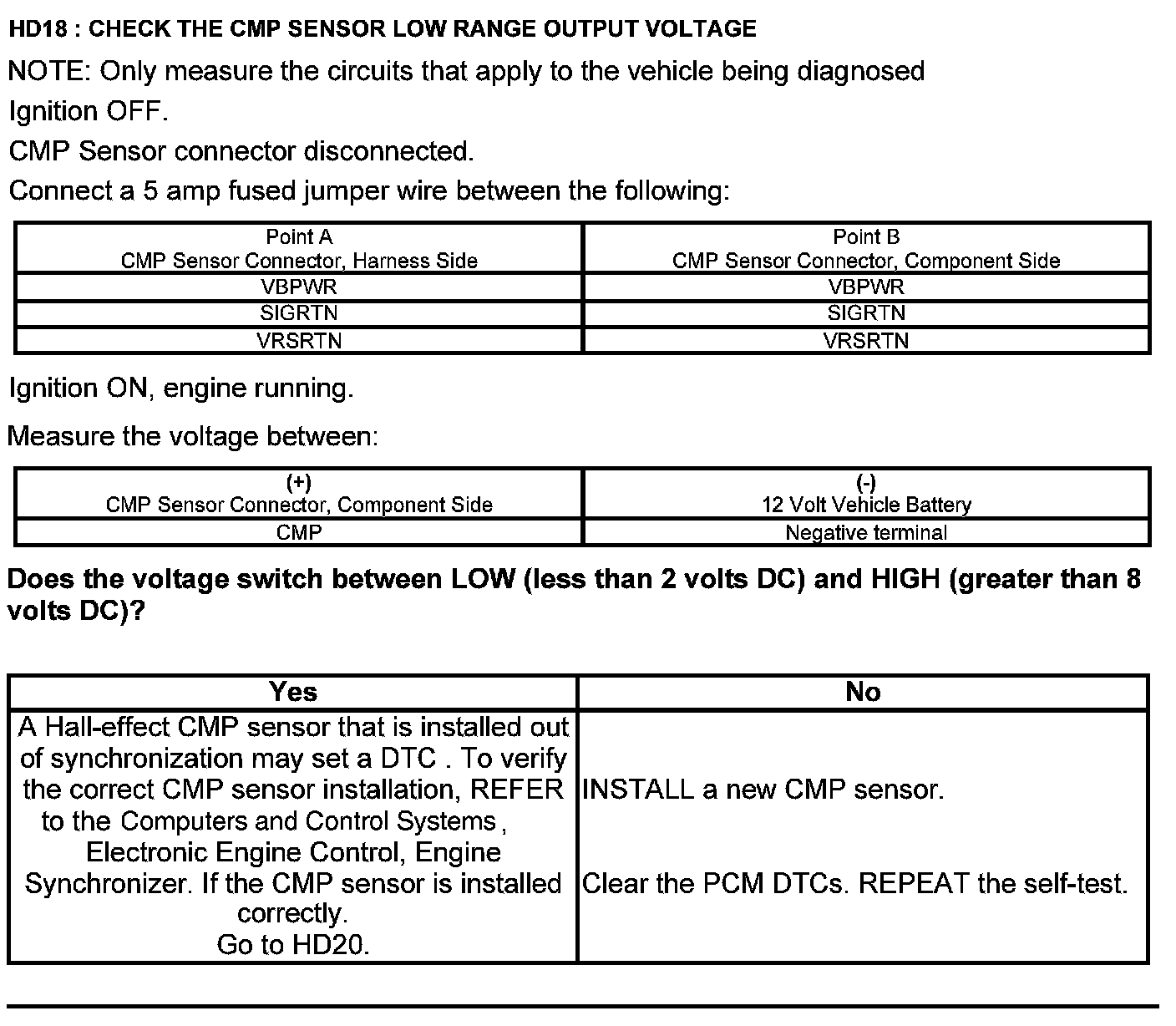

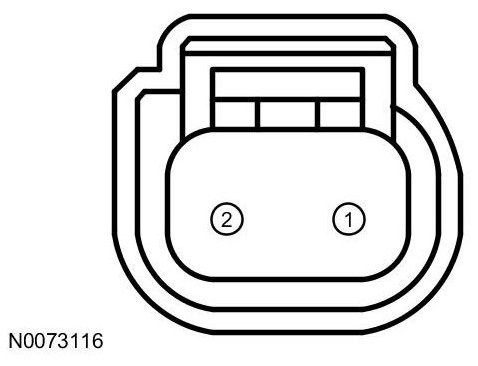

Camshaft Position 11 (CMP11) Sensor Connector






Harness Side

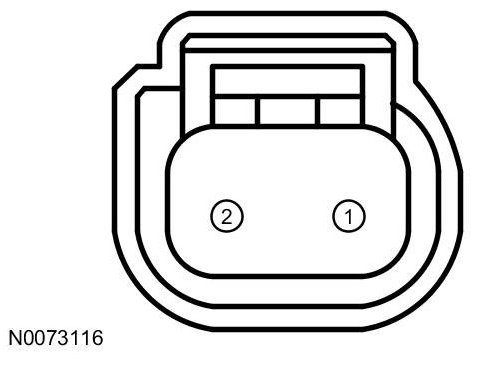

Camshaft Position 12 (CMP12) Sensor Connector






Harness Side







Camshaft Position 21 (CMP21) Sensor Connector






Harness Side

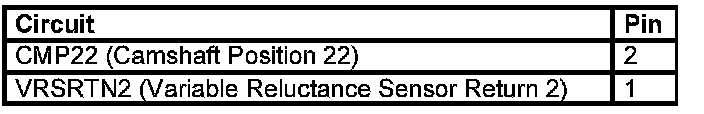

Camshaft Position 22 (CMP22) Sensor Connector






Harness Side

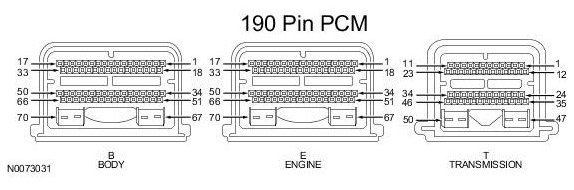

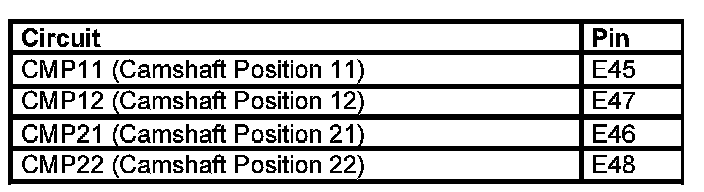

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
