Intake Manifold

Upper Intake Manifold

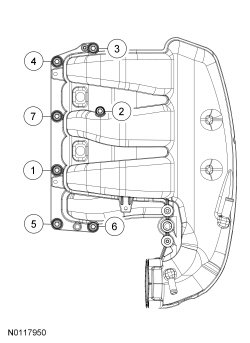

Using a new gasket, install the intake manifold and the 7 bolts.
Tighten in the sequence shown in 2 stages.
Stage 1: Tighten to 10 Nm (89 lb-in).
Stage 2: Tighten an additional 45 degrees.











Lower Intake Manifold

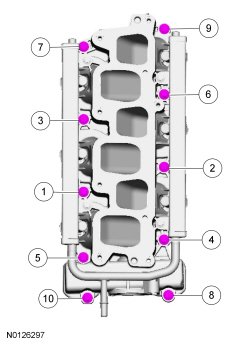

Using new intake manifold and thermostat housing gaskets, install the lower intake manifold and the 10 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).







Install the 2 thermostat housing-to-lower intake manifold bolts.
Tighten to 10 Nm (89 lb-in).
