Engine Lubrication

Engine Lubrication Components - Exploded View

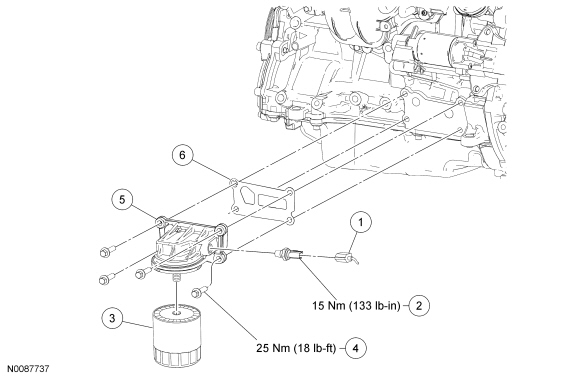

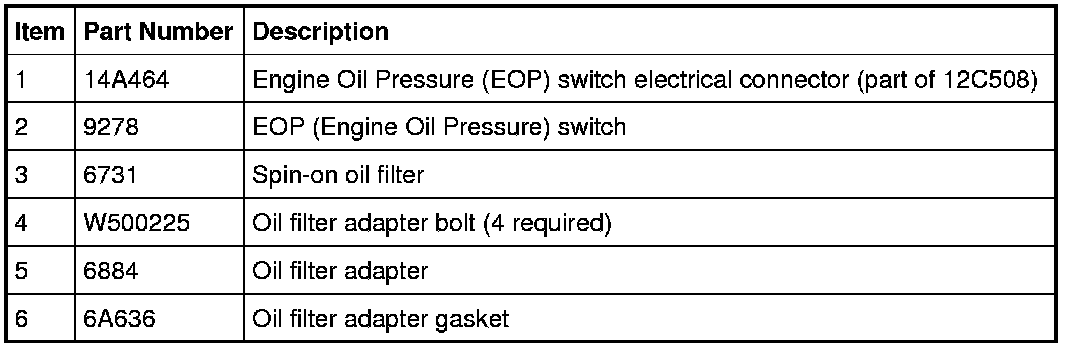

Oil Filter Adapter, Spin-on Oil Filter and Engine Oil Pressure (EOP) Switch

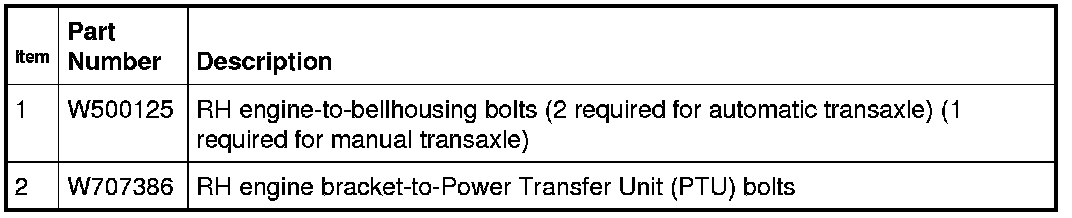

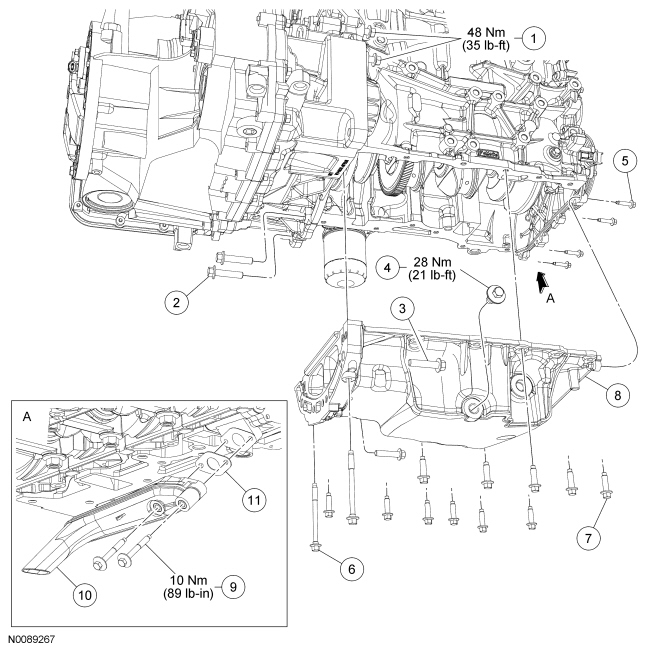

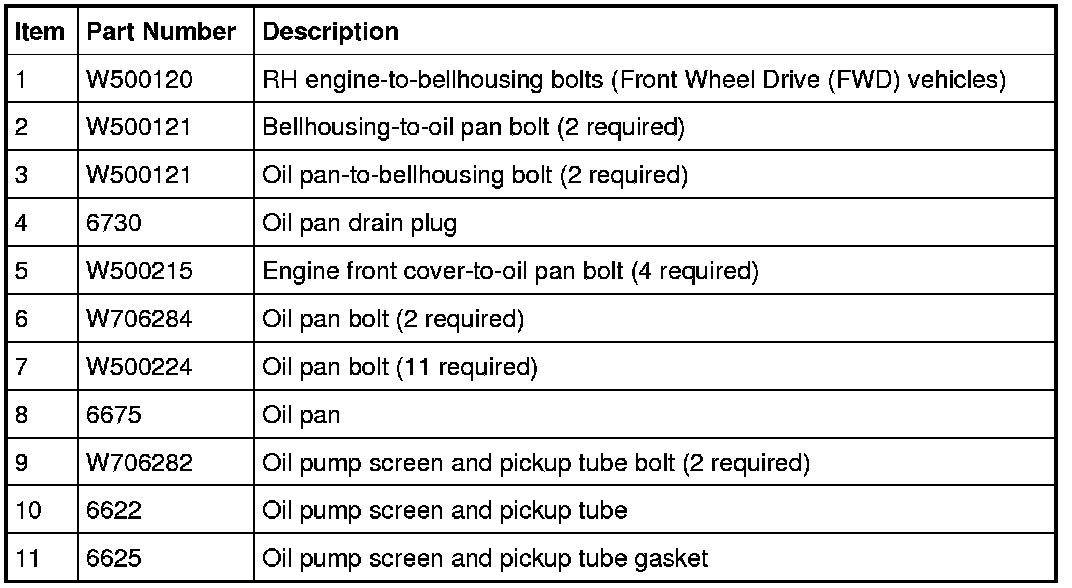

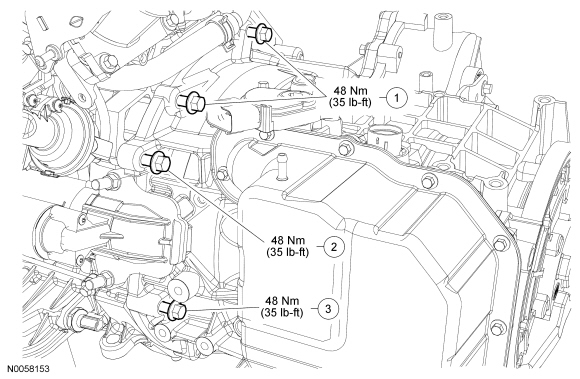

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles

NOTE: Automatic transmission shown, manual transmission similar.

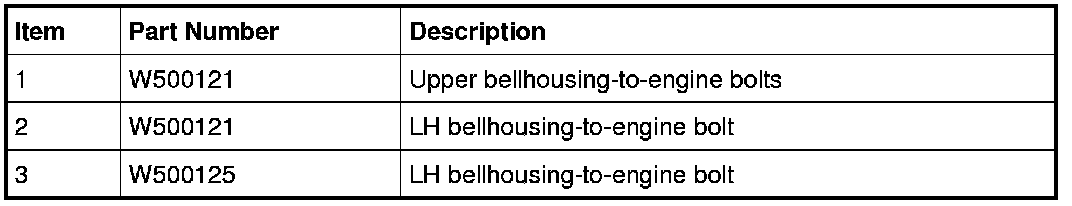

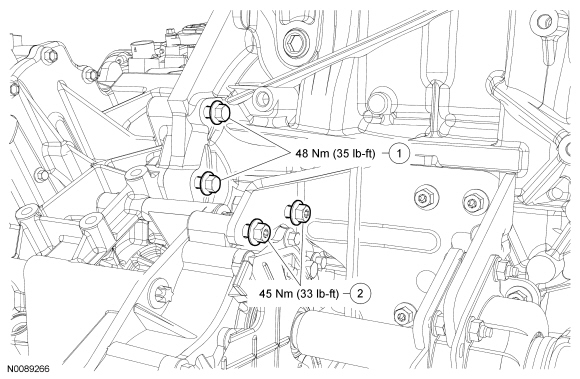

Oil Pan, Oil Pump Screen and Pickup Tube, All-Wheel Drive (AWD) Vehicles










Oil Pan, Oil Pump Screen and Pickup Tube

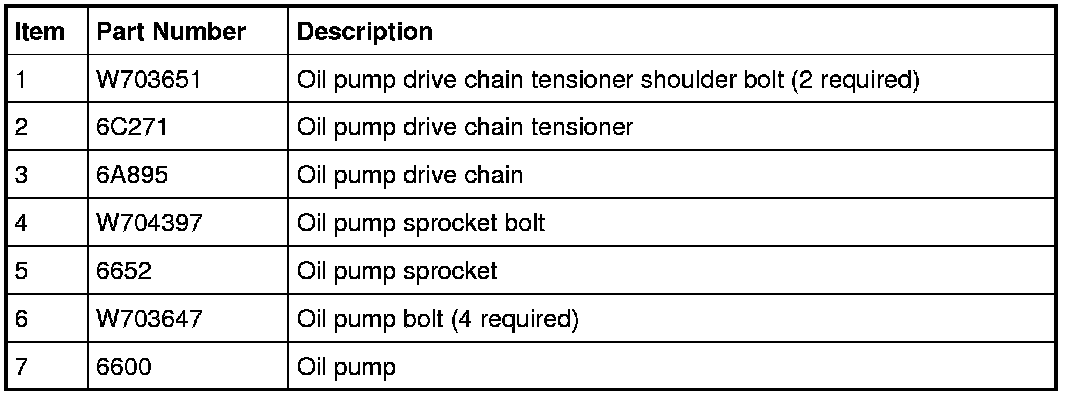

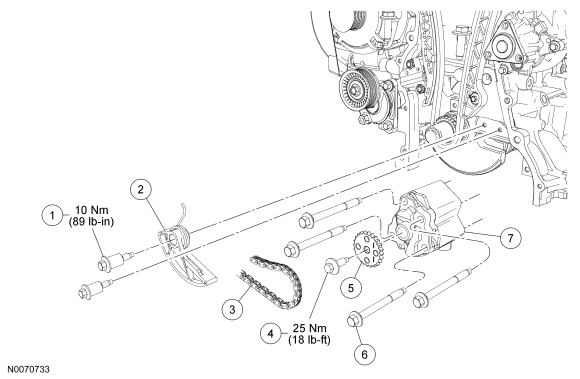

Oil Pump
