Automatic Transmission

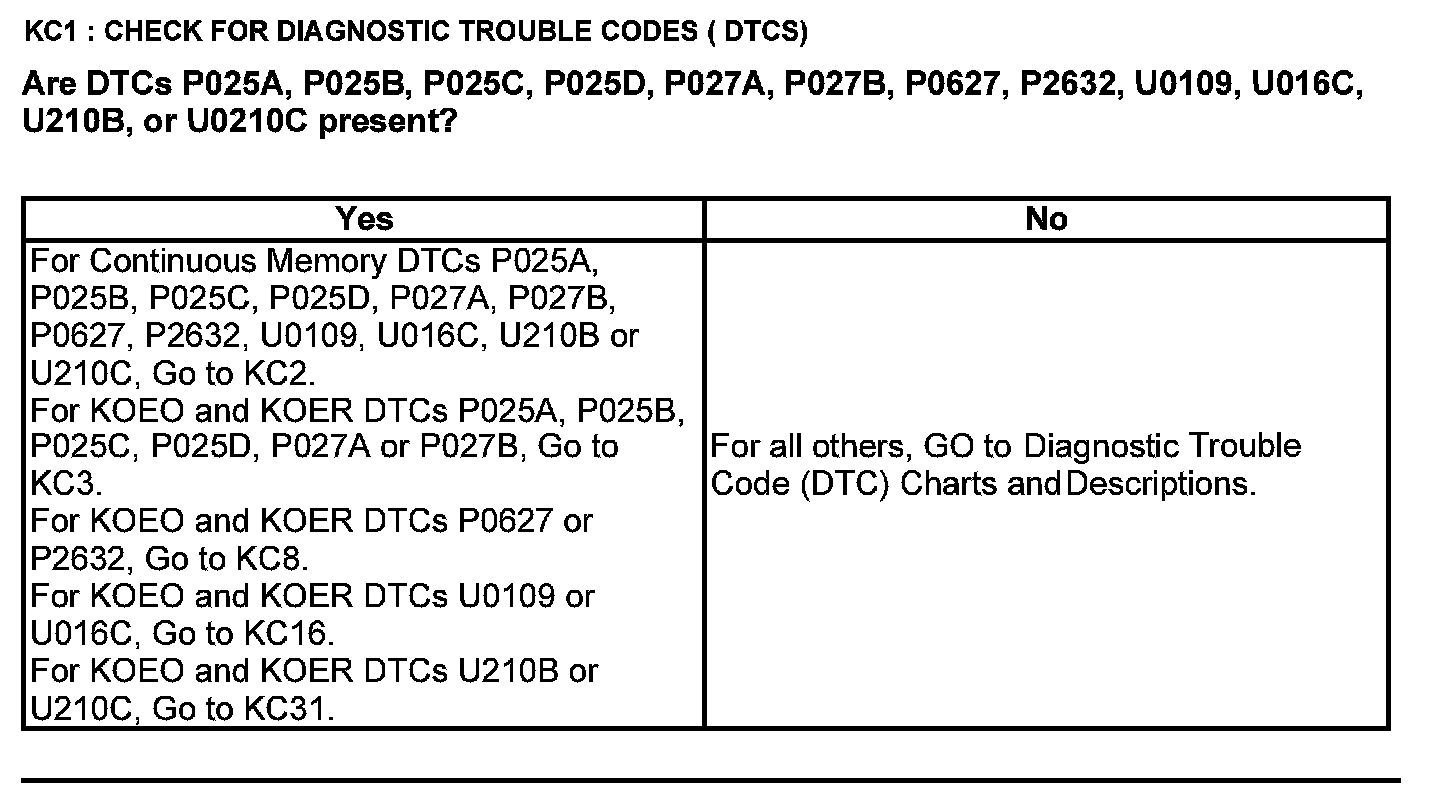

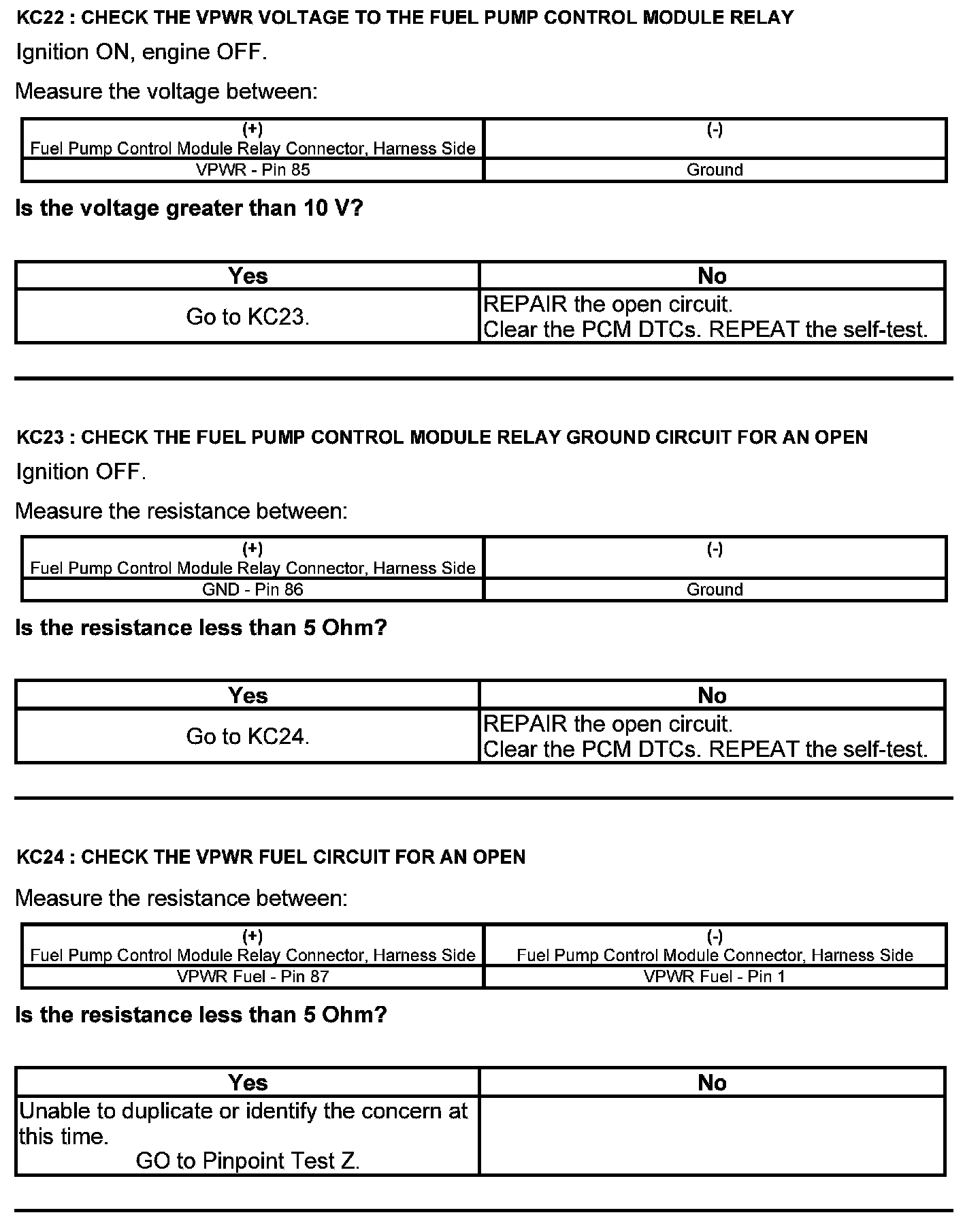

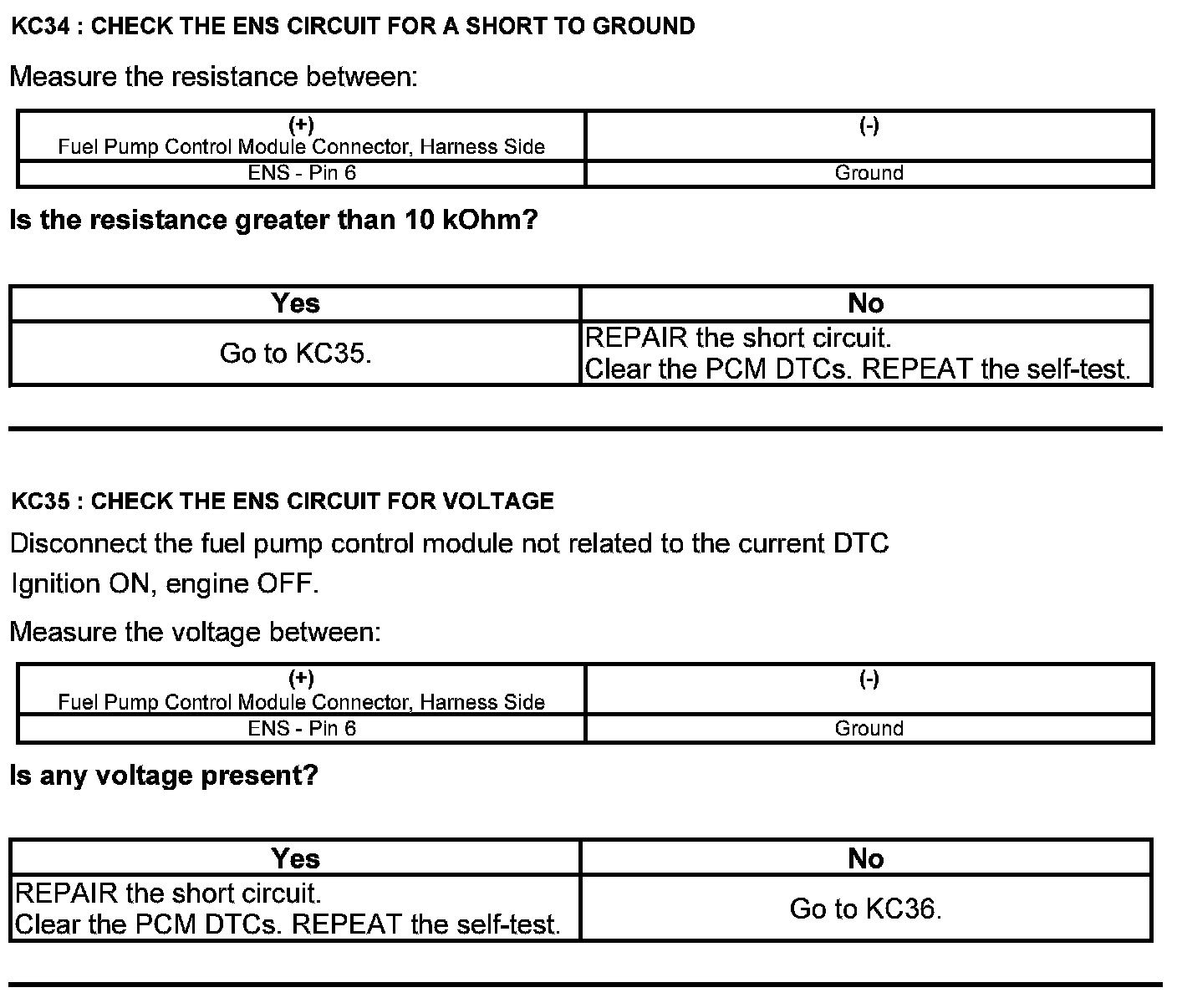

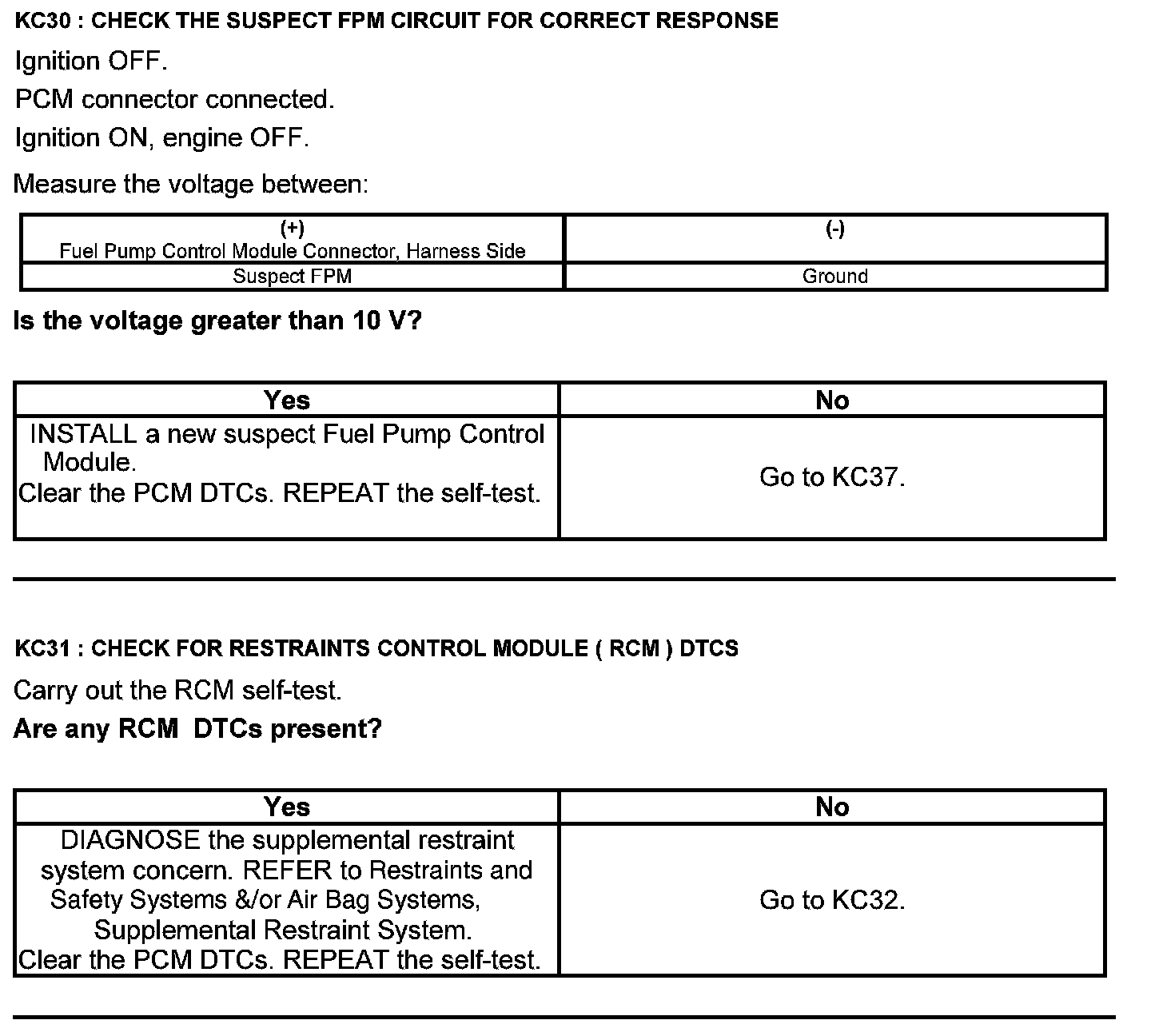

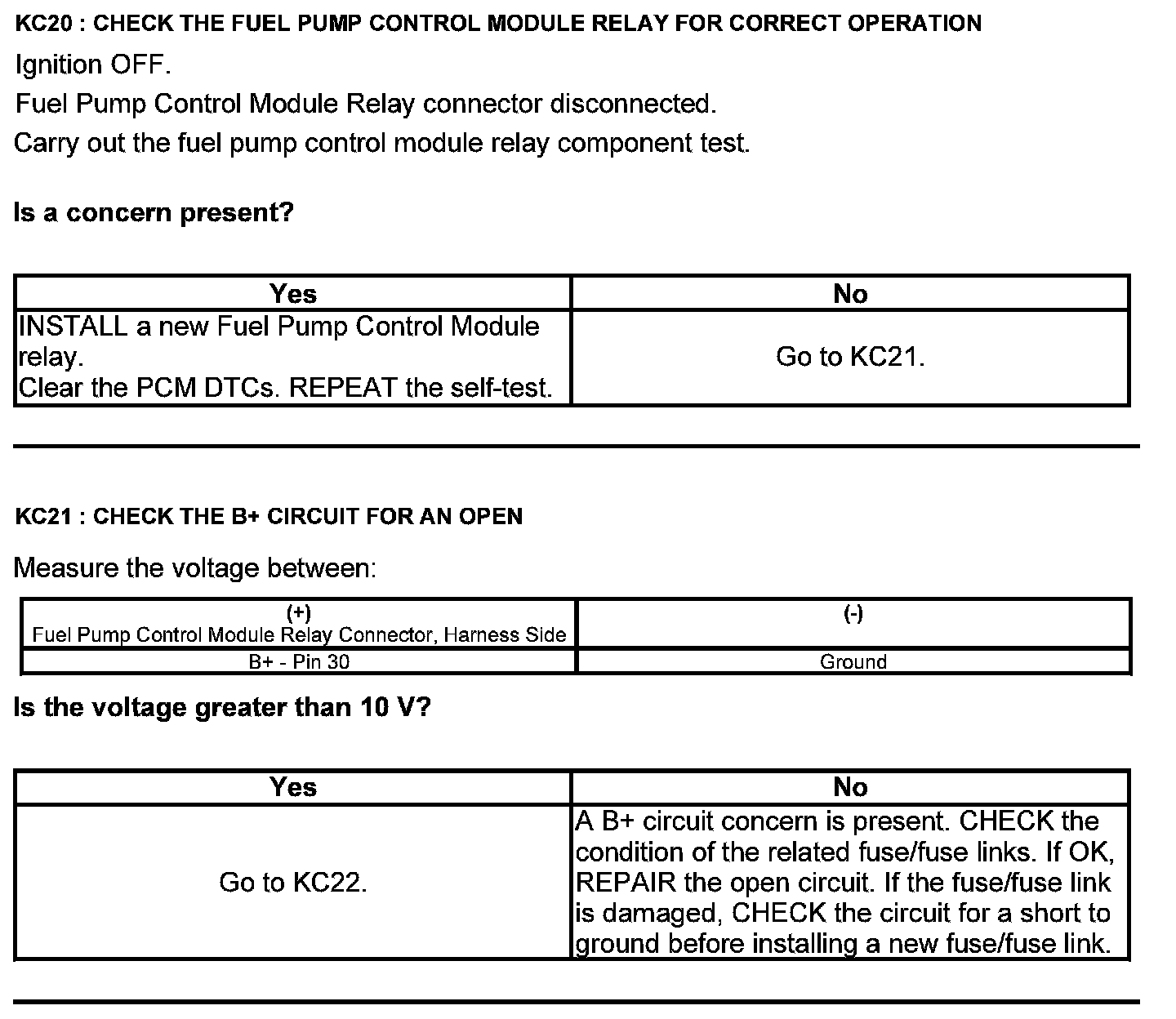

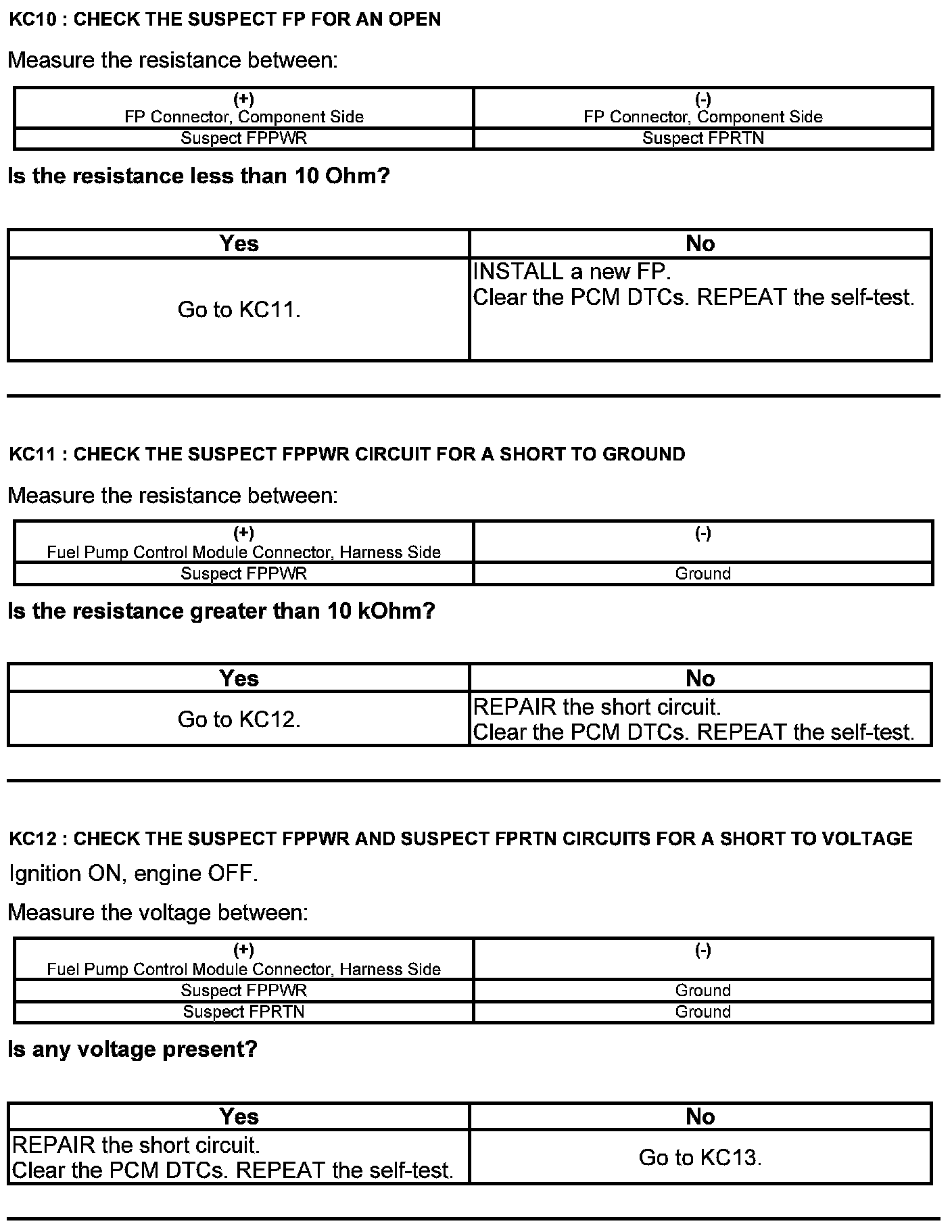

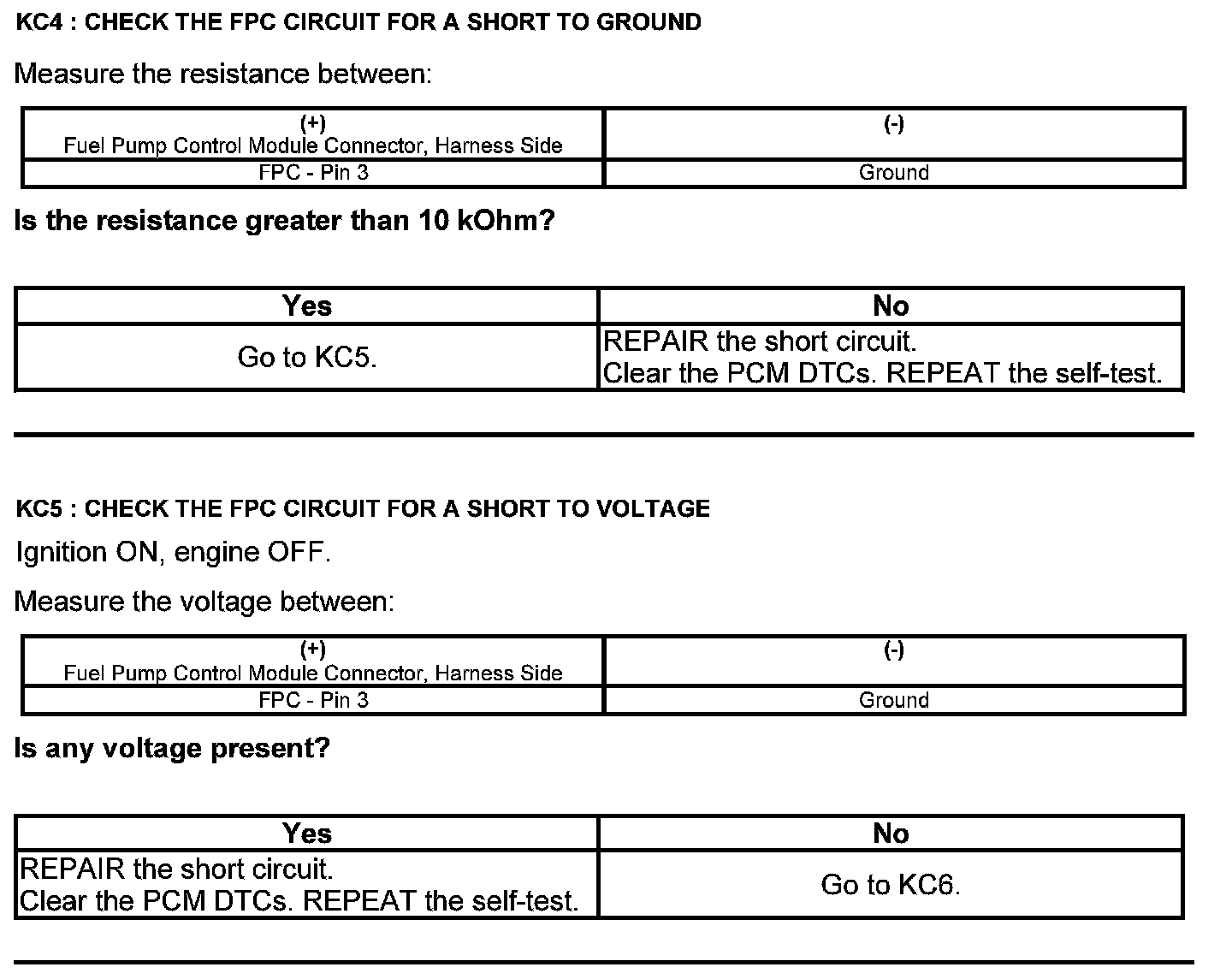

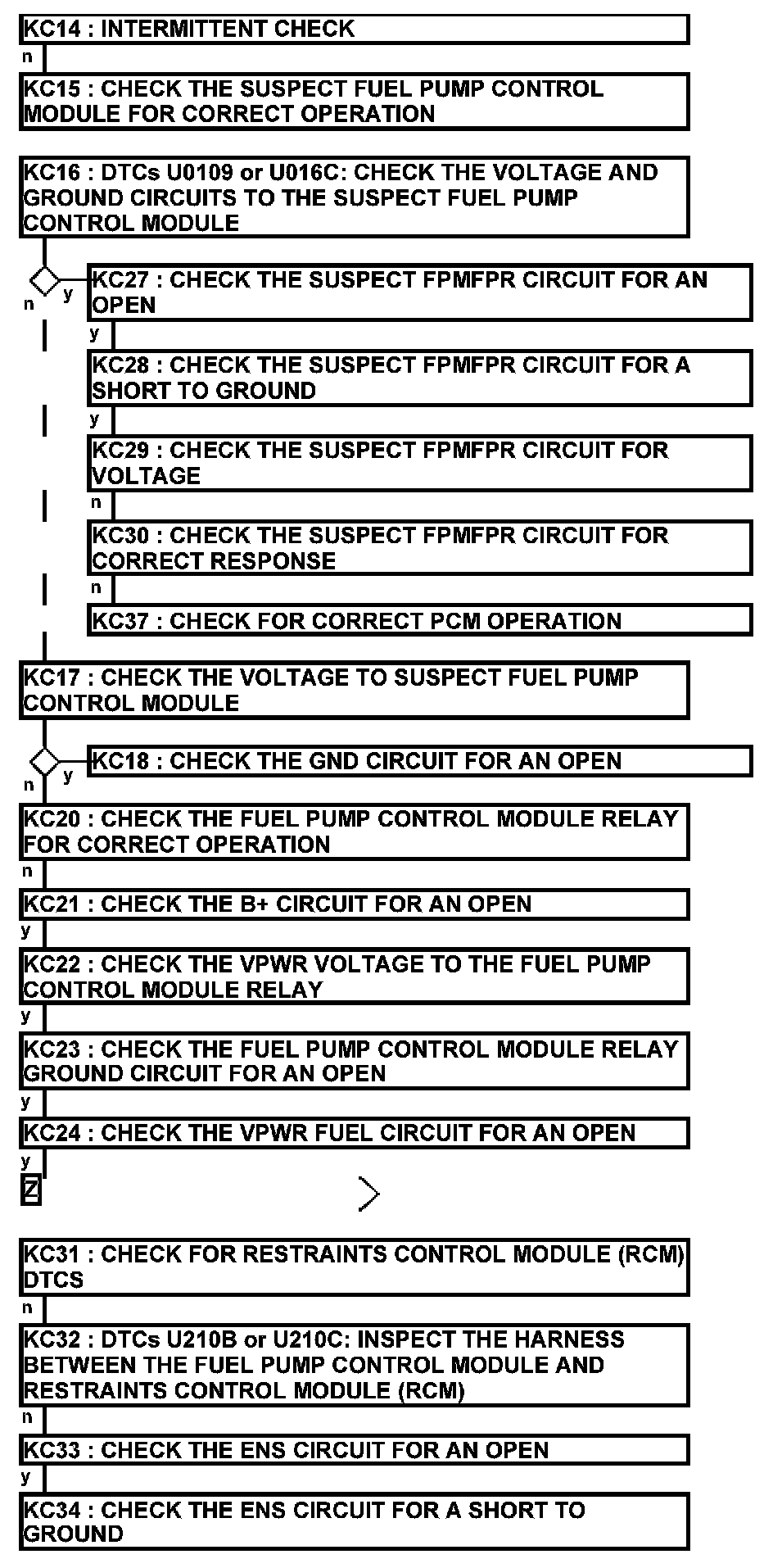

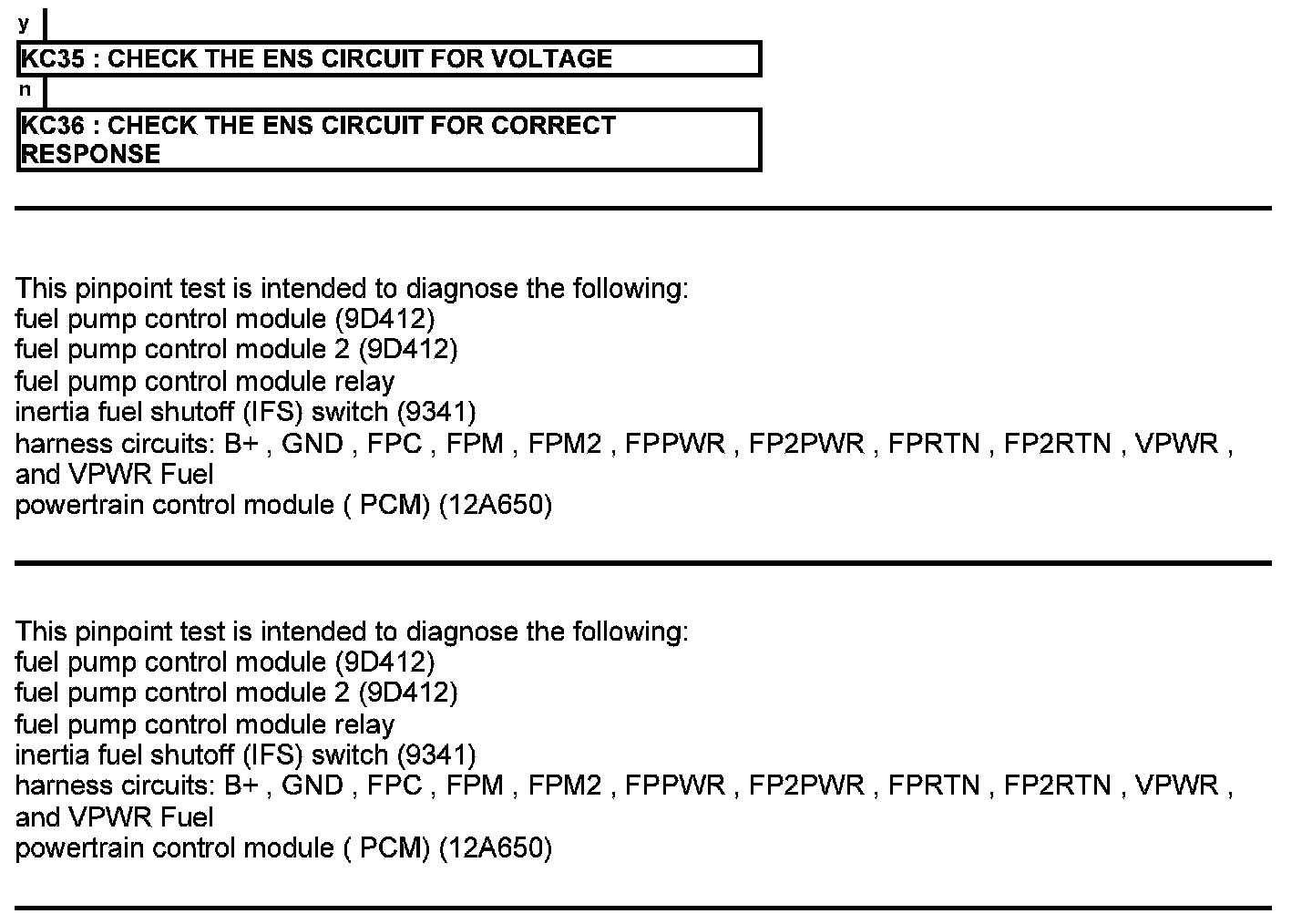

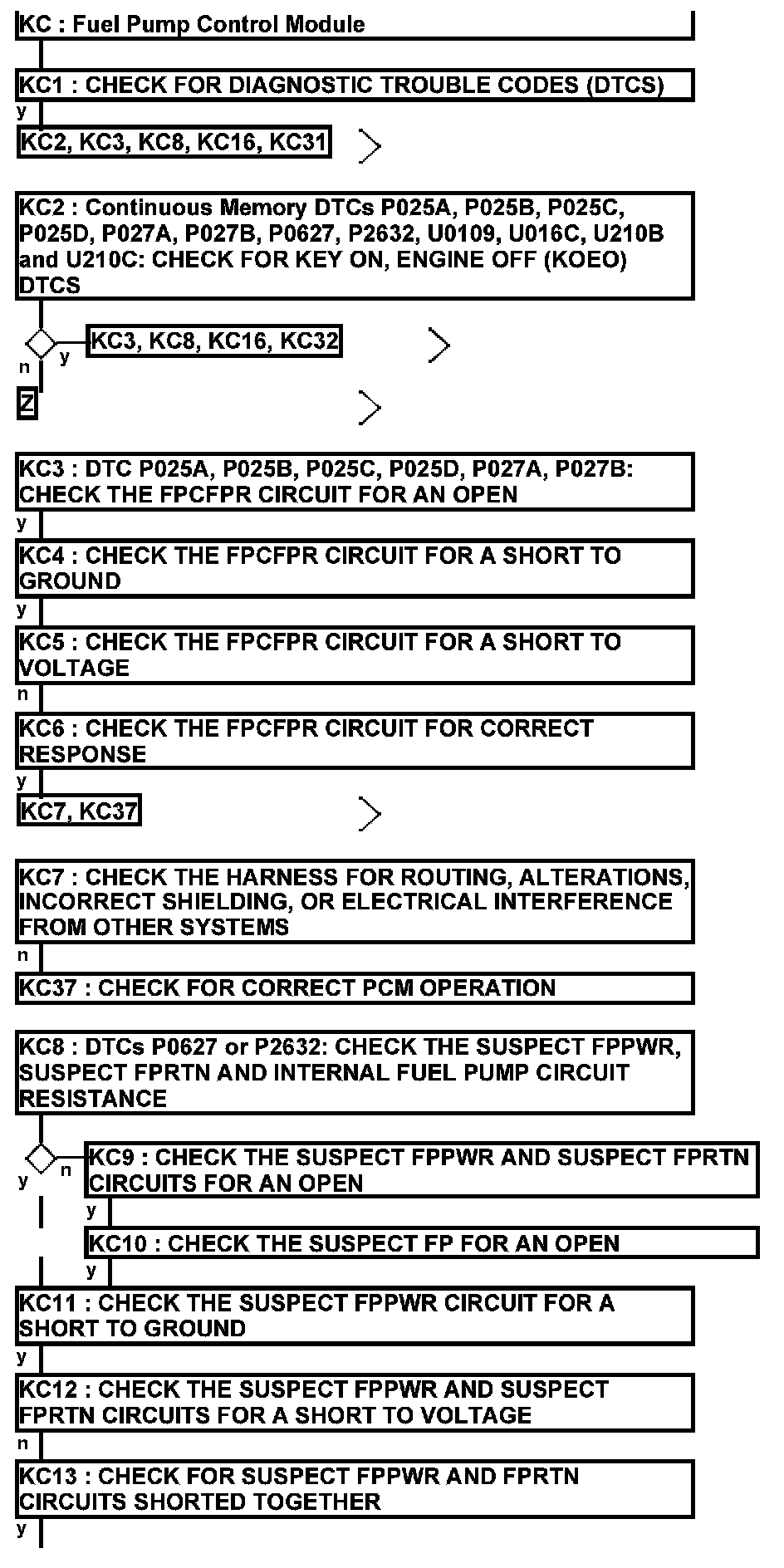

Fuel Pump Control Module - Automatic Transmission

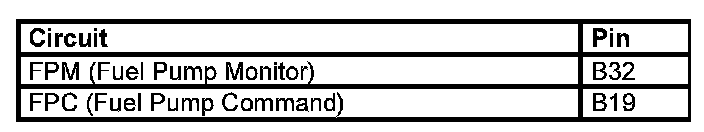

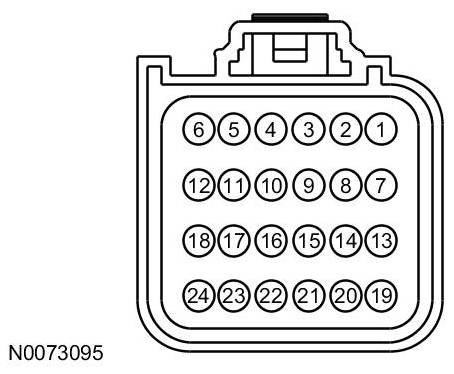

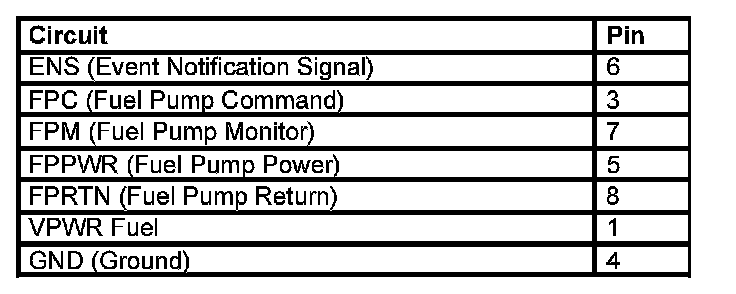

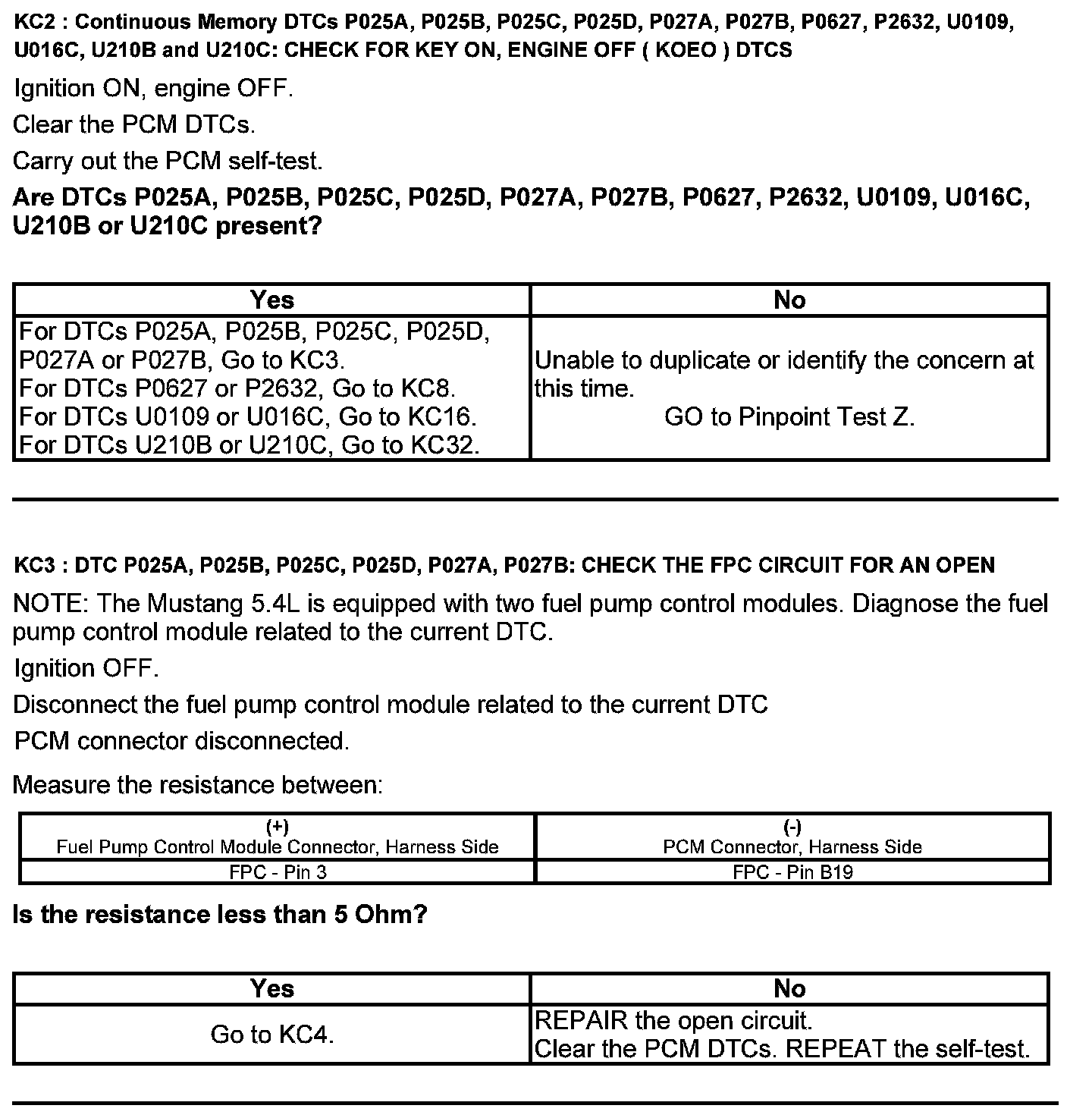

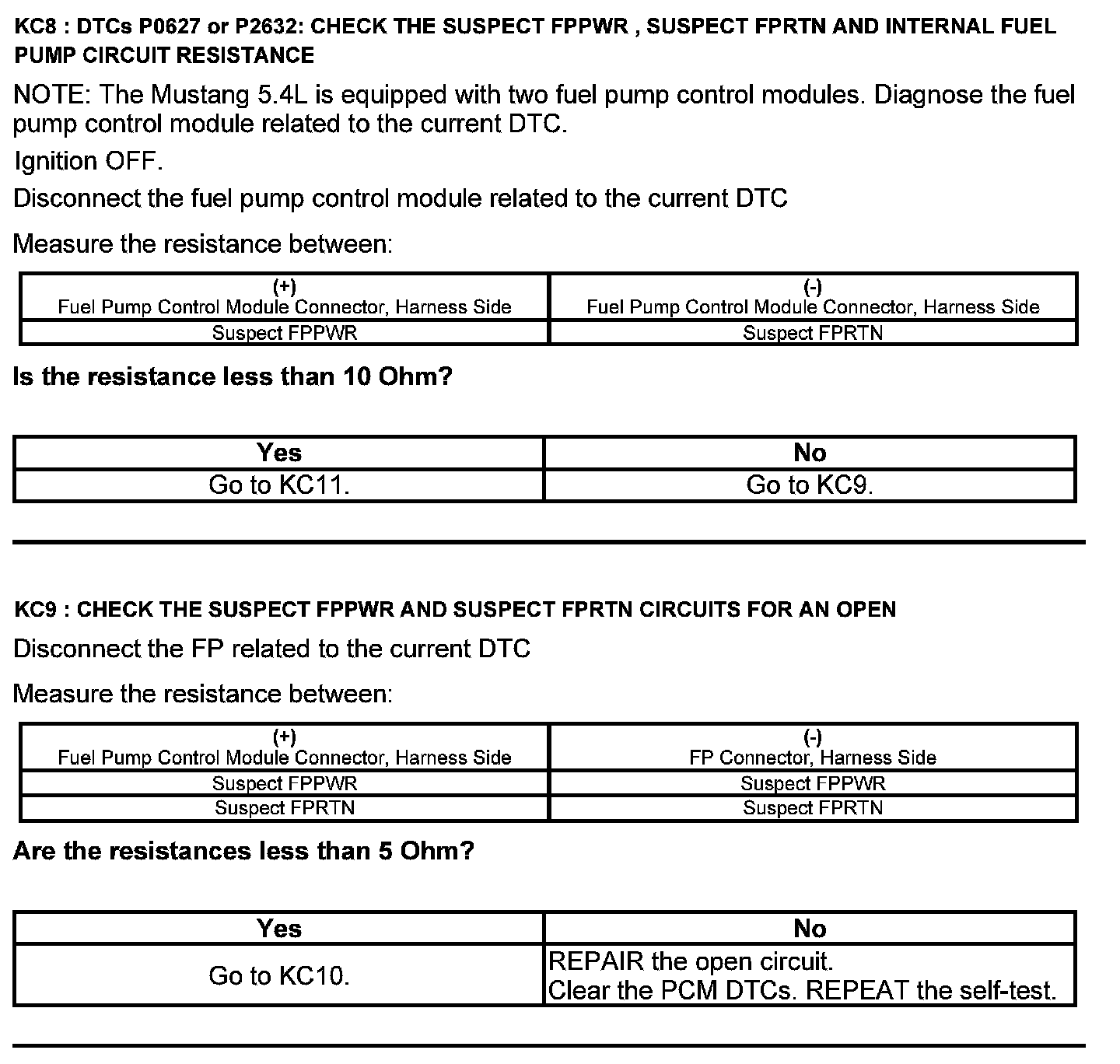

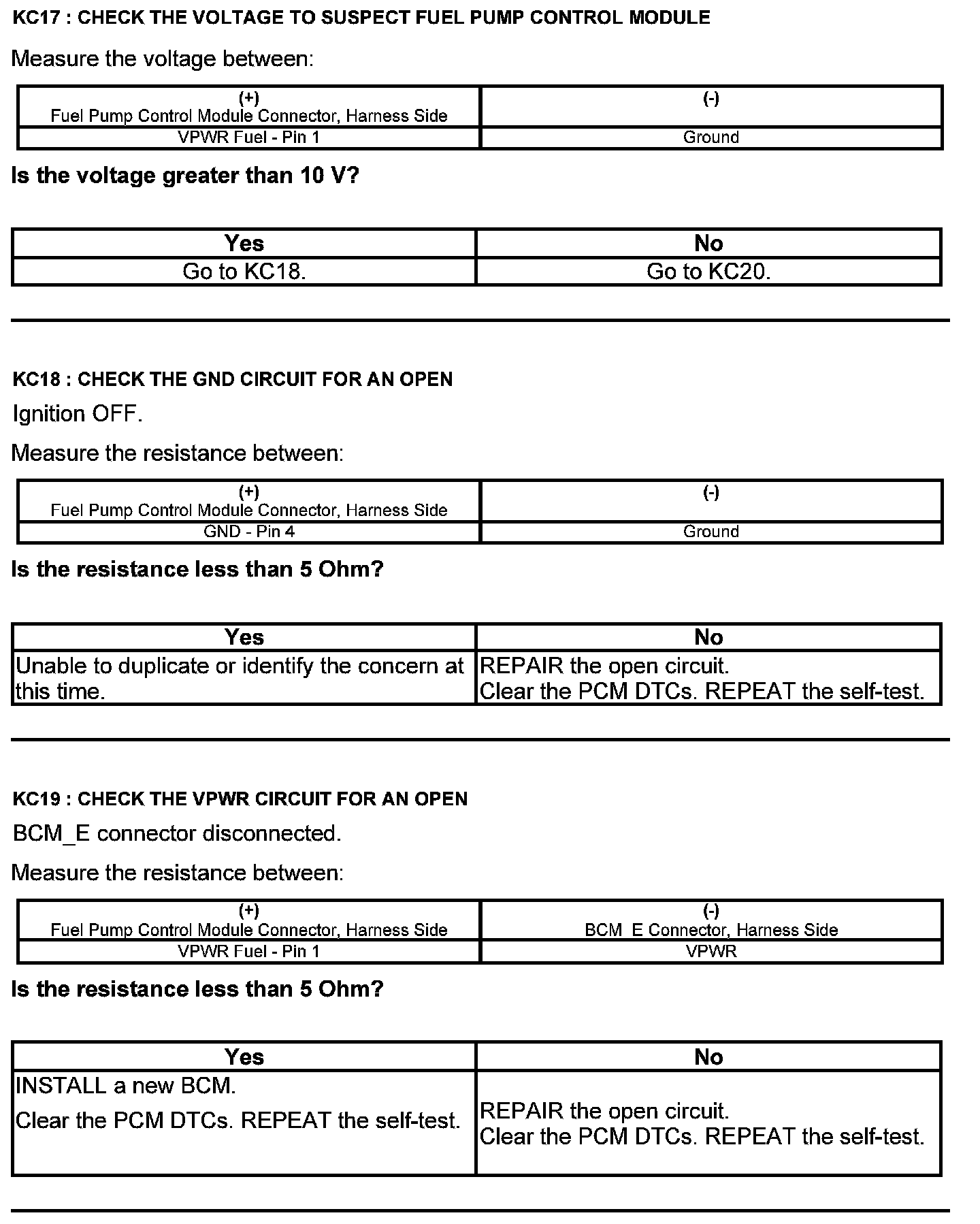

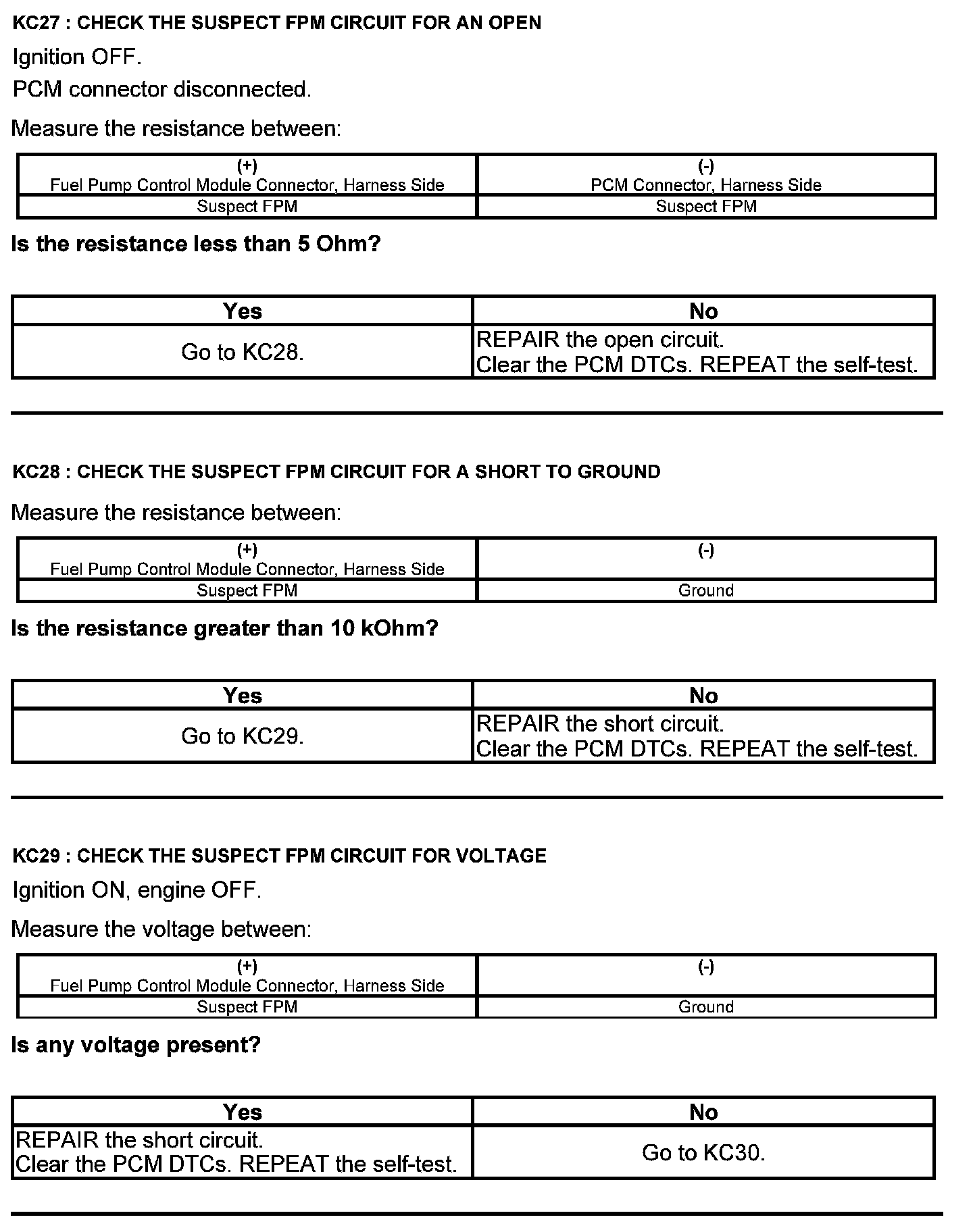

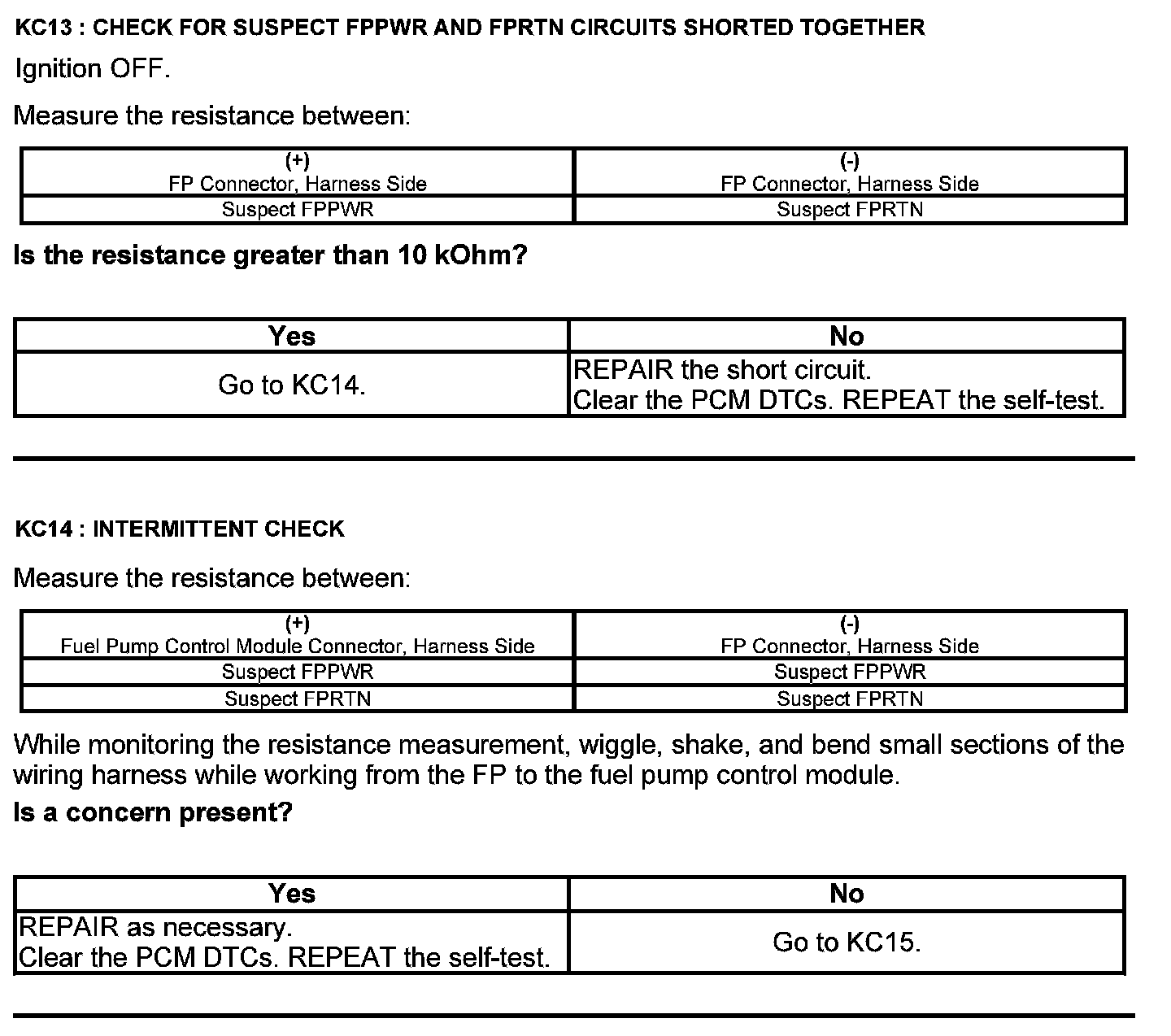

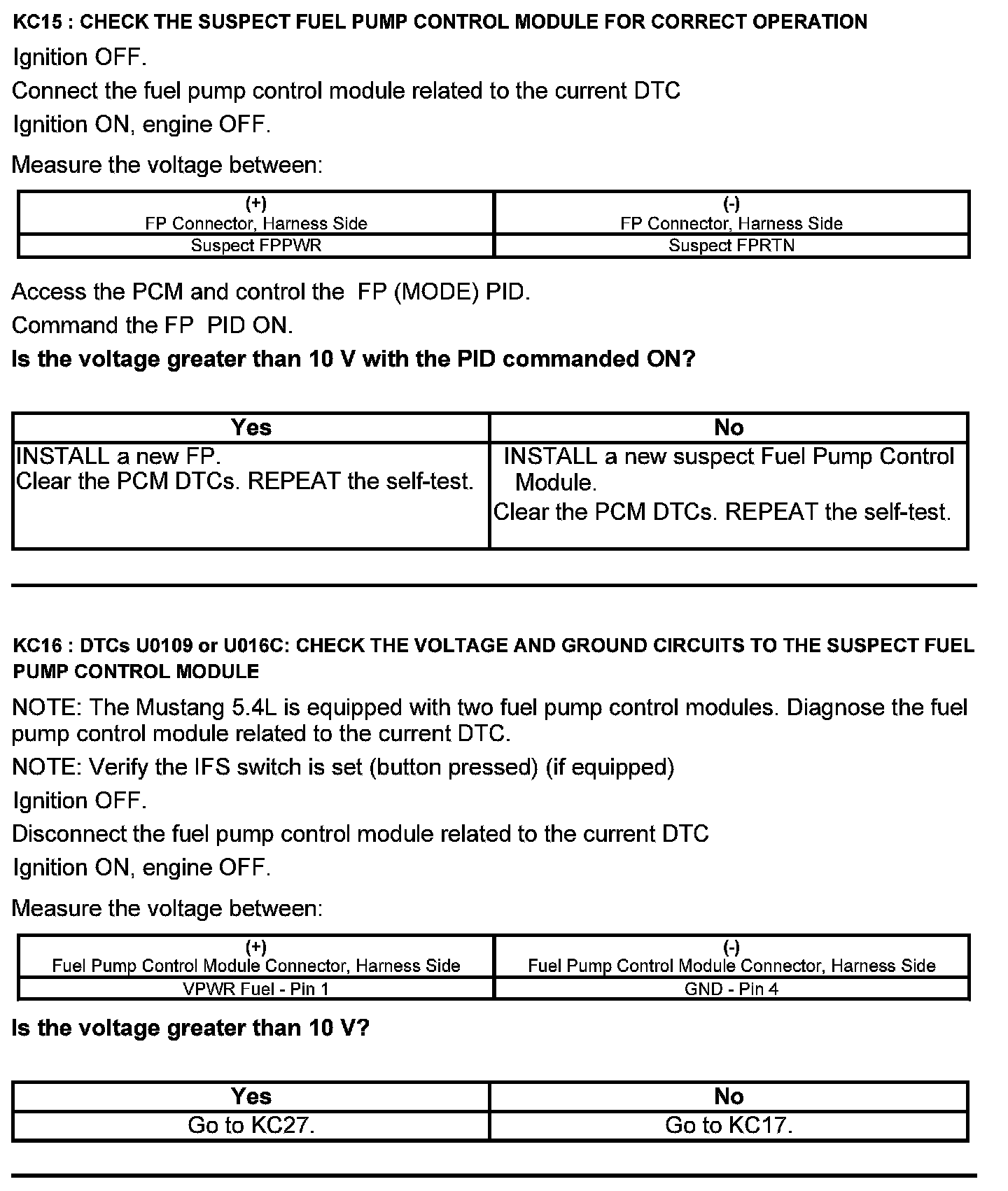

Fuel Pump Control Module Connector





Harness Side

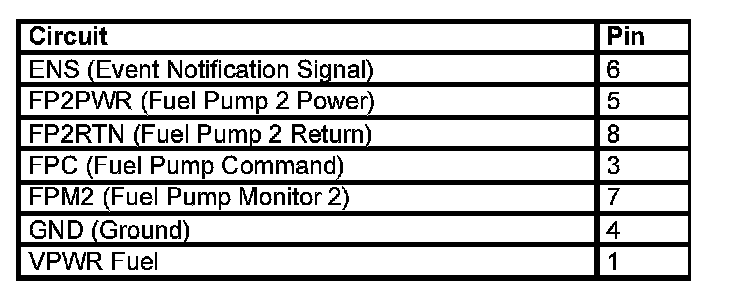

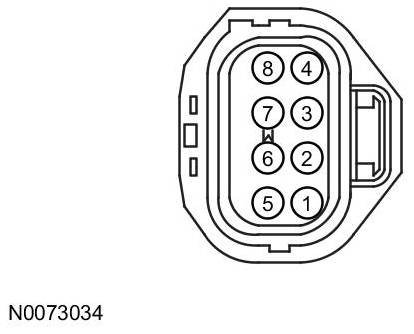

Fuel Pump Control Module 2 Module Connector





Harness Side

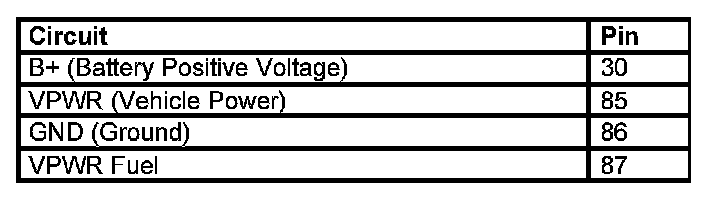

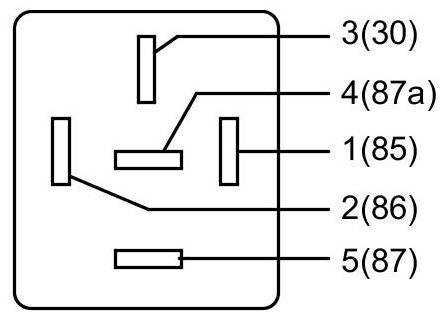

Fuel Pump Control Module Relay Connector - Refer to the Wiring Diagrams for schematic and connector information.





Harness Side






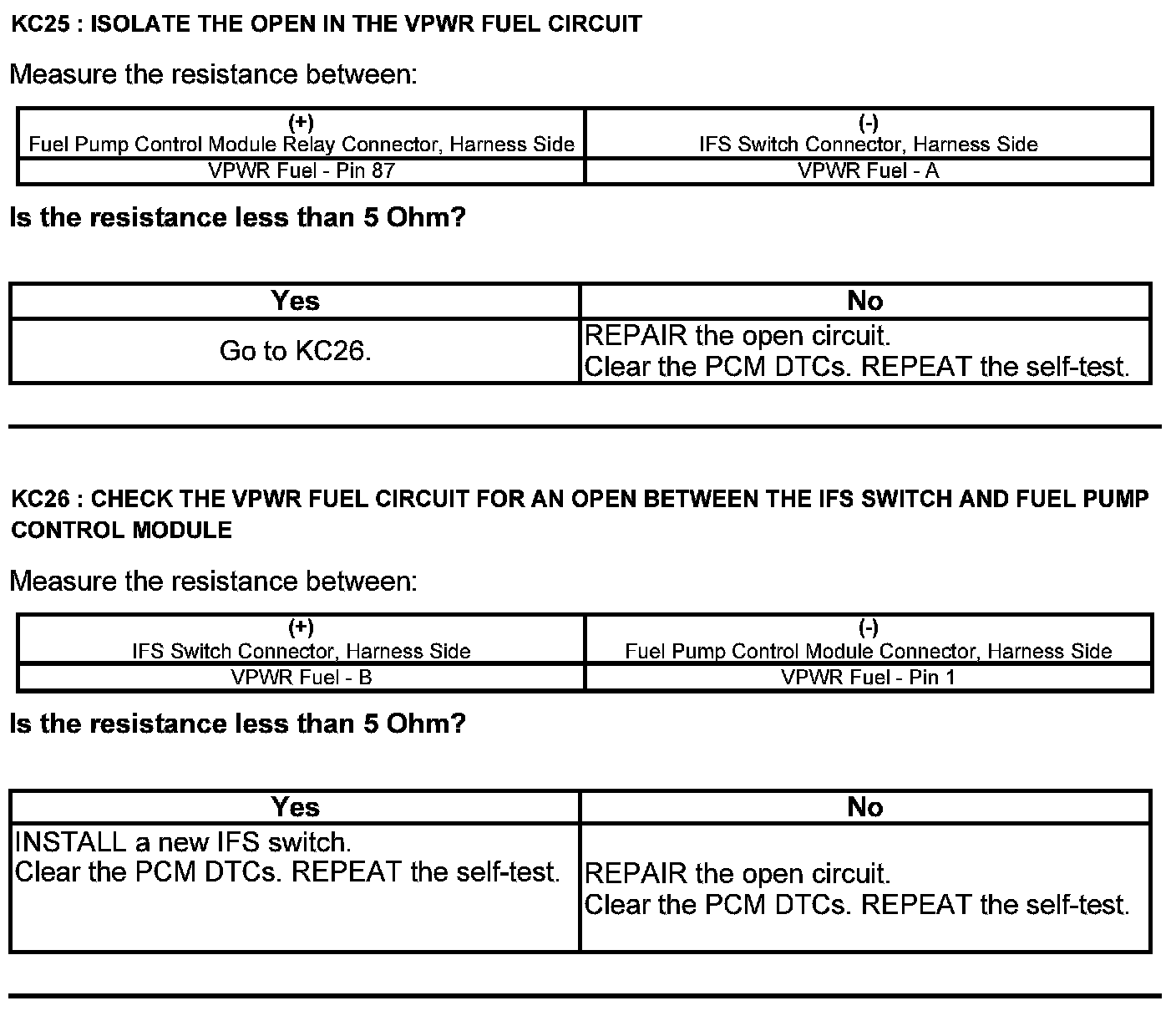

Inertia Fuel Shutoff (IFS) Switch Connector





Harness Side

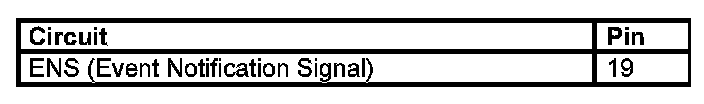

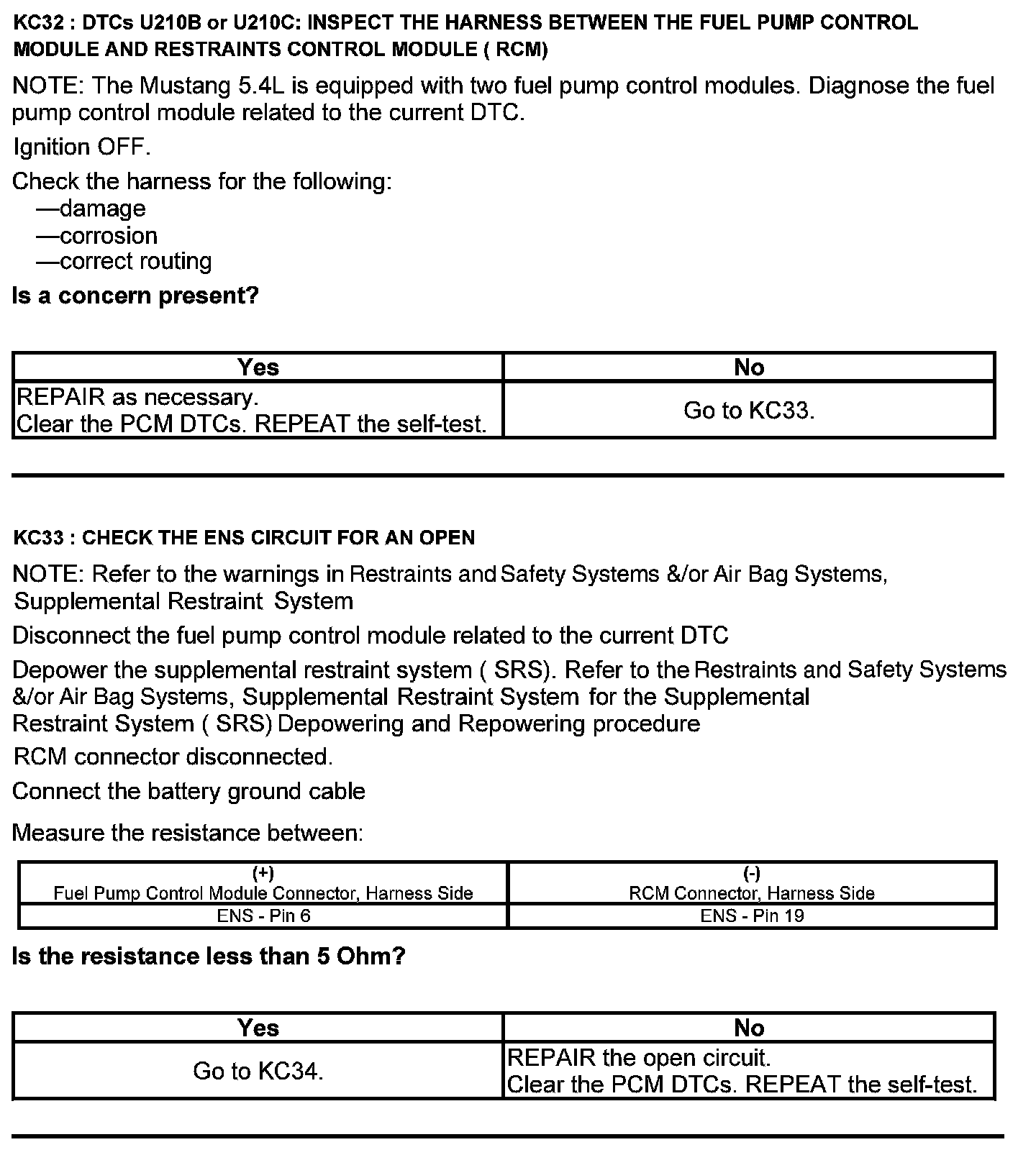

Restraints Control Module (RCM) Connector





Harness Side

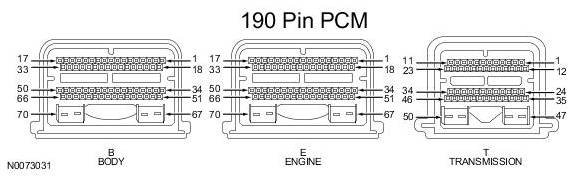

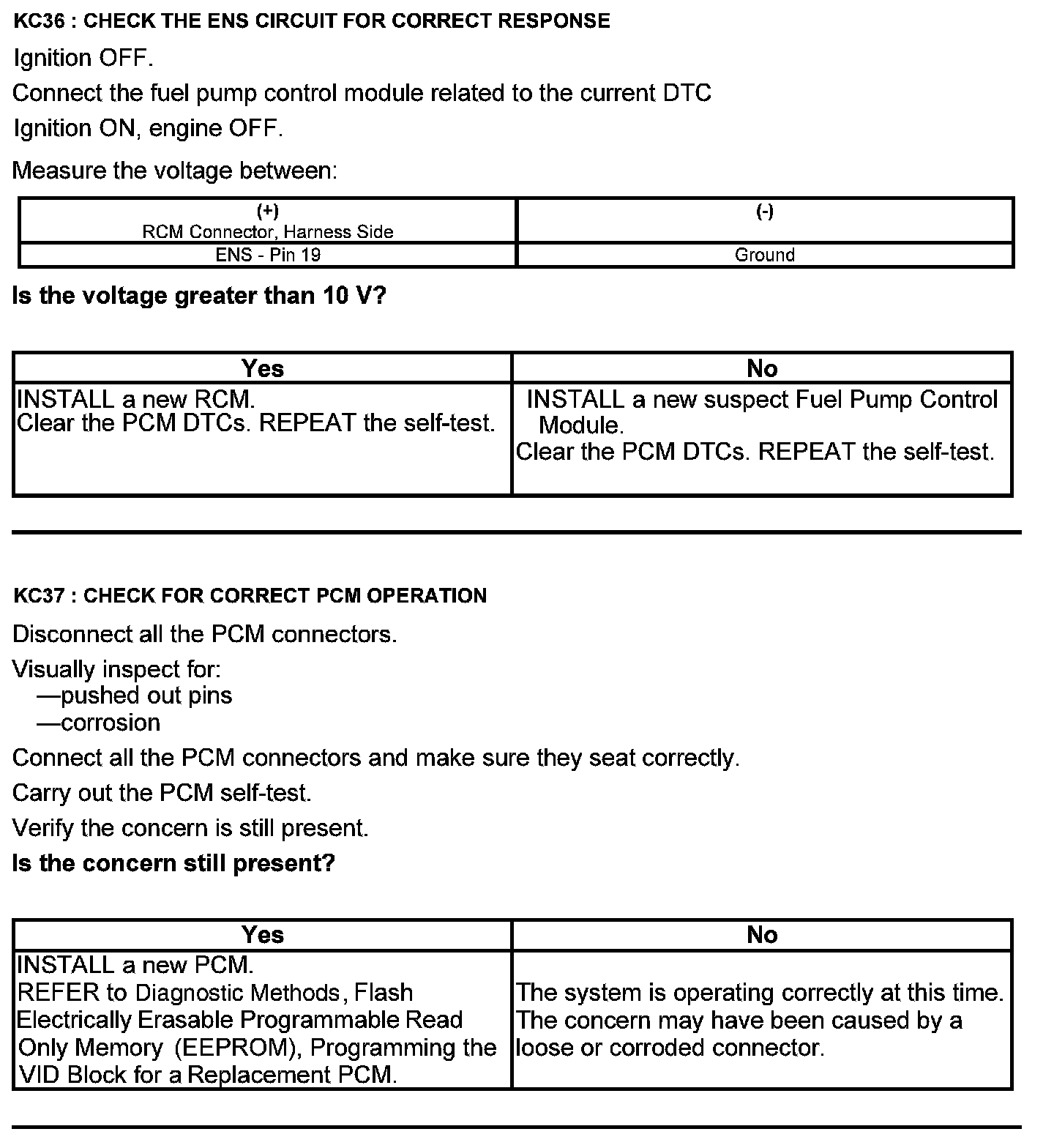

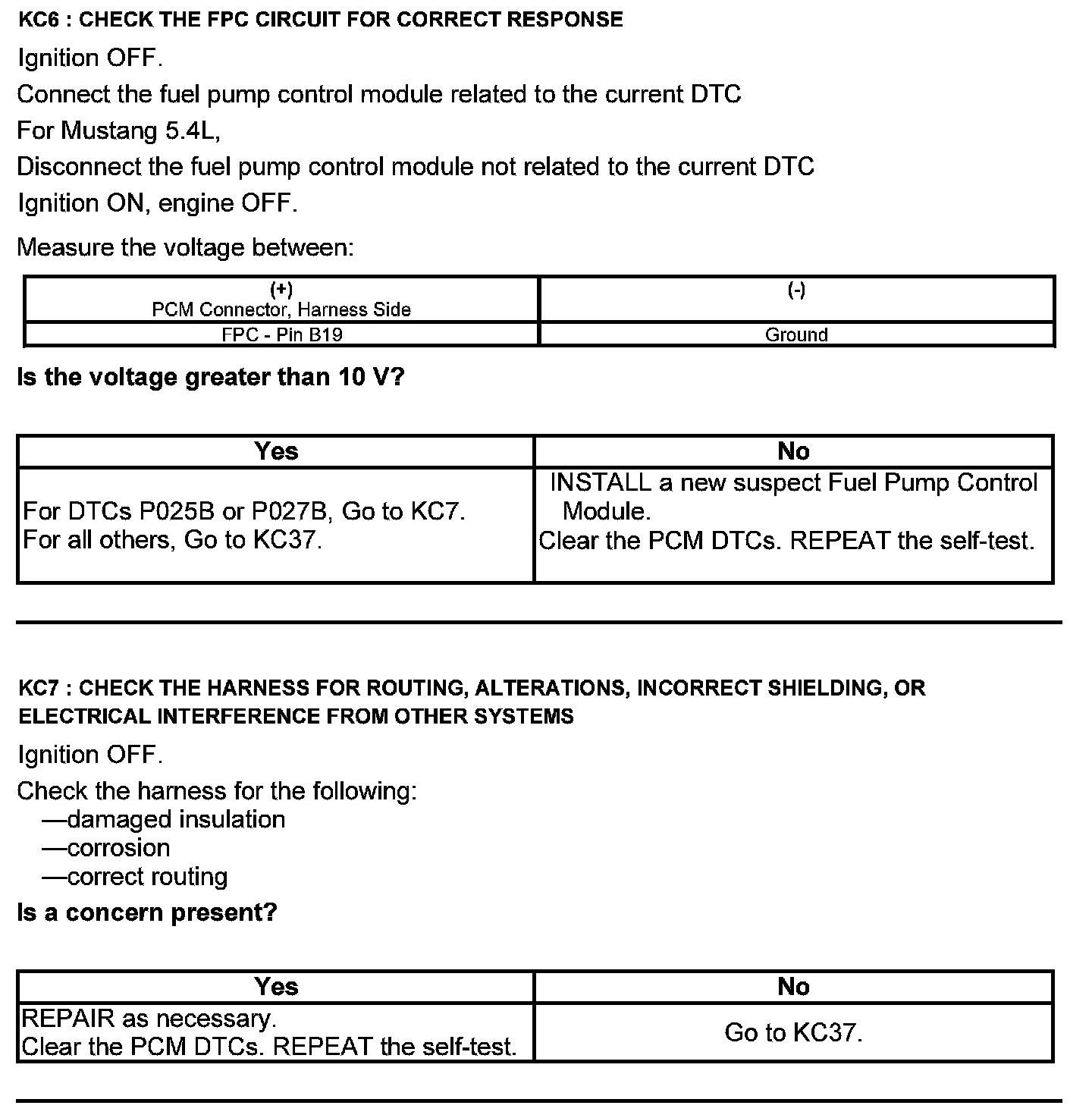

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
