Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor









NOTE: If the cylinder head is being replaced, the CHT must be replaced.

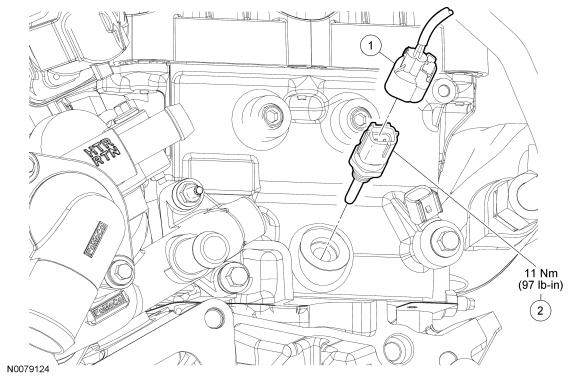

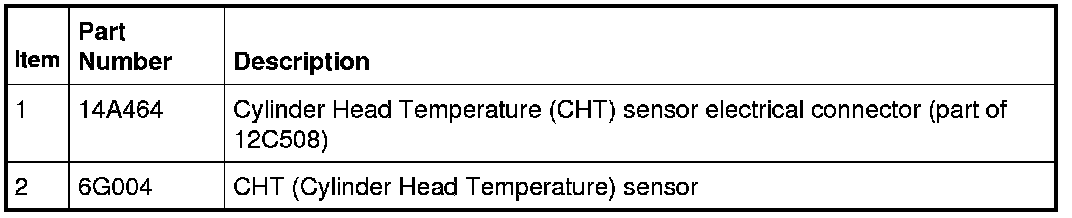

1. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

2. Remove the CHT (Cylinder Head Temperature) sensor.
- To install, tighten to 11 Nm (97 lb-in).


3. To install, reverse the removal procedure.
