Timing Cover

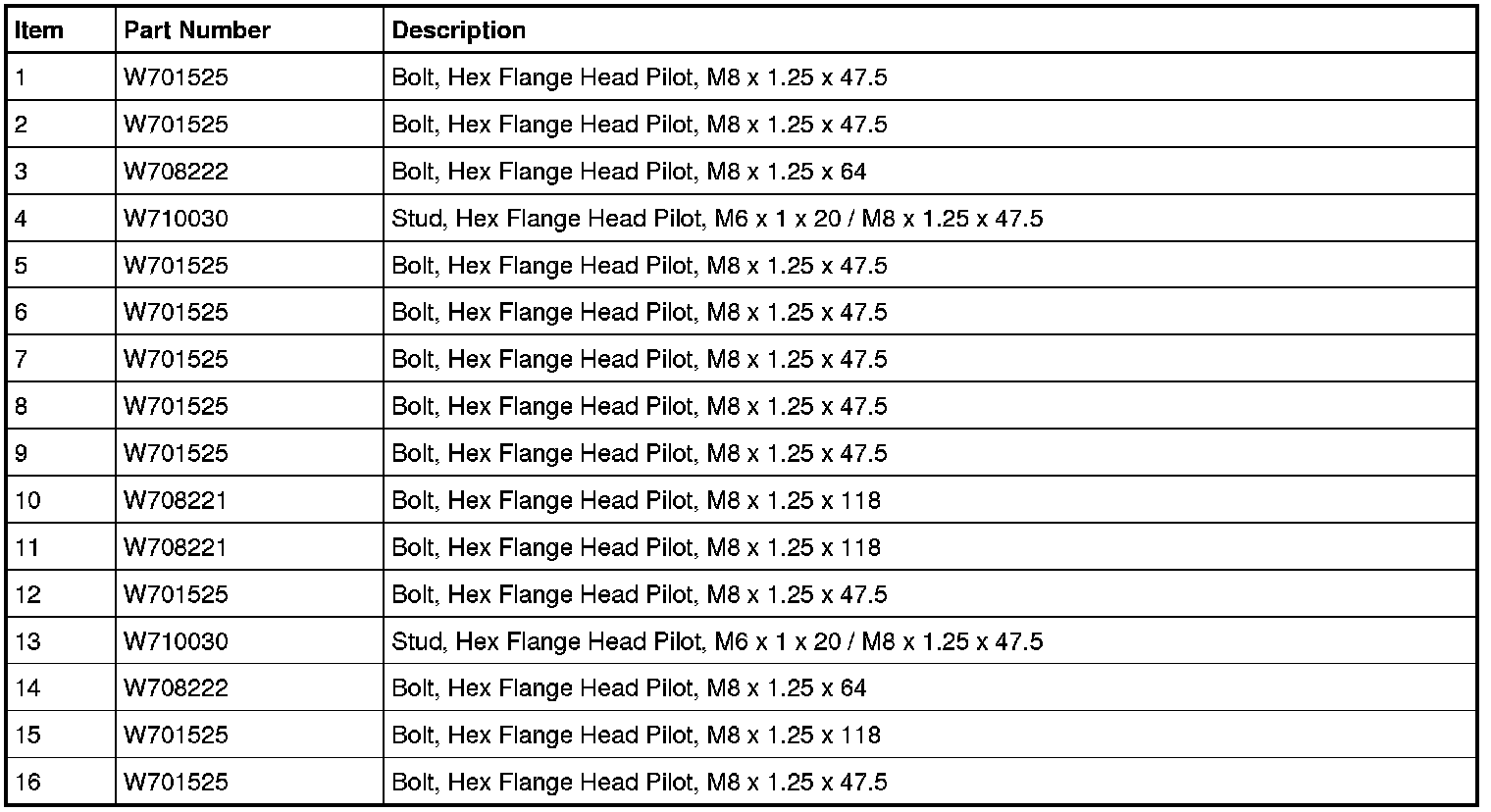

Position the engine front cover and install the bolts.

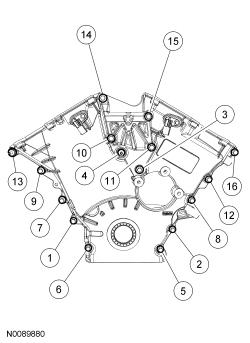

Tighten in the sequence shown to
25 Nm (18 lb-ft).
