Transfer Case

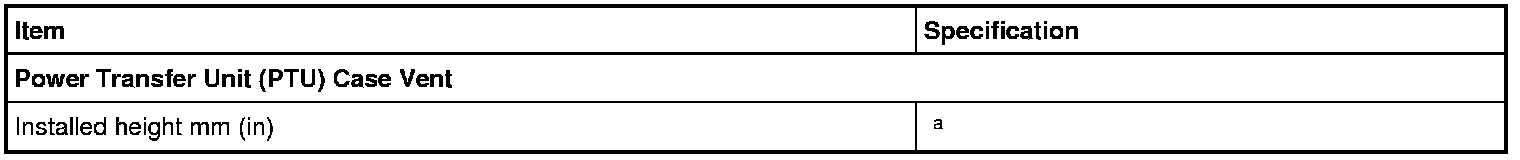

General Specifications





a Refer to the procedures in Transfer Case.

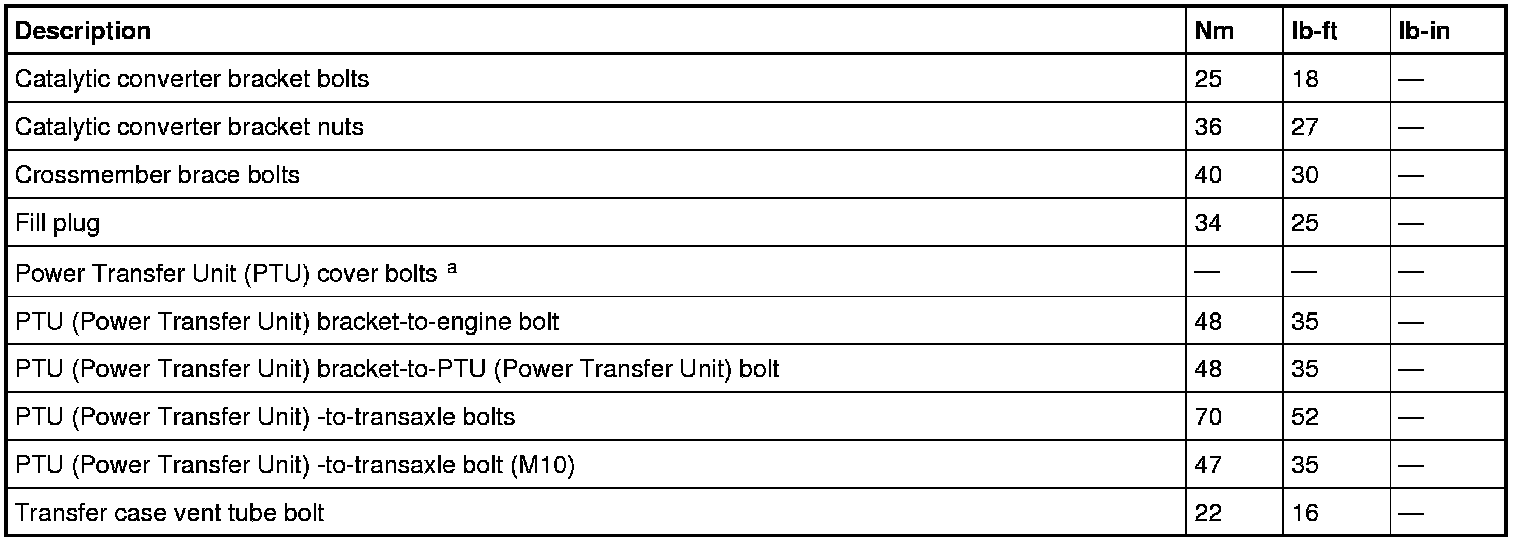

Torque Specifications





a Refer to the procedure in Transfer Case.
