Output Flange: Notes

SPECIAL TOOLS CHART

G07942028
 Holding Fixture, Drive Pinion Flange
205-126 (T78P-4851-A)

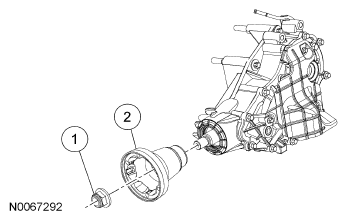

Fig 1: Identifying Pinion Flange And Nut
G06098386Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Pinion nut
2 7H457 Pinion flange
