Transfer Case Vent: Notes

SPECIAL TOOLS CHART

G07942033
 Installer, Vent Tube
308-584 or equivalent
GENERAL EQUIPMENT

Slide hammer with a 3 jaw puller attachment
MATERIAL SPECIFICATIONS

Item Specification
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4

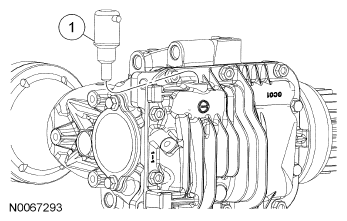

Fig 1: Identifying Transfer Case Vent
G06098391Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7034 Vent
