Anti-Lock Brake System (ABS) Module: Notes
NOTE:

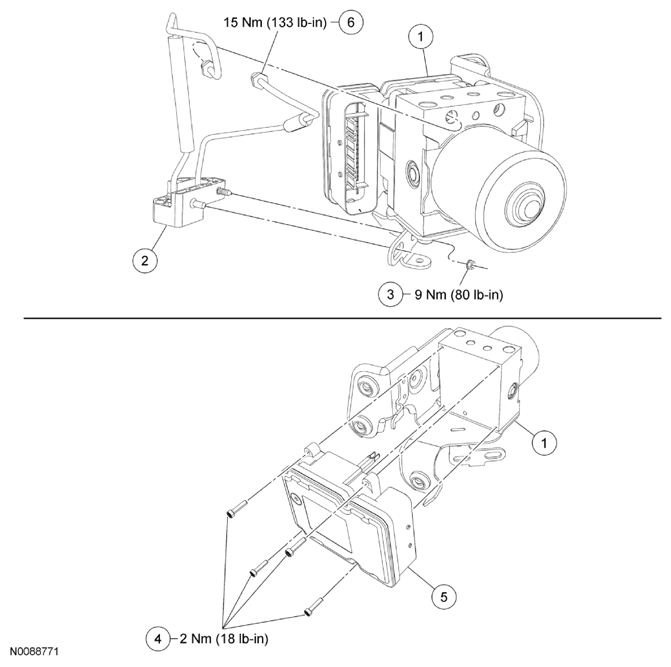

Non-hybrid vehicle shown in illustration, hybrid vehicle similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C215 | Hydraulic Control Unit (HCU) |
| 2 | 2C296 | Jumper tube assembly |
| 3 | W710899 | Jumper tube assembly bracket nut |
| 4 | 2M101 | ABS module screws (4 required) |
| 5 | 2C215 | ABS module |
| 6 | - | Jumper tube fitting (part of 2C296) |
