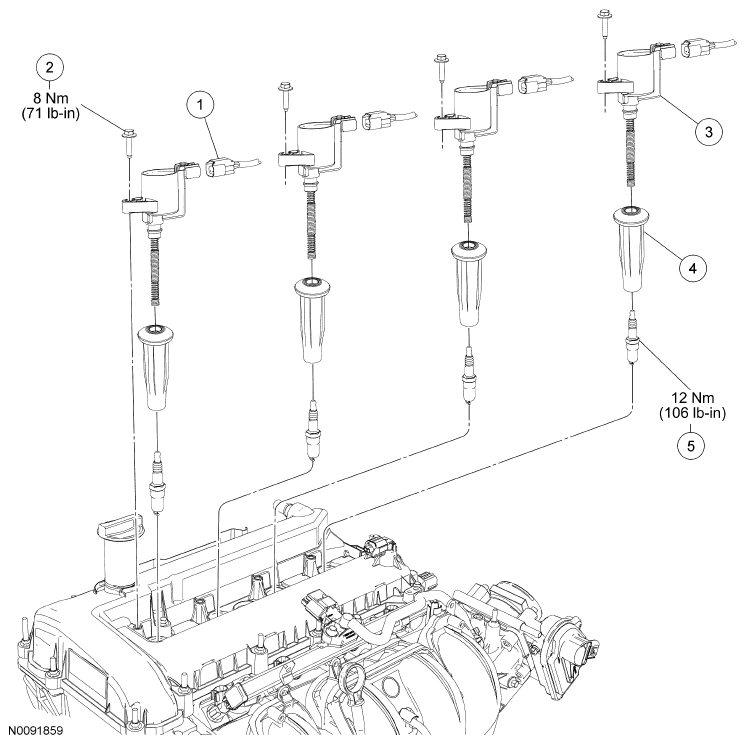

Engine Ignition Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Ignition coil electrical connector (4 required) |
| 2 | W500215 | Ignition coil bolt (4 required) |
| 3 | 12A366 | Ignition coil (4 required) |
| 4 | 12A402 | Coil boot (4 required) |
| 5 | 12405 | Spark plug (4 required) |
- For additional information, refer to the appropriate procedures in this service information.
