Home >> Ford >> 2012 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module >> C341B Driver Seat Module (DSM)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

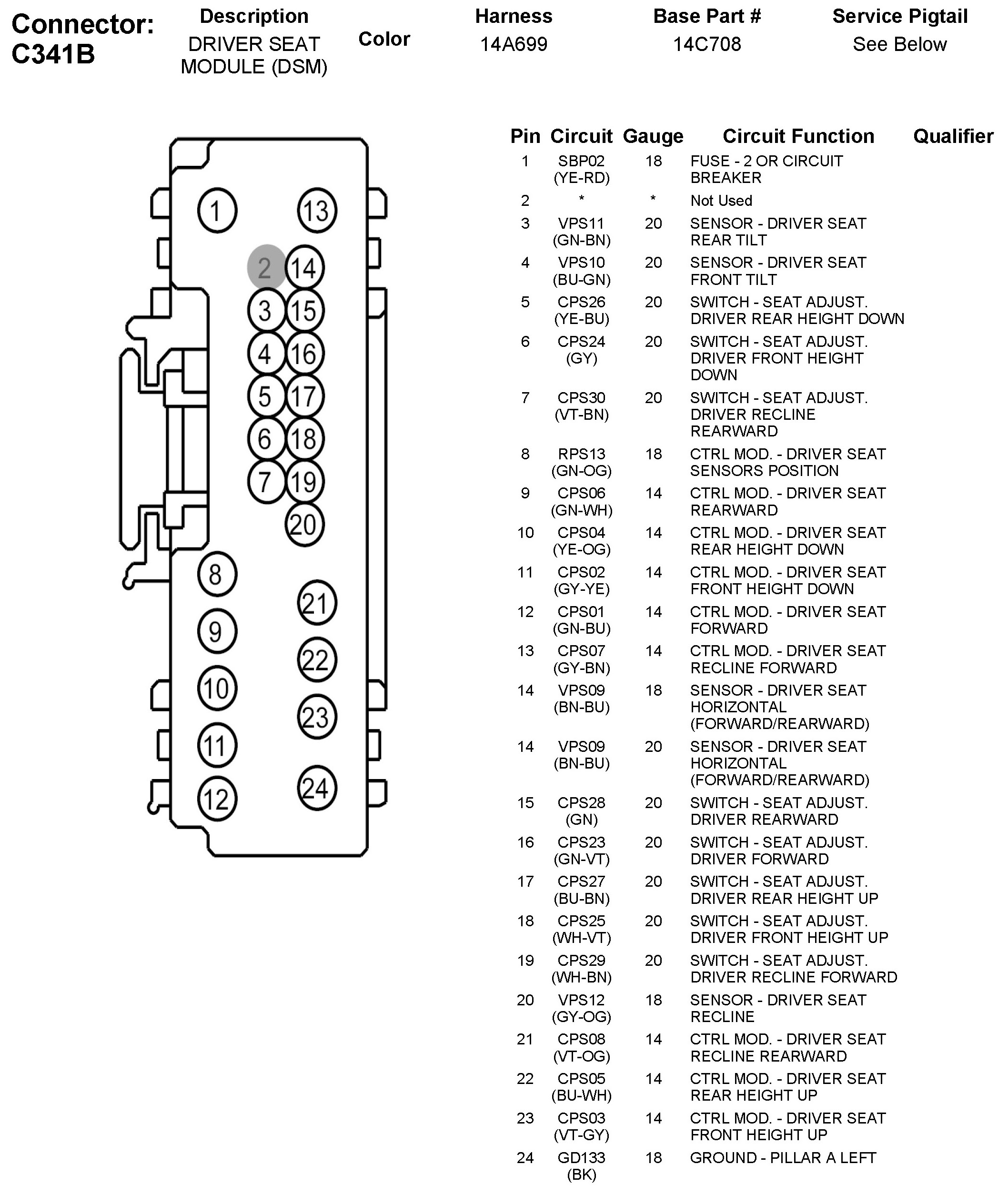

C341B Driver Seat Module (DSM)
