Intake Manifold

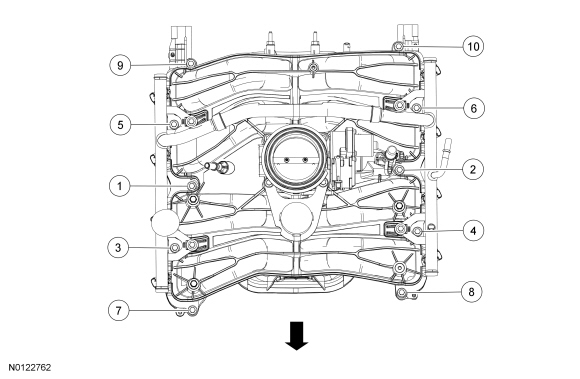

Install the 10 intake manifold bolts and tighten in 2 stages in the sequence shown.
Stage 1: Tighten to 2 Nm (18 lb-in).
Stage 2: Tighten to 10 Nm (89 lb-in).
