Climate Control System

Specifications

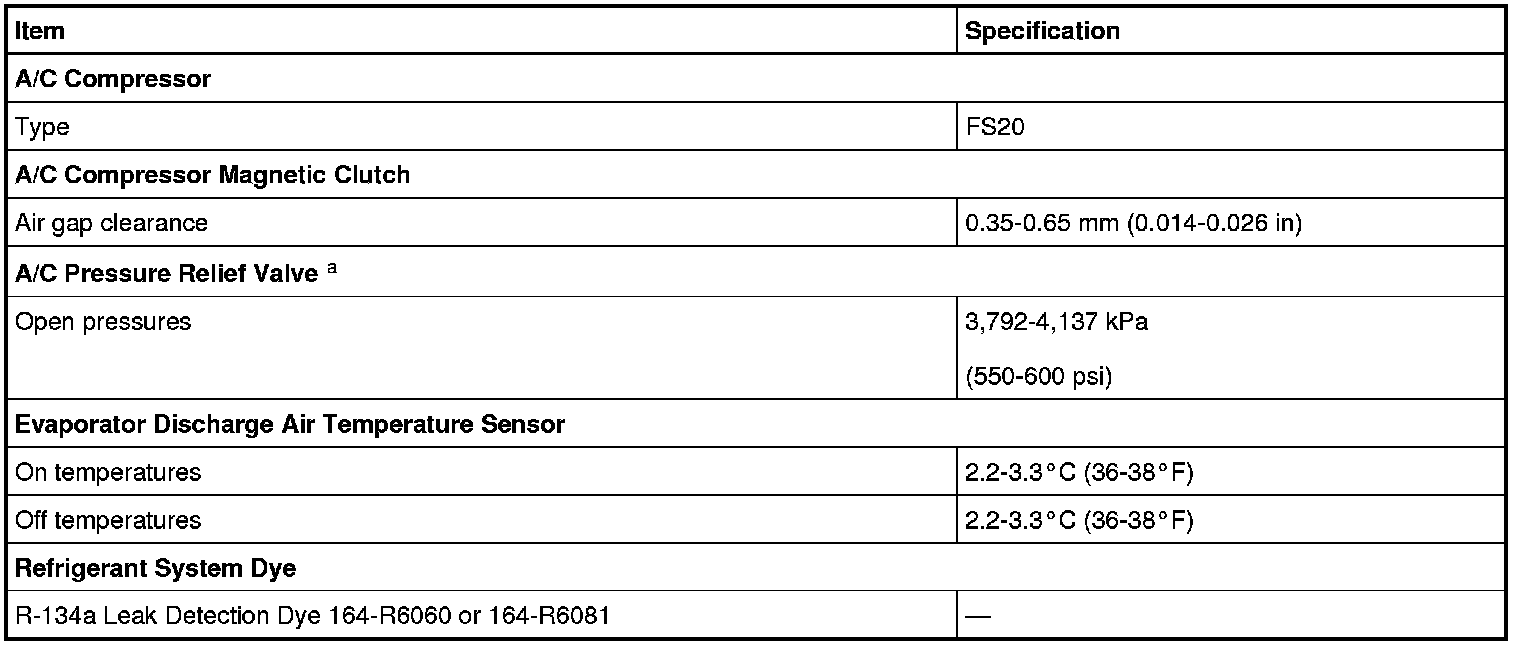

General Specifications





a Manifold gauge set pressures may vary slightly depending on the distance between the service gauge port valve and the A/C pressure relief valve, low charge protection and pressure cutoff switch locations.
