Ignition switch: Schematic

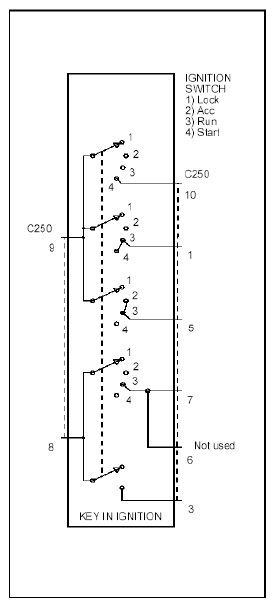

Fig 1: Ignition Switch Schematic Diagram
G07900662Courtesy of FORD MOTOR CO.
