Information and Entertainment Systems - Premium

Audio Control Module (ACM)

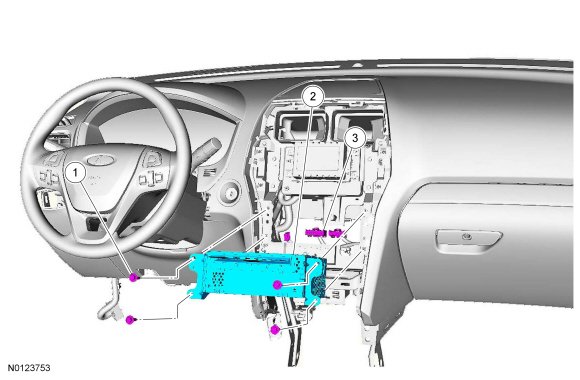

Exploded View










Removal

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Upload the ACM (Audio Control Module) configuration information to the scan tool by following the scan tool on screen instructions.

2. Remove the FCIM (Front Controls Interface Module). REFER to Front Controls Interface Module (FCIM).

3. Remove the 4 screws and the ACM (Audio Control Module).
- To install, tighten to 2 Nm (18 lb-in).

1. Disconnect the electrical connectors.

Installation

1. To install, reverse the removal procedure.

2. Download the ACM (Audio Control Module) configuration information from the scan tool to the new ACM (Audio Control Module) following the scan tool on screen instructions.
