Climate Control - EMTC

Heating Ventilation Air Conditioning (HVAC) Module

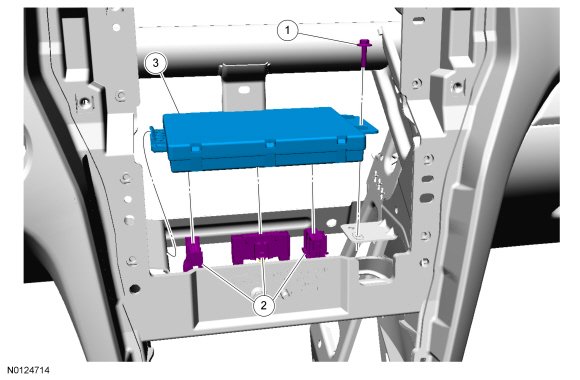

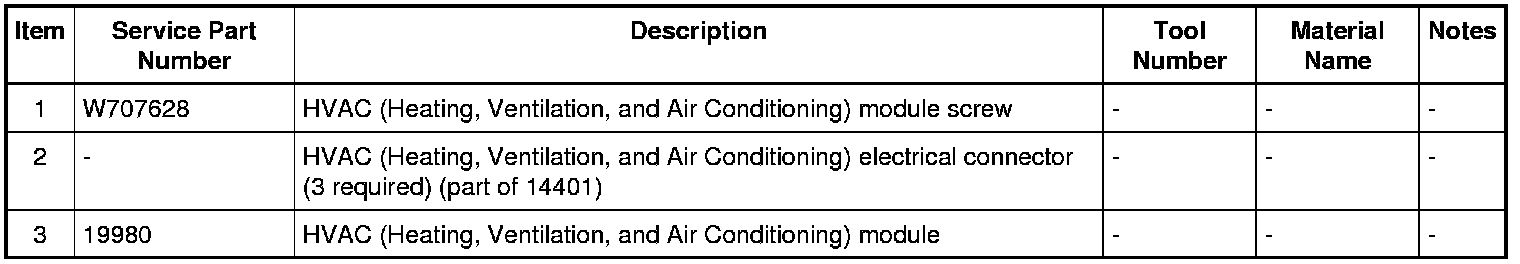

Exploded View










Removal

1. Remove the ACM (Audio Control Module). REFER to Audio Control Module (ACM) .

2. Remove the HVAC (Heating, Ventilation, and Air Conditioning) module.

1. Remove the HVAC (Heating, Ventilation, and Air Conditioning) module screw.

2. Disconnect the HVAC (Heating, Ventilation, and Air Conditioning) module electrical connectors.

3. Remove the HVAC (Heating, Ventilation, and Air Conditioning) module.

Installation

1. Install the HVAC (Heating, Ventilation, and Air Conditioning) module.

1. Install the HVAC (Heating, Ventilation, and Air Conditioning) module.

2. Connect the HVAC (Heating, Ventilation, and Air Conditioning) module electrical connectors.

3. Install the HVAC (Heating, Ventilation, and Air Conditioning) module screw.

2. Install the ACM (Audio Control Module). REFER to Audio Control Module (ACM) .
