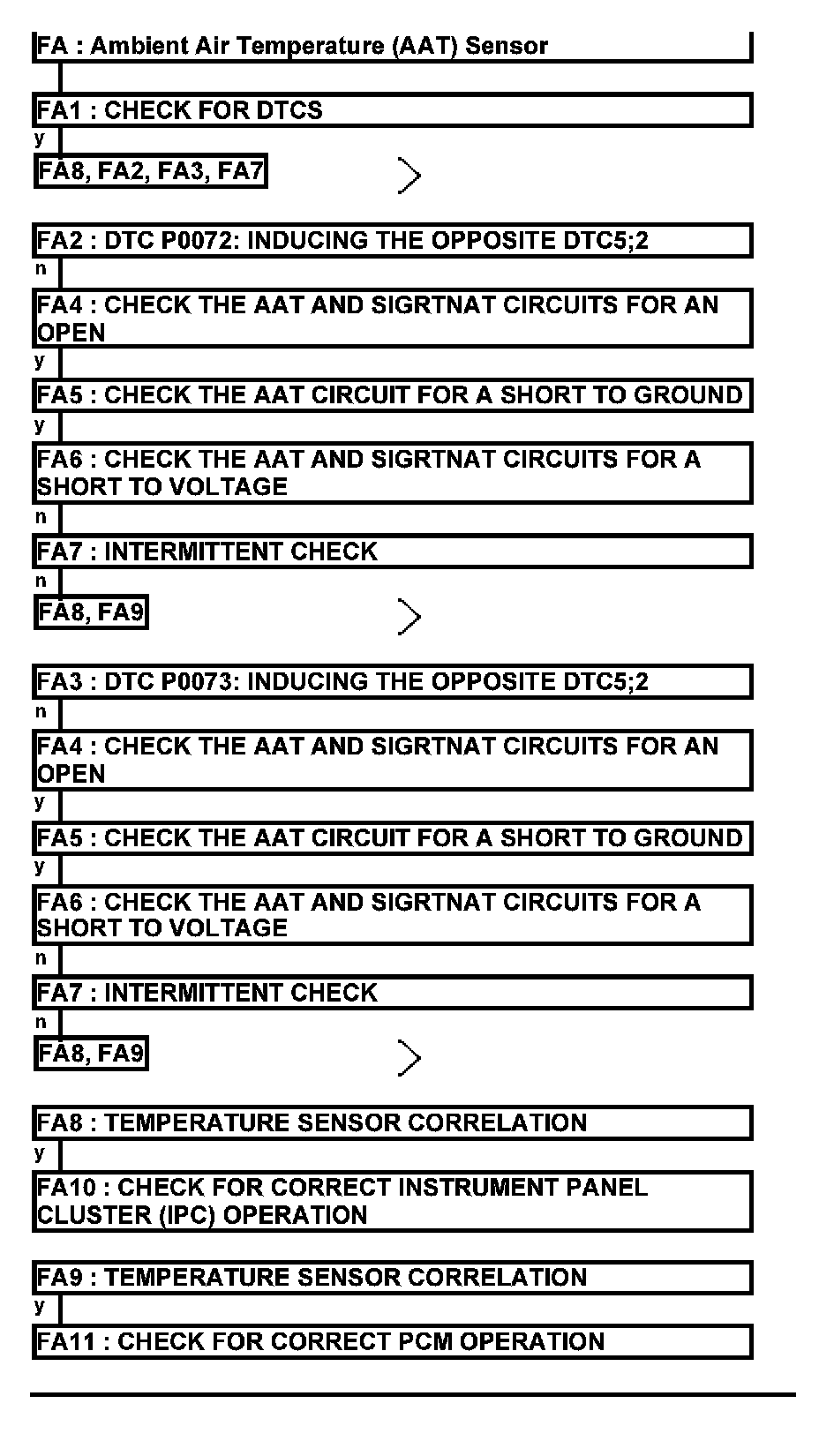

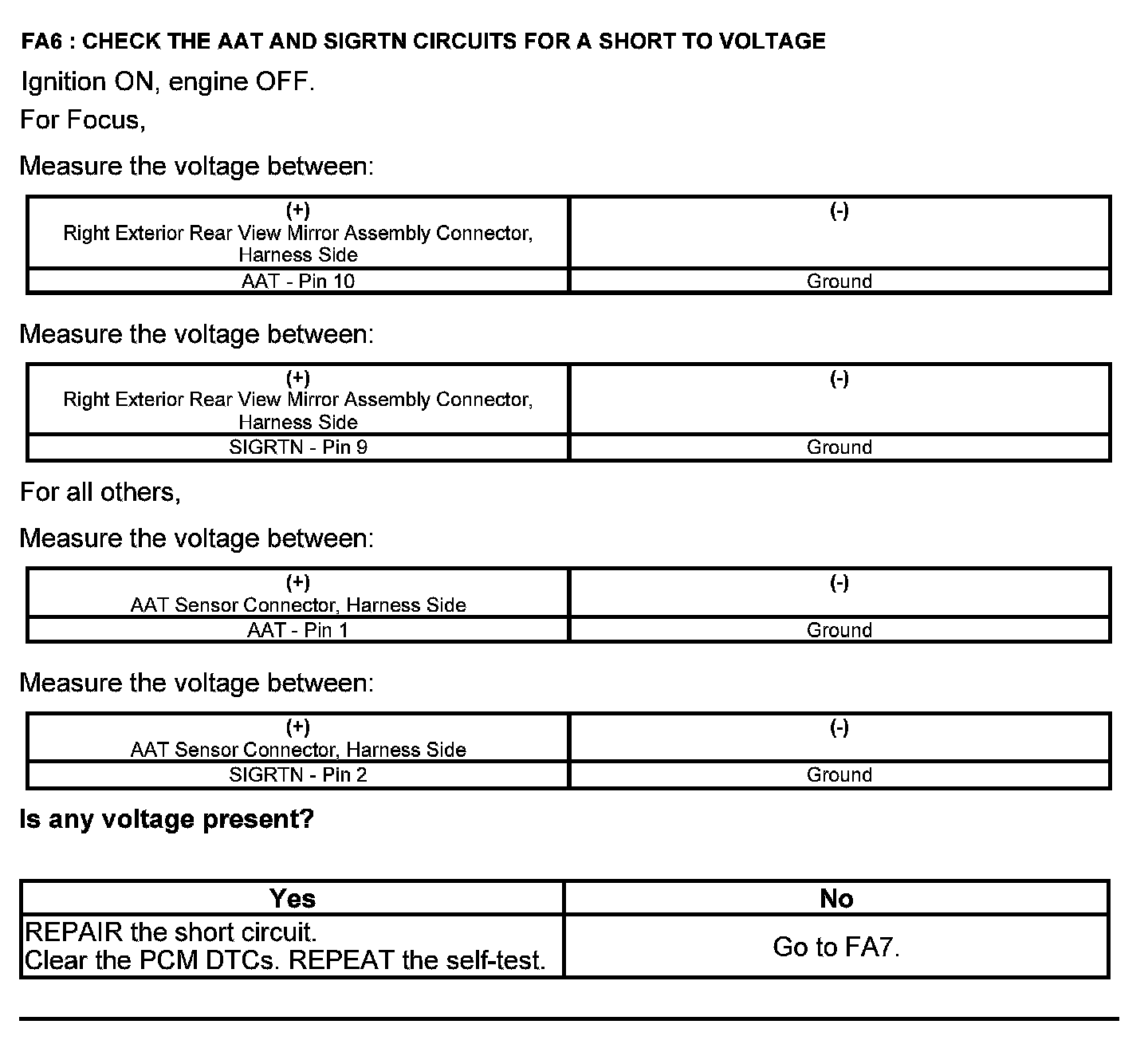

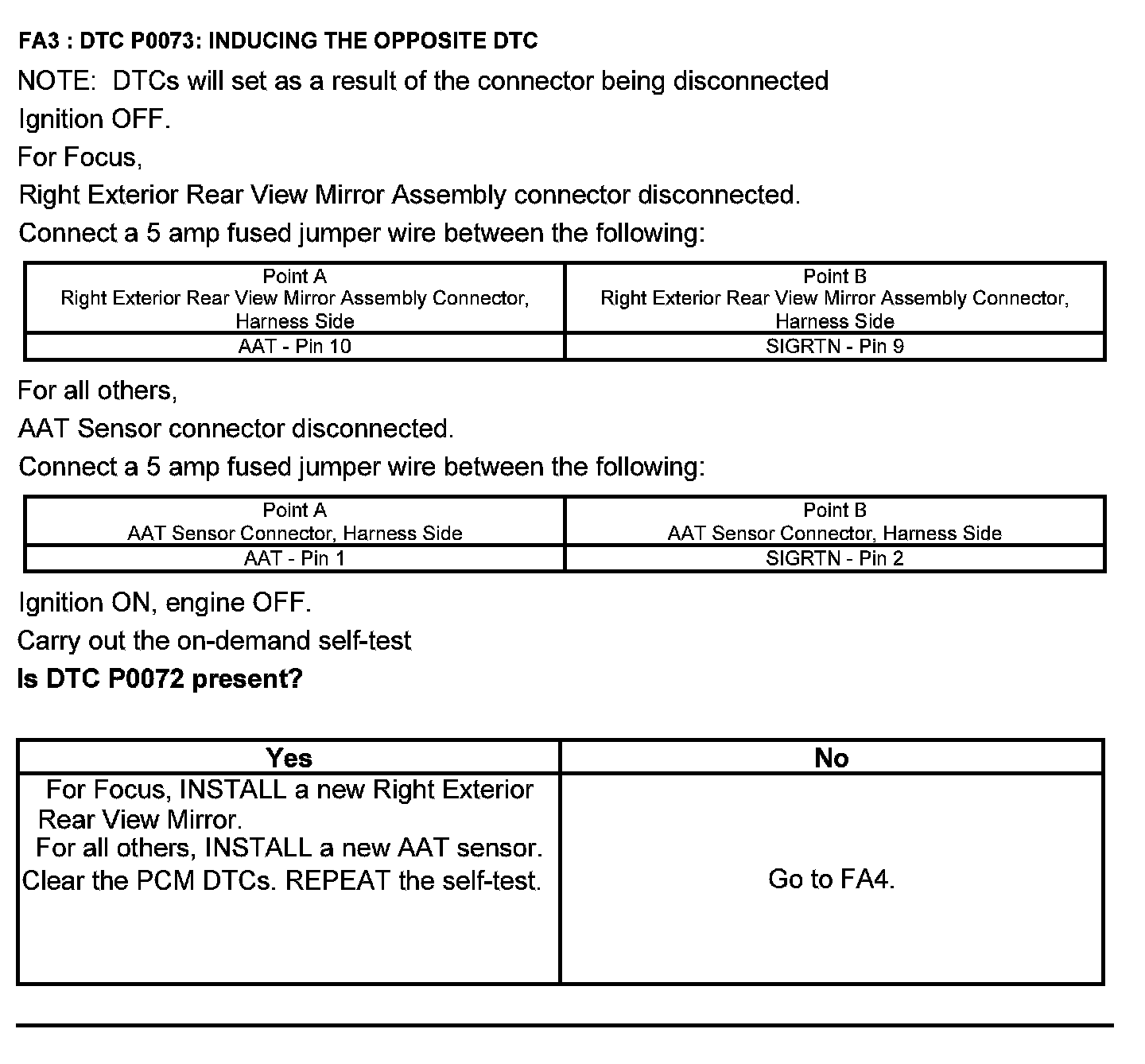

Test FA: Ambient Air Temperature (AAT) Sensor
Ambient Air Temperature (AAT) Sensor

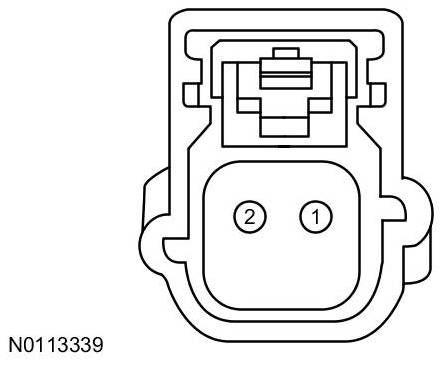

Ambient Air Temperature (AAT) Sensor Connector
Harness Side

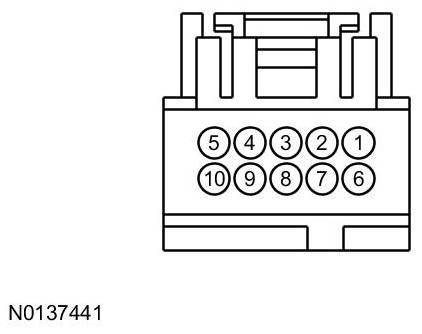

Right Exterior Rear View Mirror Assembly Connector
Harness Side

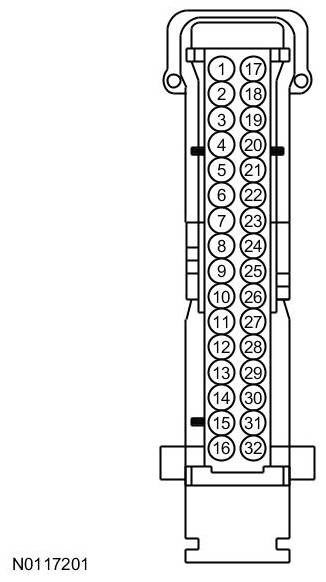

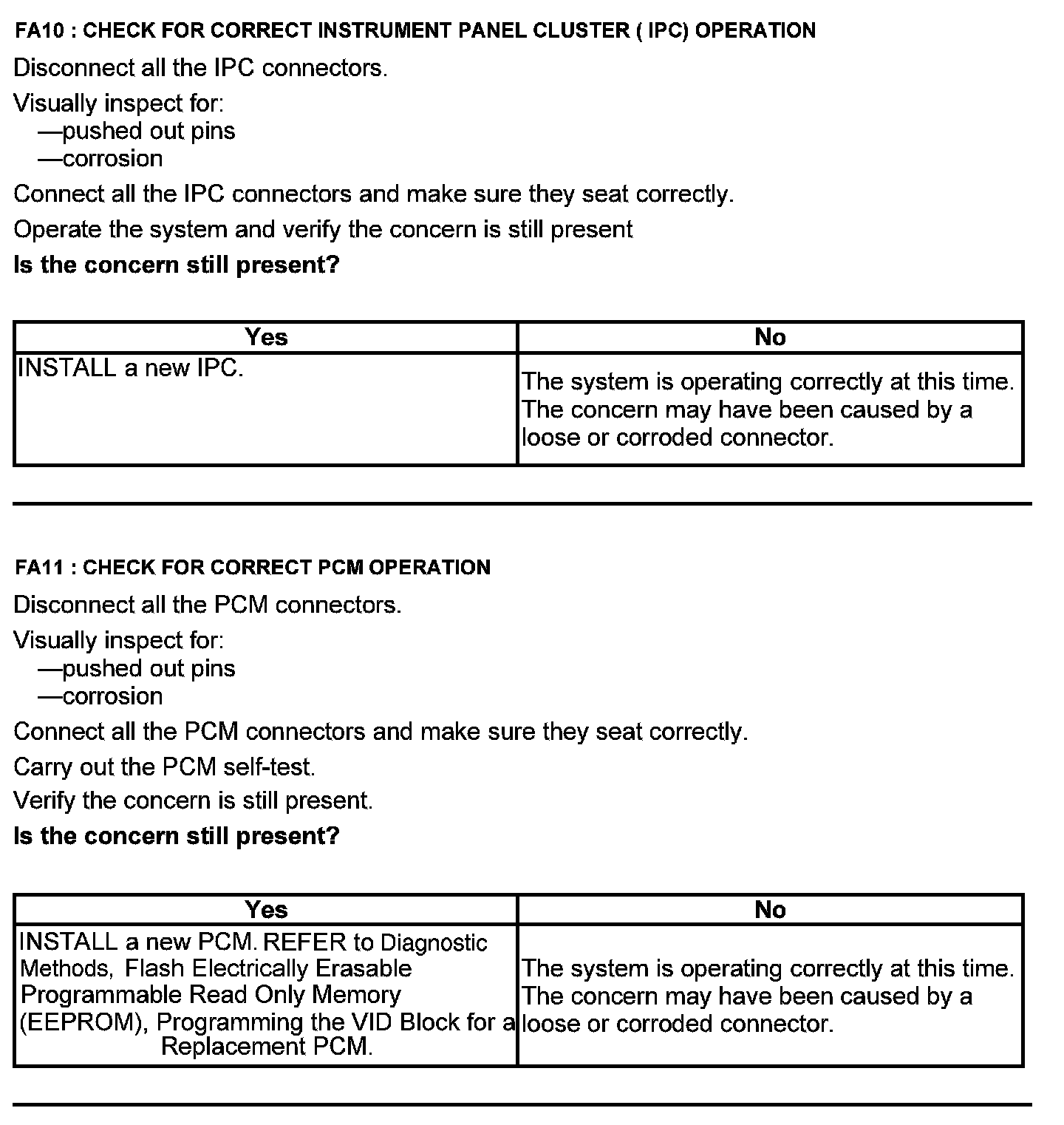

Instrument Panel Cluster (IPC) Connector
Harness Side

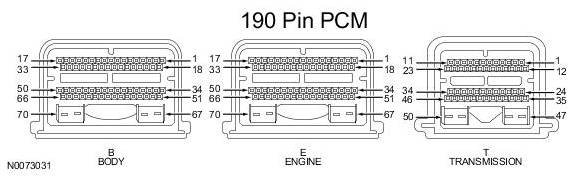

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
