All-Wheel Drive (AWD) Relay Module

All-Wheel Drive (AWD) Relay Module

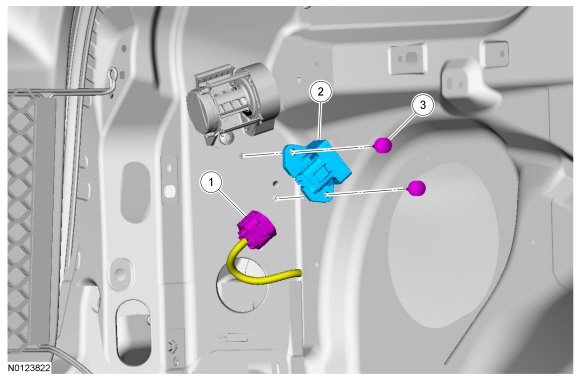

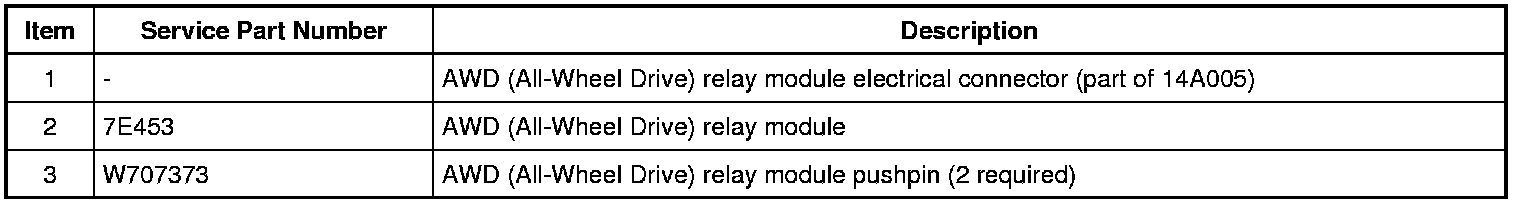

Exploded View










Removal

1. Remove the LH (Left Hand) quarter trim panel. REFER to Removal with inflatable safety belts or REFER to Removal without inflatable safety belts.

2. Disconnect the AWD (All-Wheel Drive) relay module electrical connector.

3. Remove the 2 pushpins and the AWD (All-Wheel Drive) relay module.

Installation

1. Install the AWD (All-Wheel Drive) relay module and the 2 pushpins.

2. Connect the AWD (All-Wheel Drive) relay module electrical connector.

3. Install LH (Left Hand) quarter trim panel. REFER to Installation with inflatable safety belts or REFER to Installation without inflatable safety belts.
