Exploded View

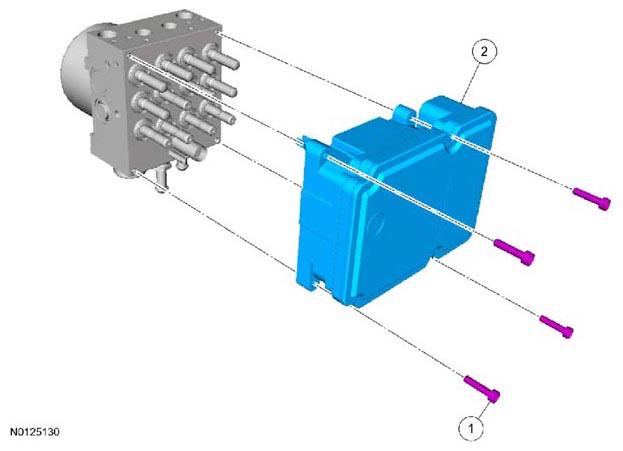

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module

Courtesy of FORD MOTOR CO.

Item	Service Part Number	Description	Torque	Material Name	Notes
1	W302577	ABS module screw (4 required) (also part of 2C219 )	2 Nm (18 lb-in)	-	-
2	2C219	ABS module	-	-	-
