Exploded View

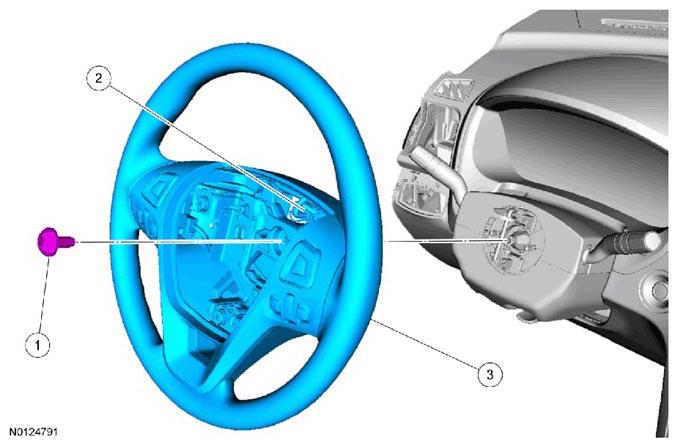

Fig 1: Identifying Steering Wheel Components
G07417481Courtesy of FORD MOTOR CO.
Item Service Part Number Description Tool Number Material Name Notes
1 W708887  Steering wheel bolt - - 48 Nm (35 lb-ft)
2 - Steering wheel switches electrical connector (part of 3600  ) - - -
3 3600  Steering wheel - - -
