LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Ford
>>
2012
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
C2280C Body Control Module (BCM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

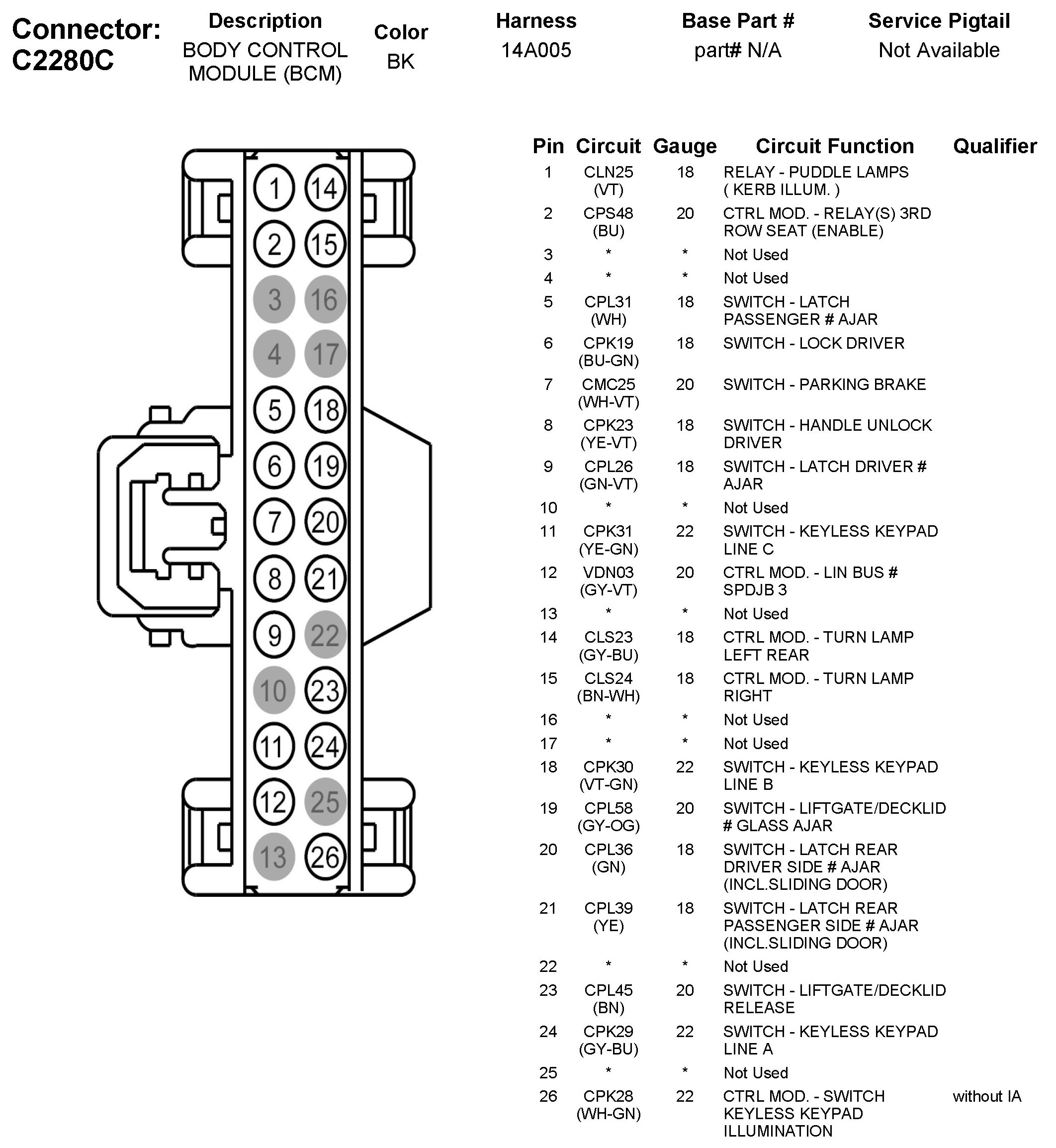

C2280C Body Control Module (BCM)
