Steering Column Control Module
>>
C2414A Steering Column Control Module (SCCM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

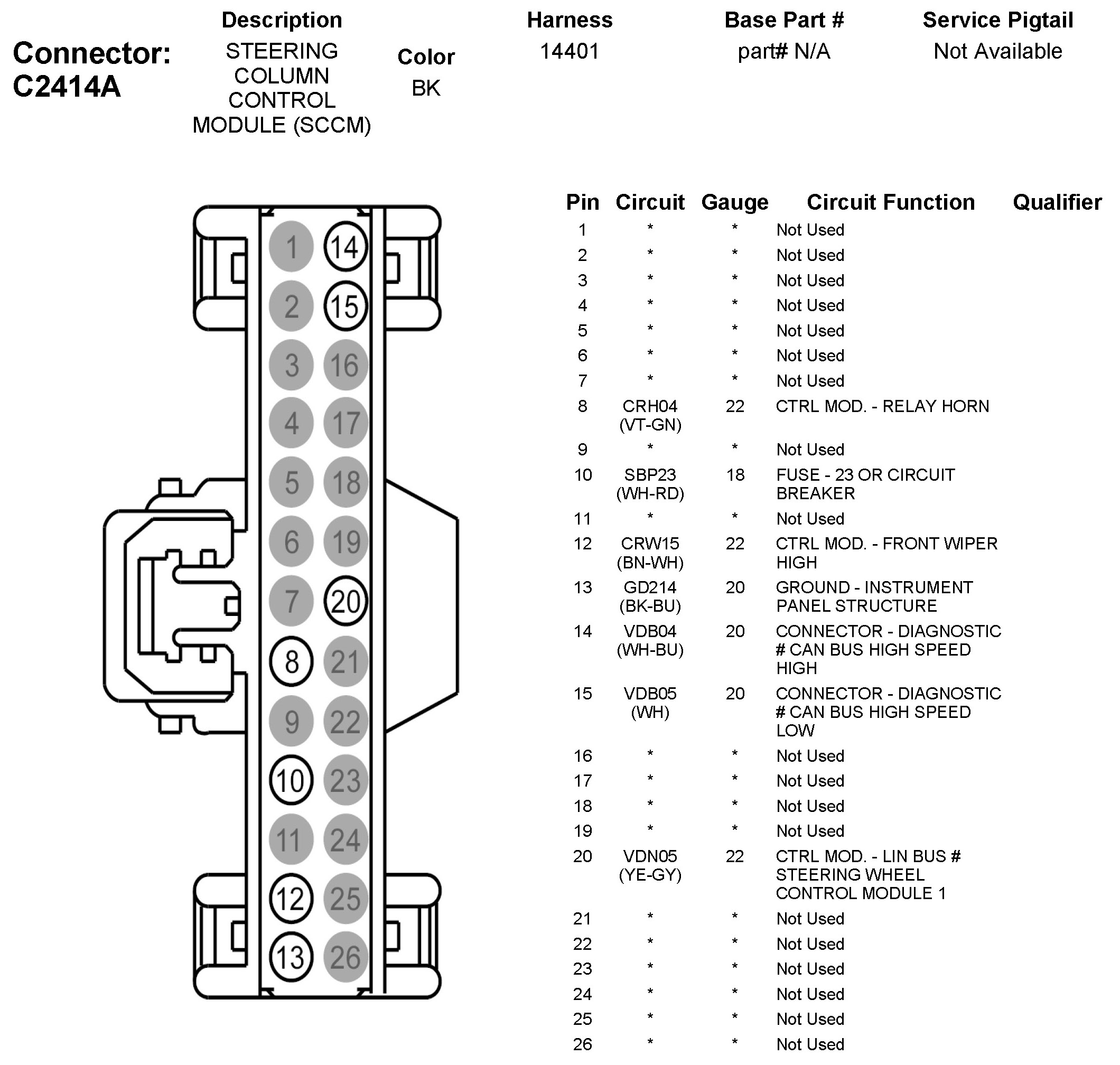

C2414A Steering Column Control Module (SCCM)
