Exhaust System

Exhaust System - Exploded View

Exploded View

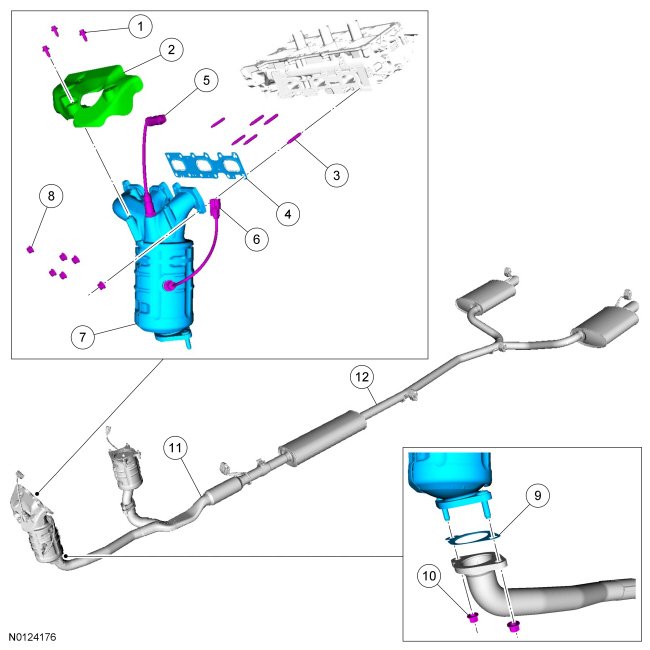

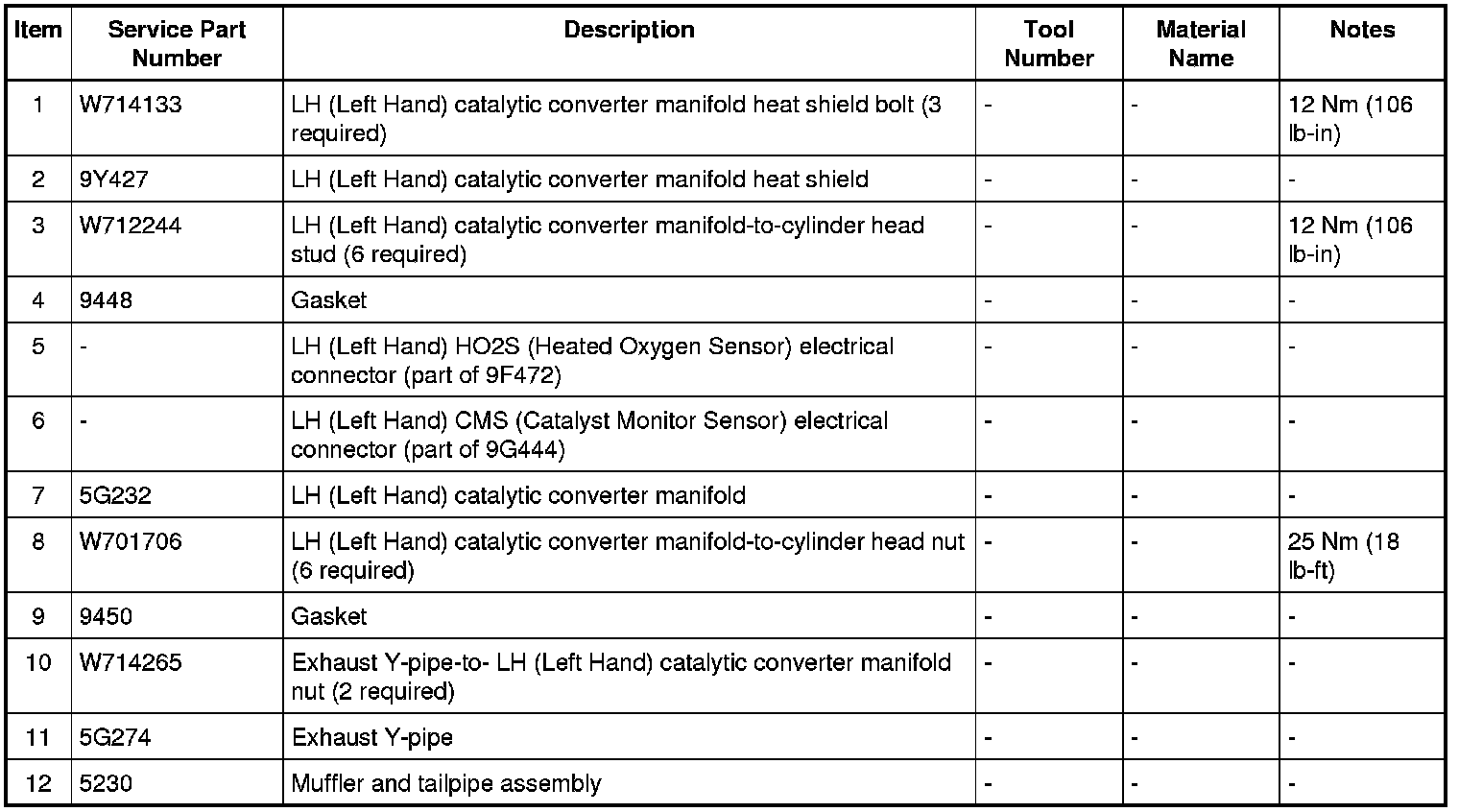

3.5L LH Catalytic Converter and Exhaust Pipes

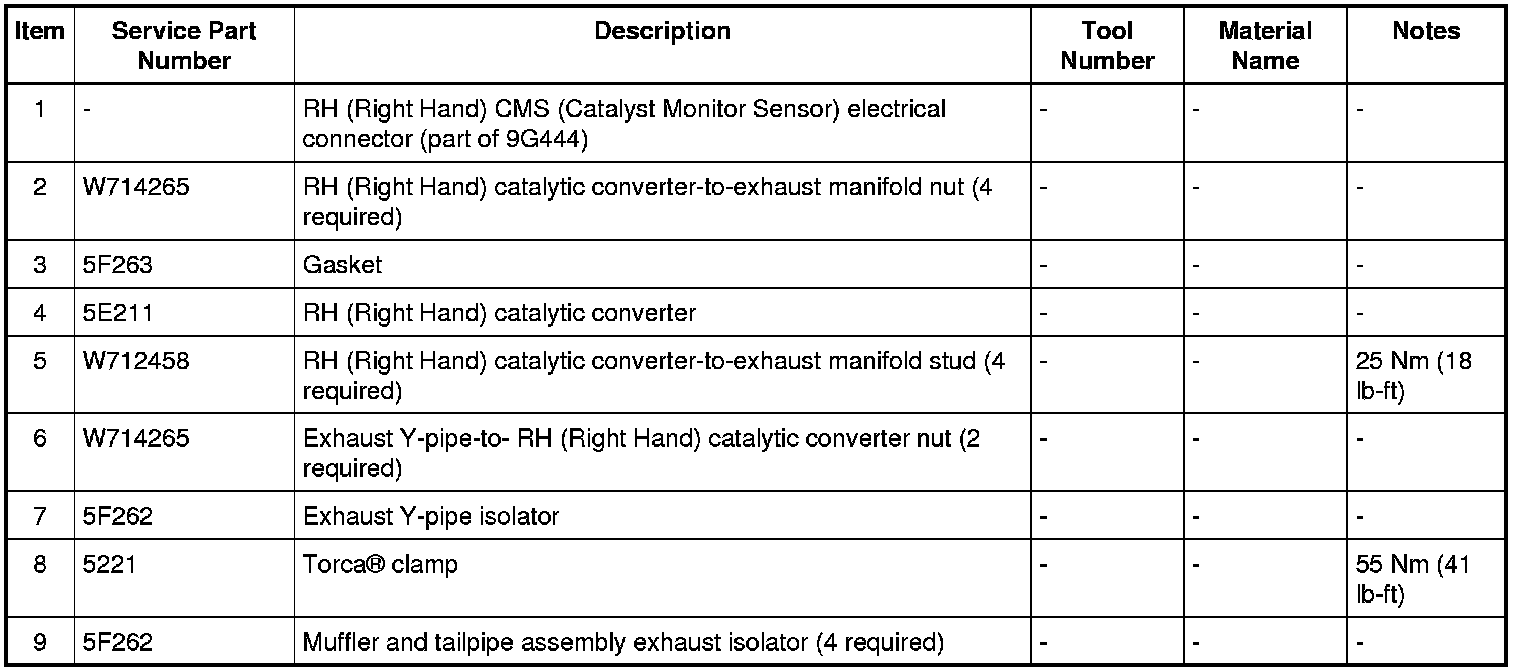

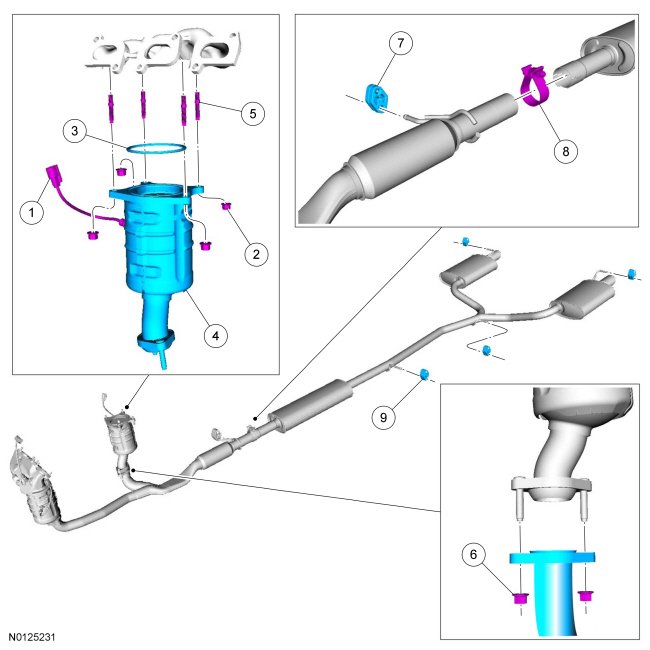

3.5L RH Catalytic Converter and Exhaust Pipes









Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
