Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor - 3.5L Ti-VCT

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

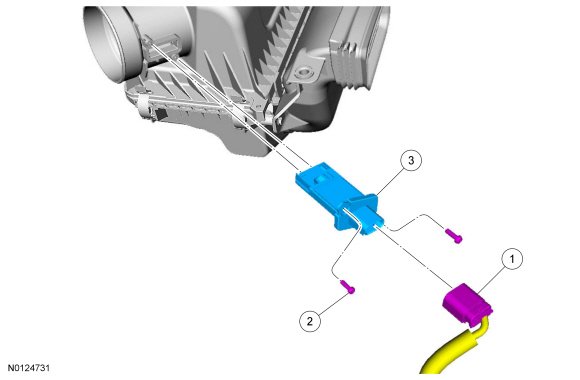

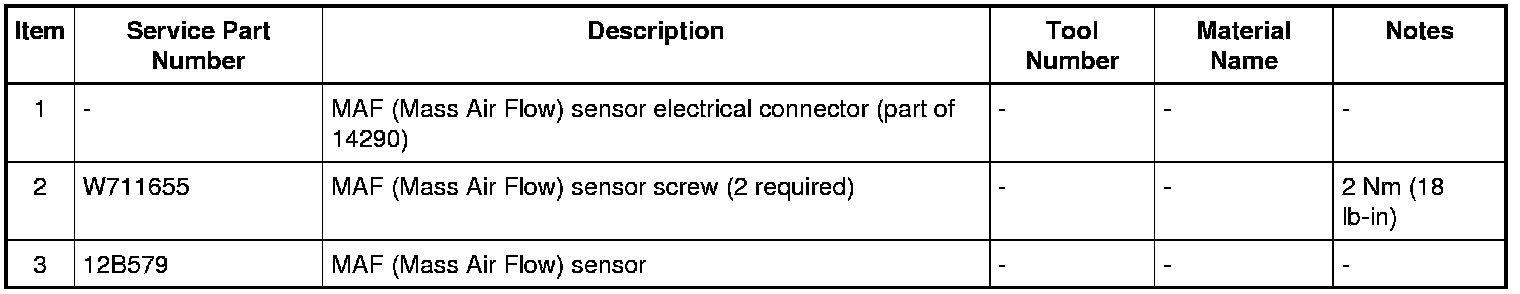

Exploded View










Removal

1. Disconnect the MAF (Mass Air Flow) sensor electrical connector.

2. Remove the 2 screws and the MAF (Mass Air Flow) sensor.

Installation

1. Install the MAF (Mass Air Flow) sensor and the 2 screws.
- Tighten to 2 Nm (18 lb-in).

2. Connect the MAF (Mass Air Flow) sensor electrical connector.
