Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor - 3.5L Ti-VCT

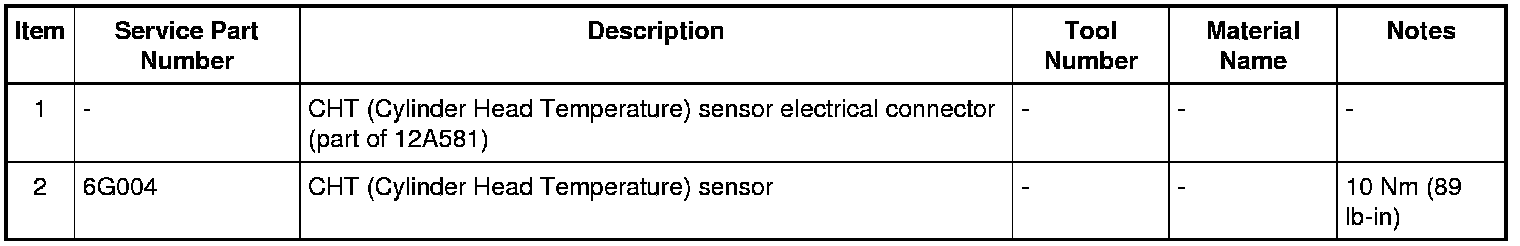

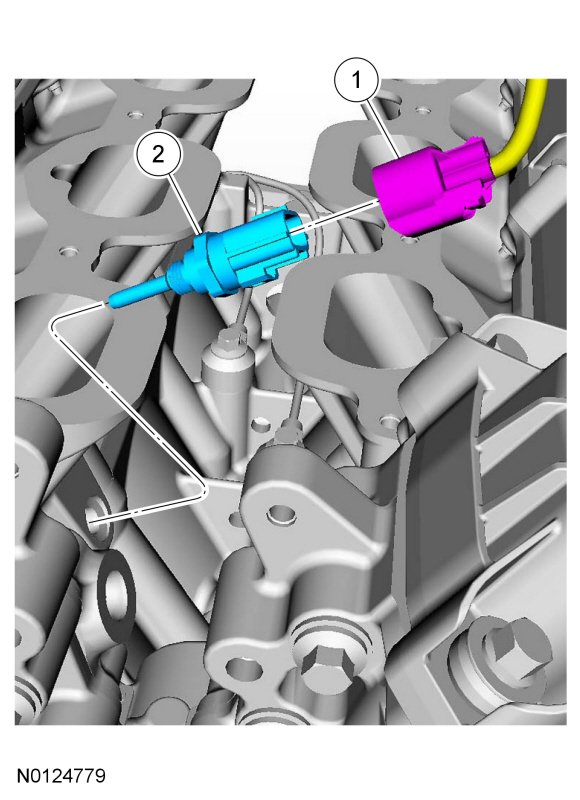

Exploded View










Removal

1. Remove the lower intake manifold. REFER to Lower Intake Manifold .

2. Disconnect the CHT (Cylinder Head Temperature) sensor electrical connector.

3. Remove and discard the CHT (Cylinder Head Temperature) sensor.

Installation

1. NOTE: Do not reuse the CHT (Cylinder Head Temperature) sensor, install a new sensor.
Install a new CHT (Cylinder Head Temperature) sensor.
- Tighten to 10 Nm (89 lb-in).

2. Connect the CHT (Cylinder Head Temperature) sensor electrical connector.

3. Install the lower intake manifold. REFER to Lower Intake Manifold .
