Ignition Lock Cylinder Housing

Ignition Lock Cylinder Housing

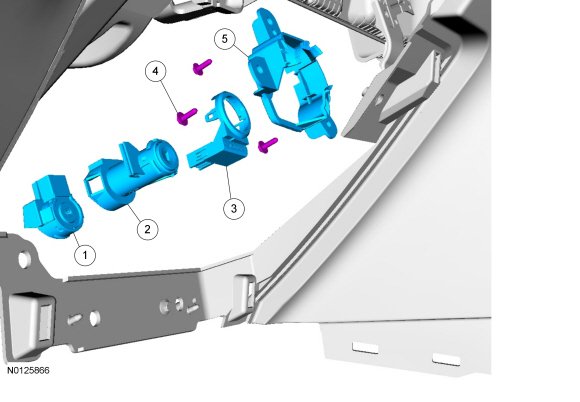

Exploded View










Removal

1. If equipped with Premium Audio, remove the FCDIM (Front Control/Display Interface Module). REFER to Front Control Display Interface Module (FCDIM) .

2. If equipped with Premium Plus Audio or Sony(R) Sound, remove the FDIM (Front Display Interface Module). Premium Plus: REFER to Front Display Interface Module (FDIM) orSony(R) Sound REFER to Front Display Interface Module (FDIM) .

3. Insert a non-marring tool between the ignition lock cylinder bezel and the instrument panel and pry outward.

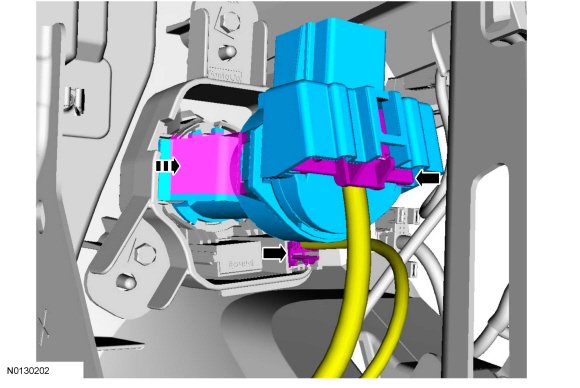

4. NOTE: Ignition lock cylinder housing shown from behind to show location of tab.
Remove the ignition lock cylinder housing.

1. Push the tab to release the ignition lock cylinder housing.

2. Disconnect the 2 electrical connectors.






Installation

1. To install, reverse the removal procedure.
