Control Components - Exploded View




Control Components - Exploded View

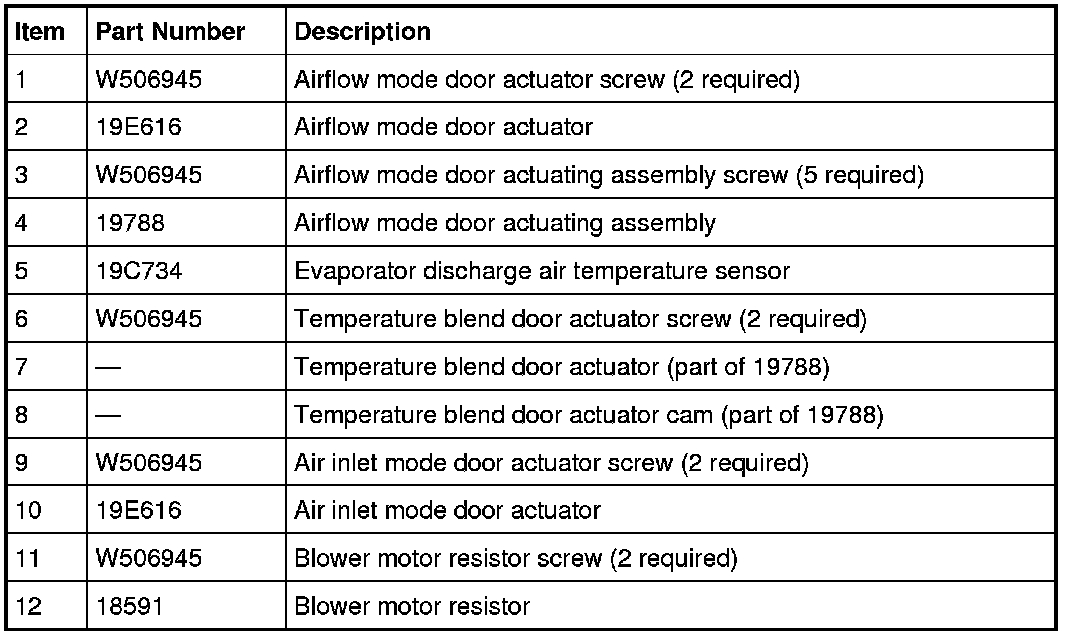

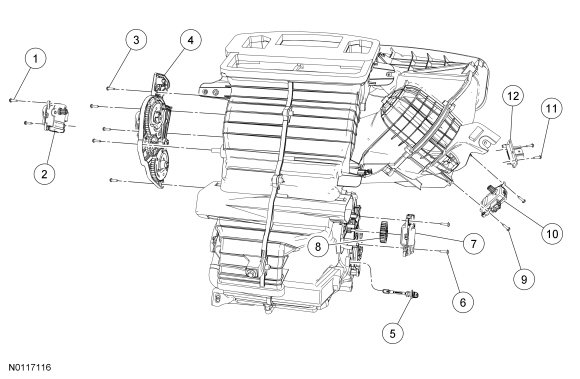

HVAC Housing

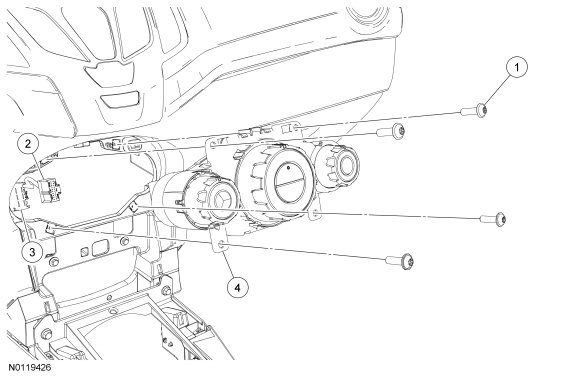

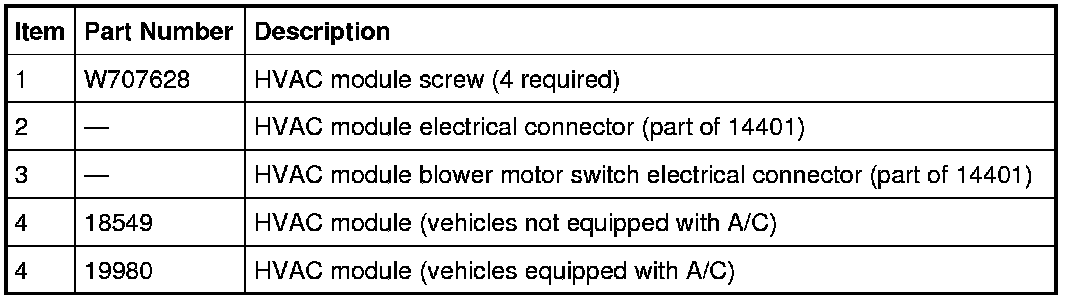

HVAC Control Components










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
