Parking Brake System

Parking Brake - Exploded View

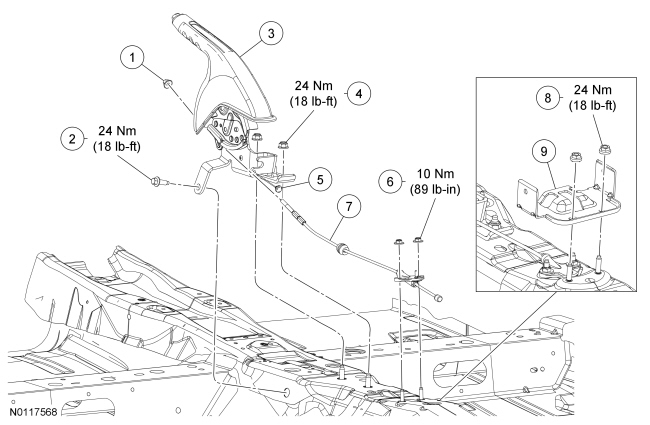

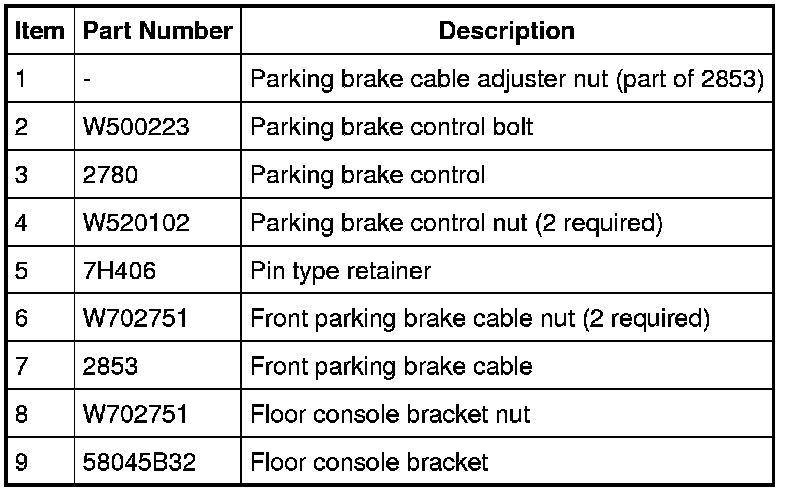

Parking Brake Control

NOTE: The parking brake switch is not serviced separately . If a new parking brake switch is needed, a new parking brake control must be installed.

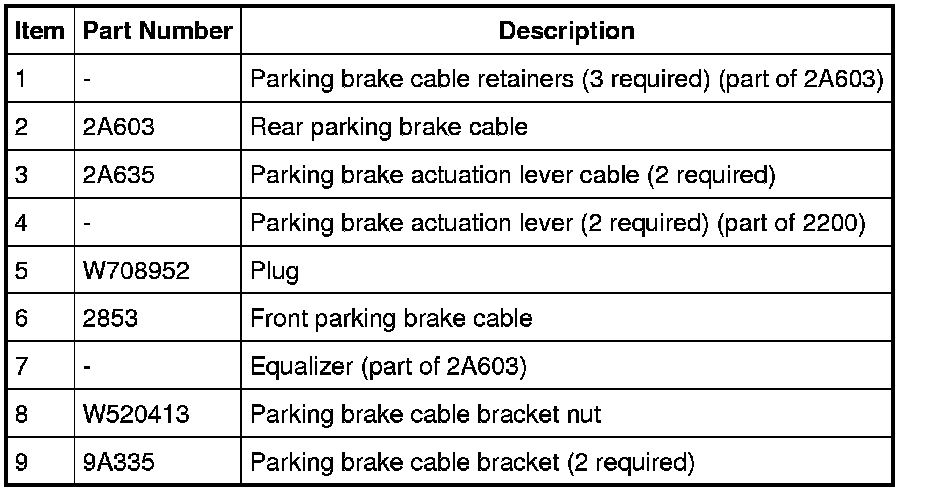

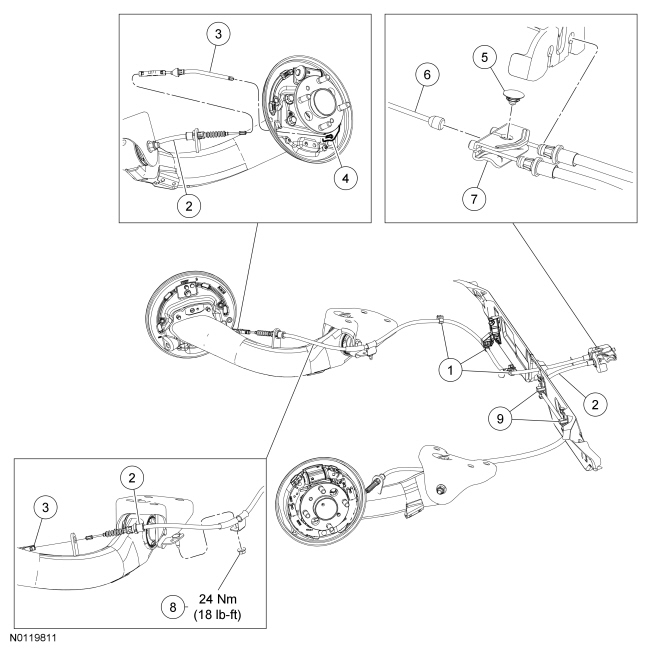

Parking Brake Cables

NOTICE: Use care when releasing the RH rear parking brake cable from the plastic brackets or damage to the brackets may occur.

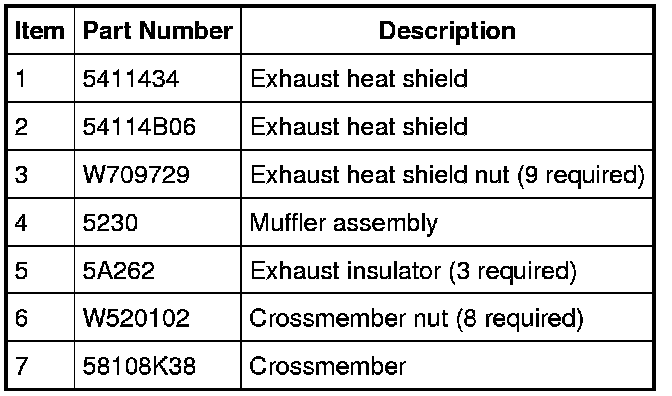

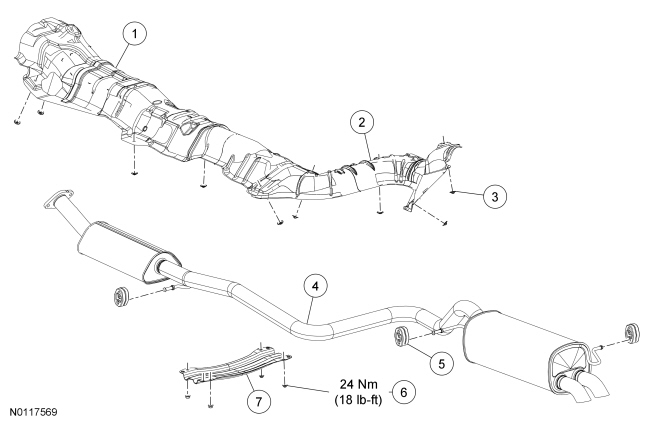

Heat Shields, Exhaust System and Crossmember
