Radiator

Radiator and Cooling Fan - Exploded View

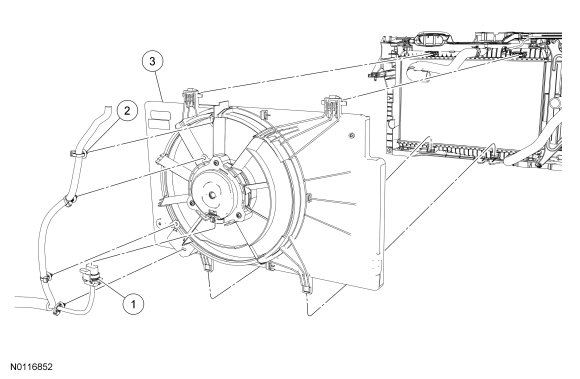

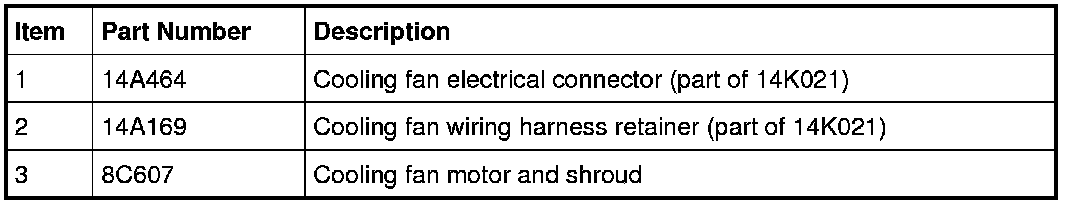

Cooling Fan Motor and Shroud

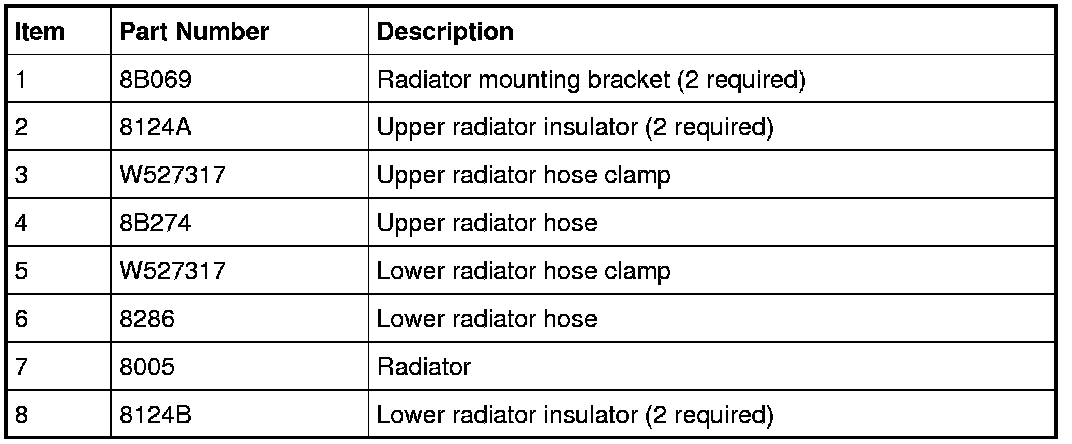

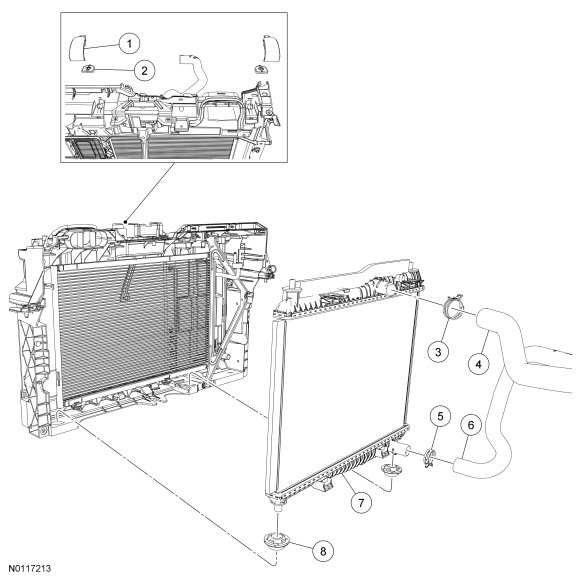

Radiator and Hoses










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
