Interior Lighting Module: Service and Repair

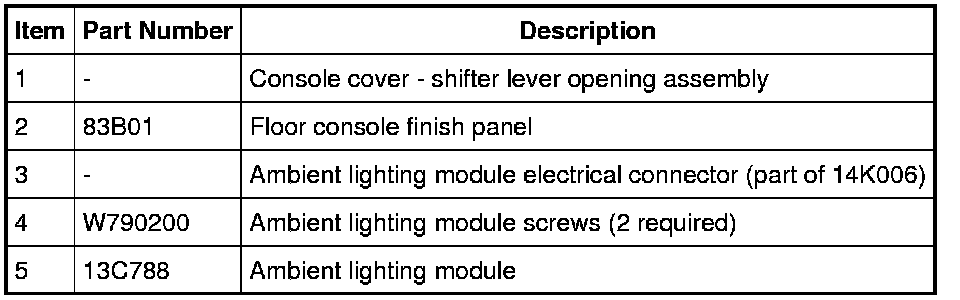

Ambient Lighting Module









Removal and Installation

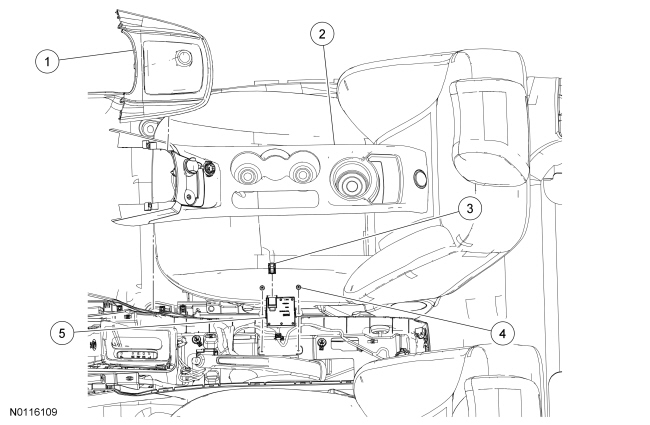

1. Remove the floor console finish panel for access to the ambient lighting module.
- Lift upward on the rear of the floor console finish panel to release the floor console finish panel clips.

- If equipped, disconnect the electrical connector.

- Slide the park brake lever boot and the floor console finish panel over the park brake lever.
