Engine Ignition Components - Exploded View

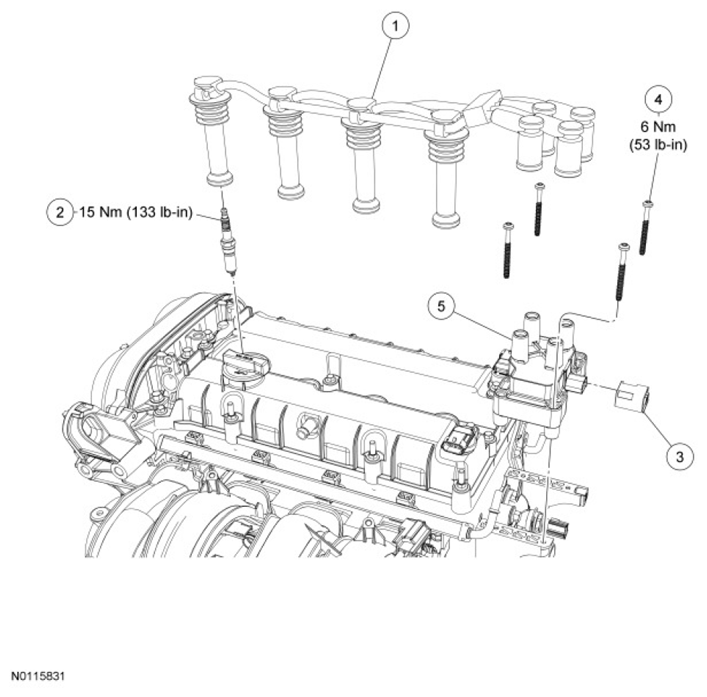

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications
G06939117Courtesy of FORD MOTOR CO.
Item Part Number Description
1 12280 Spark plug wire (4 required)
2 12405 Spark plug (4 required)
3 - Ignition coil electrical connector (part of 14A464)
4 W713210 Ignition coil bolt (4 required)
5 12029 Ignition coil
  1. Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
