Auxiliary Climate Control Assembly

Auxiliary Climate Control Assembly

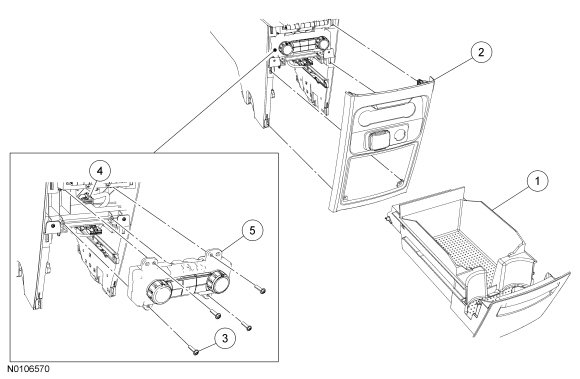

Removal and Installation

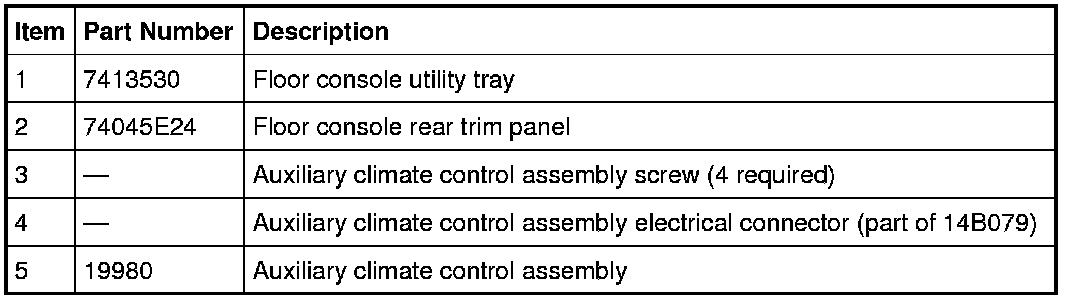

1. Remove the floor console utility tray.

2. Detach the 6 floor console rear trim panel clips and remove the floor console rear trim panel.
- Disconnect the electrical connectors.


3. Remove the 4 auxiliary climate control assembly screws.

4. Disconnect the auxiliary climate control assembly electrical connector and remove the auxiliary climate control assembly.

5. To install, reverse the removal procedure.
