Master window control switch: Schematic

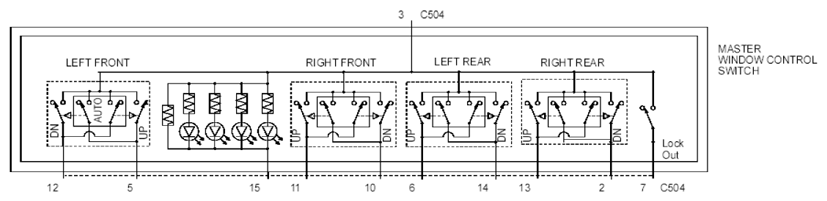

Fig 1: Master Window Control Switch Schematic Diagram
G07905734Courtesy of FORD MOTOR CO.
