Brake Shift Interlock Override

NOTE: If it is necessary to use the override procedure to move the selector lever out of the PARK position, it is possible that a fuse has blown. GO to Pinpoint Test A .

WARNING: This vehicle is equipped with a brake shift interlock feature that prevents the selector lever from being moved out of PARK when the ignition is in the ON position unless the brake pedal is pressed.
If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is pressed:

Apply the parking brake and remove the ignition key.
Remove the selector lever trim ring.

Fig 1: Location of Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
Lift upward and open the storage compartment lid.
Lift upward on the rear of the upper console finish panel and remove the upper console finish panel.

Fig 2: Location of Floor Console Finish Panel
Courtesy of FORD MOTOR CO.

NOTE: Selector lever in DRIVE position for clarity.

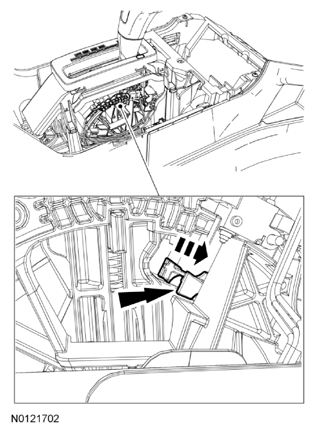

Fig 3: Pushing Brake Shift Interlock Override Mechanism On Selector Lever Forward

Courtesy of FORD MOTOR CO.

Position the selector lever in NEUTRAL.
- From the right side of the selector lever.
- Using a suitable tool, push the brake shift interlock override mechanism on the selector lever forward.
- Apply the brake.
- Press the button on the selector lever and position the selector lever in NEUTRAL.
Install the floor console finish panel.

Fig 4: Location of Floor Console Finish Panel
Courtesy of FORD MOTOR CO.
Install the selector lever trim ring.

Fig 5: Location of Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
Start the vehicle.
