Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> C310B Restraints Control Module (RCM)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

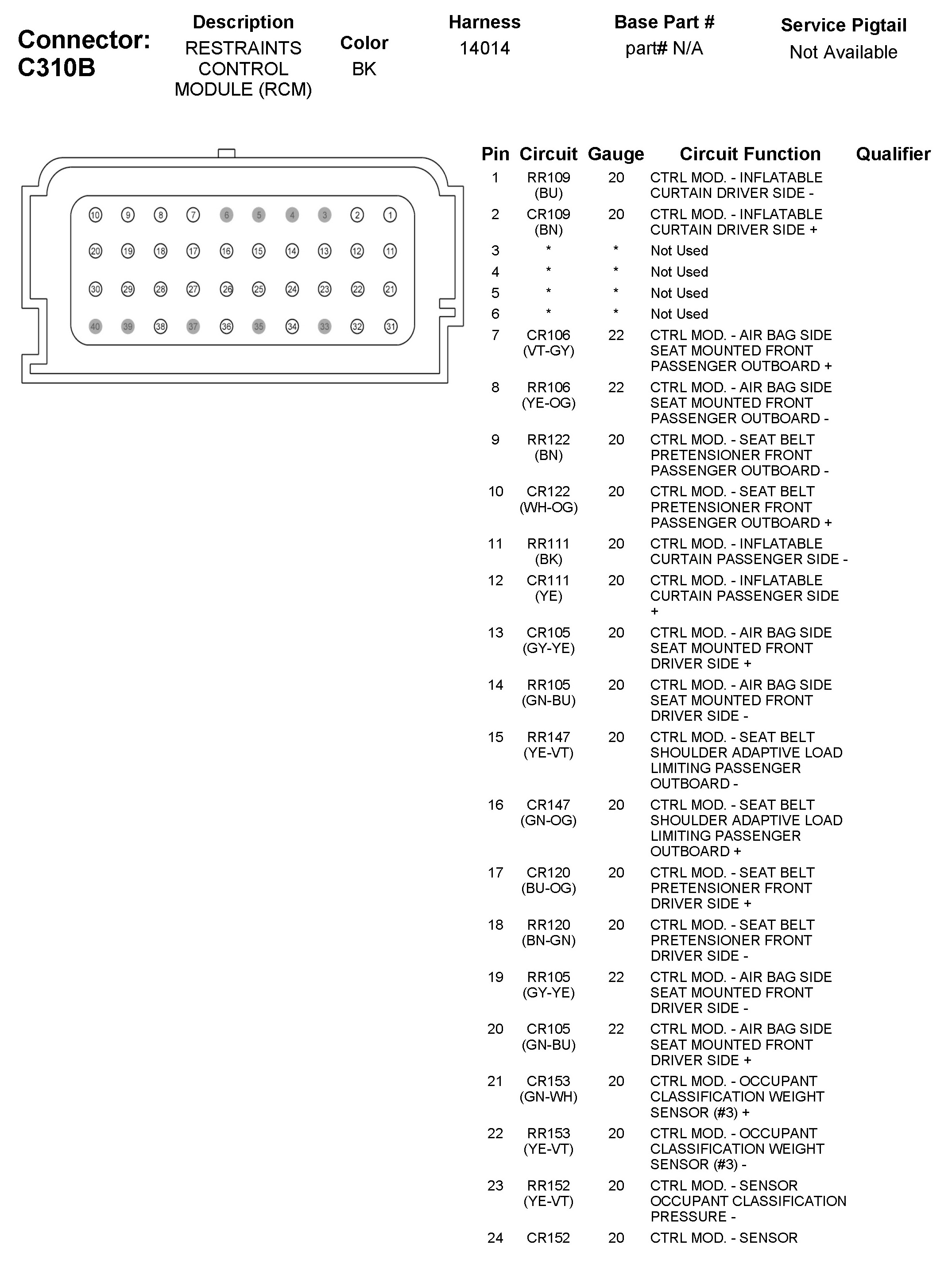

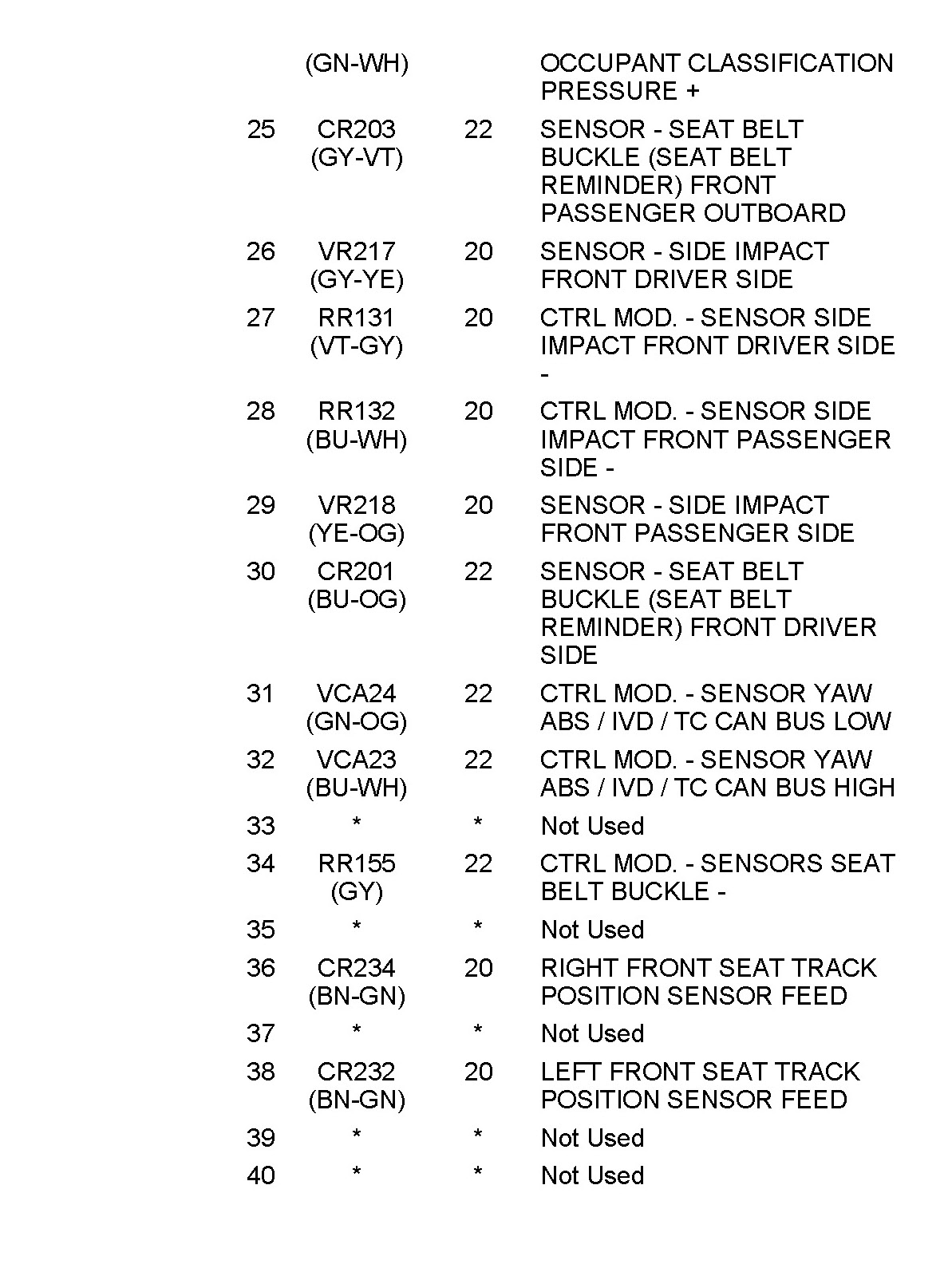

C310B Restraints Control Module (RCM)
