C1463B Power Steering Control Module (PSCM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

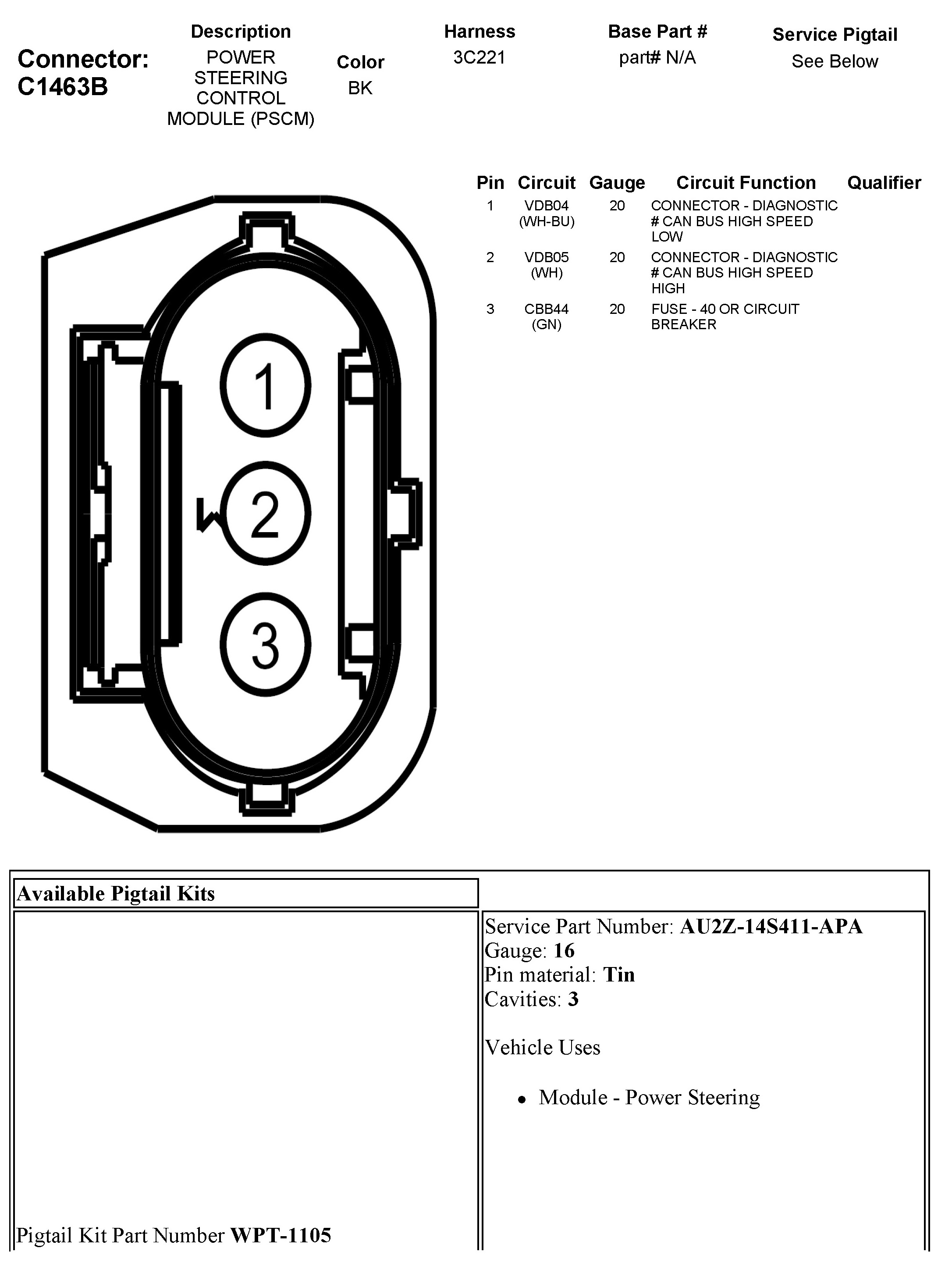

C1463B Power Steering Control Module (PSCM)
