Air Filter Element

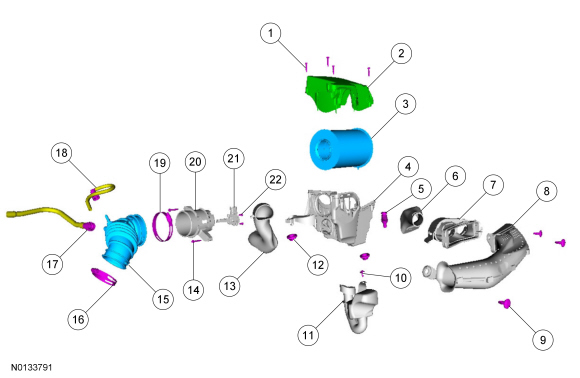

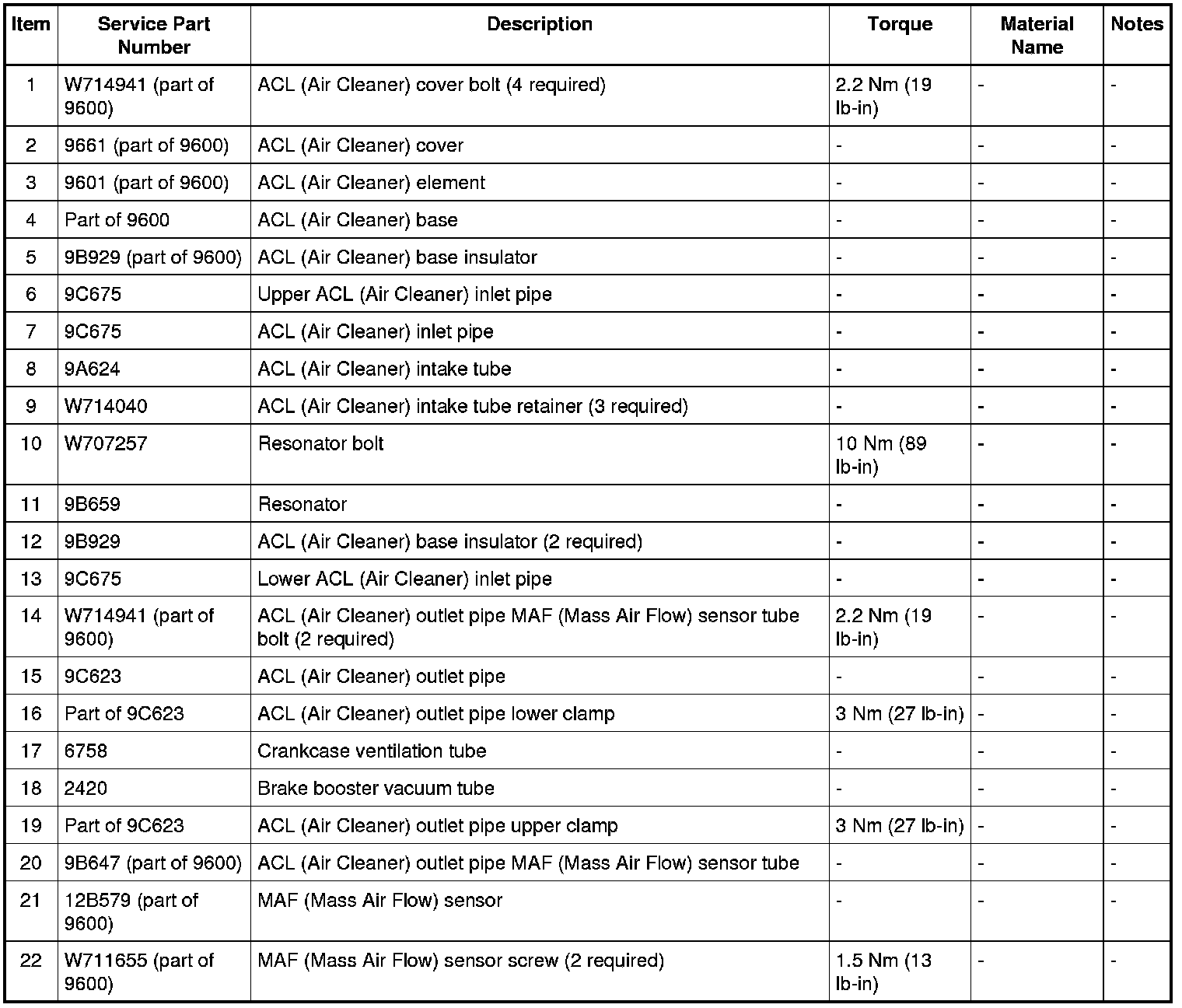

Intake Air System Components - Exploded View

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Exploded View

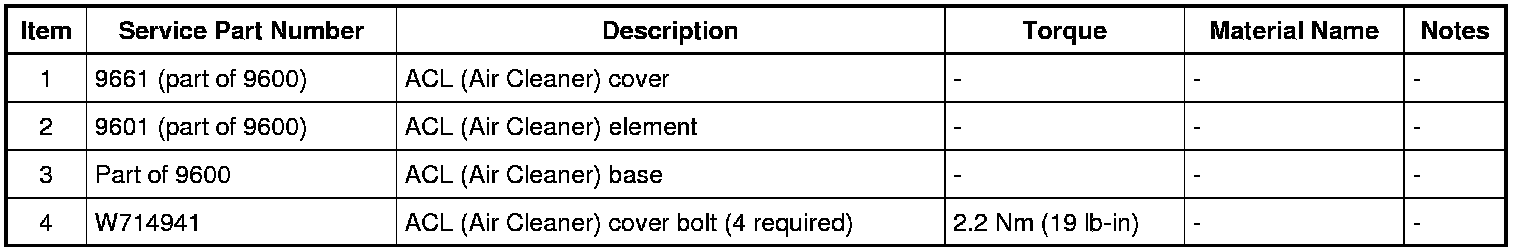

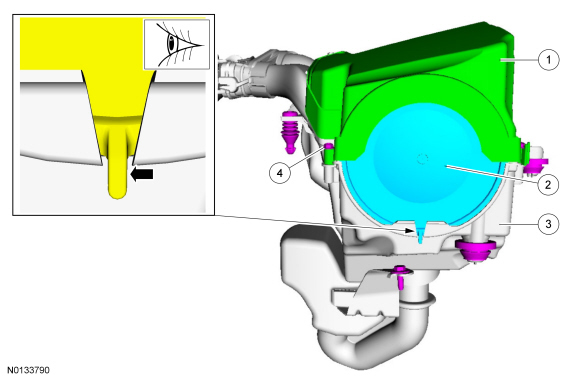

ACL (Air Cleaner) Assembly - 2.0L Non-PZEV Shown, PZEV Similar









ACL (Air Cleaner) Element
