Climate Control - EMTC
Control Components - Exploded View
WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

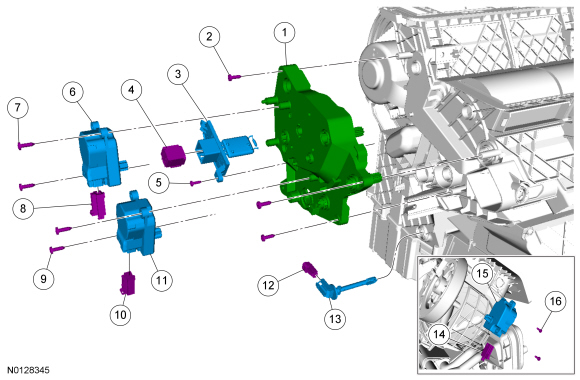

Exploded View
Heater Core and Evaporator Core Housing Control Components -LH (Left Hand) Side
