Fog/Driving Lamp: Service and Repair

Fog Lamp

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

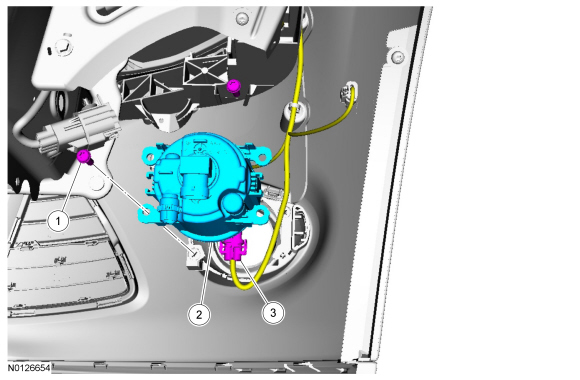

Exploded View










Removal

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. Remove the front fender splash shield. REFER to Fender Splash Shield .

2. Disconnect the fog lamp electrical connector.

3. Remove the 2 fog lamp assembly screws and remove the fog lamp assembly.

Installation

1. Install the fog lamp assembly and install the 2 fog lamp assembly screws.

2. Connect the fog lamp assembly electrical connector.

3. Install the front fender splash shield. REFER to Fender Splash Shield .
