Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> C652A Passenger Door Module (PDM)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

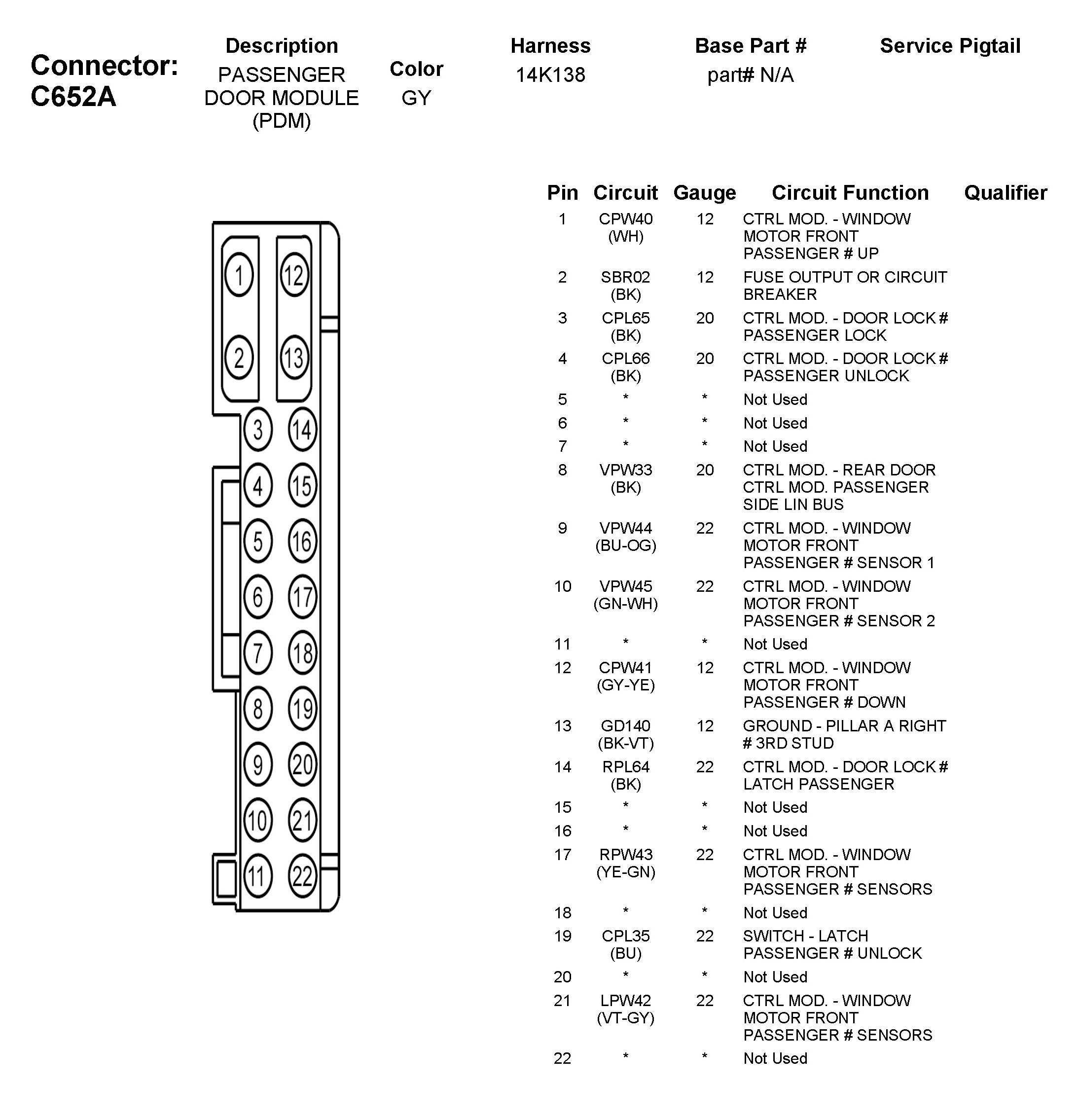

C652A Passenger Door Module (PDM)
