Fuel Level Sensor: Service and Repair

Fuel Level Sender

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

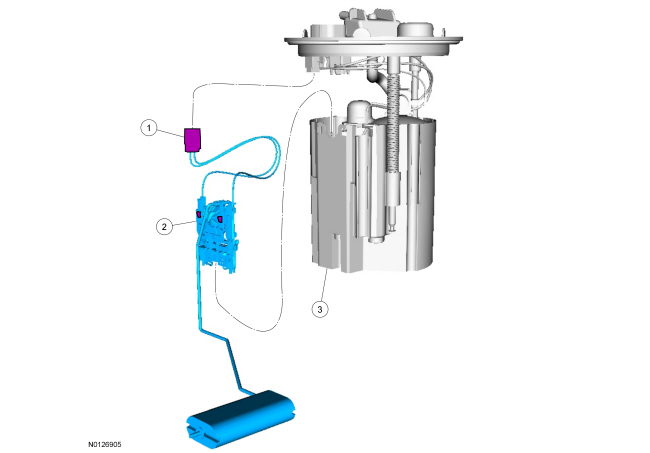

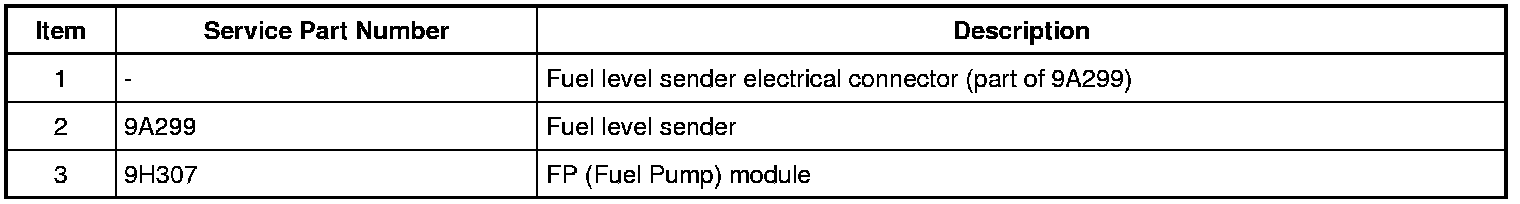

Exploded View

Fuel Level Sender










Removal

1. Remove the FP (Fuel Pump) assembly. REFER to Fuel Pump Assembly .

2. Disconnect the fuel level sender electrical connector. Depress the lock tabs and slide the fuel level sender upwards, and remove the sender from the FP (Fuel Pump) assembly.





Installation

1. To install, reverse the removal procedure.
